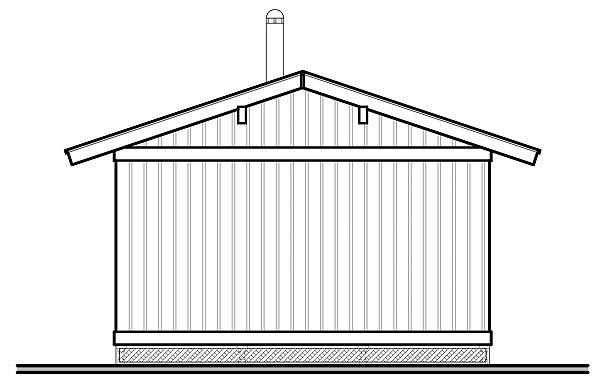

Front Option 2 Option 3 Option 4 Rear First level
© copyright by designer

Plan: 1493

Plan Specification
Total Square Footage: 540
Main Level: 540
Bedrooms: 2
Baths: 1 Half: 0
Garages: 0
Width/Depth: 18 ft / 30 ft
Pin It
© copyright by designer
First level:
First level



Similar plans: 1490, 1492, 1491, 1489
More plans by this designer/architect
ShareThis
Add to Favorites
Purchase Plans
PLAN DESCRIPTION Activity area including kitchenette, table area and a few chairs and also a space for a wood stove. Rest area including shower, simple beds and bunk beds.
TODAY ONLY! TAKE $50 OFF YOUR PLAN PACKAGE OF $500 OR MORE! see details
House Plan Pricing
$460.00
$490.00
$640.00
$640.00
$1,210.00
More details about our plan packages
Foundation Options
$0.00
Additional Plan Options
$50.00
$85.00
$150.00
Best Price Guarantee, learn more
Live Chat  |  Email
Key Features
• Covered Front Porch
• None
• Slab
• Suited for narrow lot
• Suited for view lot
Plan Details
General House Information
1
Number of Stories:
18' 0"
Width:
30' 0"
Depth:
Single
Dwelling Number:
None
Bonus Access:
Exterior Style
Beach
Cottage
Lake
Number of Rooms
2
Bedrooms:
1
Full Baths:
Finished Square Footage
540 Sq. Ft.
Main Level:
540 Sq. Ft.
Total:
GARAGE
None
Garage Location:
0
Garage Size:
House And Ceiling Heights
8'-2"
First Floor Ceiling:
13' 2"
Maximum House Height:
Framing Information
Truss
Roof Framing:
2x4
Exterior Wall Framing:
Roof Pitch
4
Primary:
Roof Load
55
Live:
20
Dead:
Insulation (R)
20
Exterior Wall:
0
Interior Wall:
28
Ceiling:
28
Floor:
Number of Rooms
2
Bedrooms:
1
Full Baths:
