Plan Specification: HHF-1614

Total Square Footage: 1,803

Main Level: 1,718

Lower Level: 85

Bedrooms: 3

Baths: 2

Garages: 2

Width: 54 ft Depth: 34 ft

Foundation: WALK OUT BASEMENT


Pricing Options Click here...

Main Plan Photo
© copyright by designer

Plan: HHF-1614

A Triple radius window is the focal point of this split foyer design. A cathedral ceiling in the living area peaks above a fireplace opposite the radius windows and the railing of the foyer stairs allows the light from the radius window over the front door to be a part of the living areas view. An open over-sized kitchen has room for a small island but is shown open to the breakfast area with its bay window, which allows for access to the back deck. The formal dining room is the highlight of your view from the foyer featuring a pair of French doors on the rear wall allowing access to the same rear deck. The lower level allows for a 4th bedroom and future playroom expanding the plans overall potential size to over 2300 sq. ft. The three-car garage is the best part of this drive under design. The third bay can also be used as a workshop area.

ShareThis
Black Friday Pre-Sale, 10% off House Plans! see details

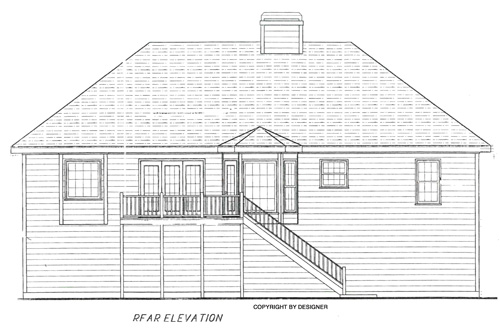

Additional Images

Get Your House Plans In Minutes!

NEW PDFs Now! Plan packages available. Simply place your order, electronically sign the license agreement, and receive your PDFs within minutes in your inbox!
Plan Pricing Packages
HOUSE PLAN SETS

 PDF BID SET    $625.00
 PDF THD Exclusive Product   PDFs Now!   $975.00
FOUNDATION OPTIONS

 WALK OUT BASEMENT  $0.00
ADDITIONAL PLAN OPTIONS

 Materials List  $60.00
 New Foundation Type  $300.00
 Conversion to 2 x 6 Walls  $200.00
 Right Read Reverse  $250.00
 Prints size 11x17  $10.00
 Full Size Prints  $25.00
 Plan Modifications  $400.00
PROMOTIONAL ITEMS

 Custom Adult T-shirt  $25.00
Size:
Color:
Best Price Guarantee, learn more
For more details about our plan packages click here



Email Us   Call Us   Live Chat

Key Features
  • 2 Story Volume
  • Basement
  • Country Kitchen
  • Daylight Basement
  • Deck
  • Dining Room
  • Double Vanity Sink
  • Drive-under
  • Family Room
  • Fireplace
  • Foyer
  • Laundry 1st Fl
  • Master Bdrm Main Floor
  • No Porch
  • Nook / Breakfast Area
  • Open Floor Plan
  • Separate Tub and Shower
  • Split Bedrooms
  • Unfinished Space
  • Vaulted Ceilings
  • Walk-in Closet
  • Walkout Basement
Need to make changes?
Call for a free modification quote
877-895-5299
or use this quote form
Architect's Preferred Products:
ULTREX® Fiberglass Windows & Doors
Decorative Millwork and Columns
Classic-Craft® American Collection™ Fiberglass Entry Door
Prefinished Hardwood Flooring
Decorative Window Treatments

© copyright by designer
Floor Plan:





© copyright by designer
Lower Level:

Top

Plan Details

General House Information
Number of Stories:1.5
Width:54' 0"
Depth:34' 0"
Dwelling Number:Single

Exterior Style
  • Traditional
  • European
  • PDFs Fast!

Number of Rooms
Bedrooms:3
Full Baths:2

Finished Square Footage
Main Level:1718 Sq. Ft.
Lower Level:85 Sq. Ft.
Total: 1803 Sq. Ft.

Unfinished Square Footage
Garage:983 Sq. Ft.
Deck:192 Sq. Ft.
Bonus Room:483 Sq. Ft.

Garage
  • Garage Type:
Garage Size:2


Foundation
  • WALK OUT BASEMENT

House And Ceiling Heights
First Floor Ceiling:8
Maximum House Height:27' 0"

Framing Information
Roof Framing:Stick
Exterior Wall Framing:2x4

Roof Pitch
Primary:9/12
Gable:9/12

Roof Load
Live:20
Dead:10

INSULATION
  • Per IRC Climate Zones

Number of Rooms
Bedrooms:3
Full Baths:2
