Plan Specification: HHF-1716

Total Square Footage: 2,700

Main Level: 1,892

Second Level: 808

Bedrooms: 3

Baths: 2        Half: 1

Garages: 2

Width: 39 ft Depth: 75 ft

Foundation: Slab, if shown as a standard option


Pricing Options Click here...

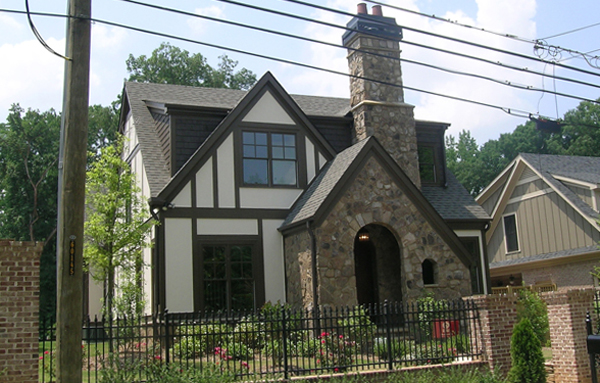

Main Plan Photo
© copyright by designer

Plan: HHF-1716

At less than 40 ft. wide, this Tudor cottage is ideal for narrow lot communities.

The master suite, located on the first floor, provides all that is needed for the empty nester to age in place.

An open keeping room provides casual living space adjacent to the open kitchen, while the front of the house keeps the formal elements still desired by the move down market.

The loft at the top of the stairs offers the perfect extra getaway for any visitors who might come to stay, whether it be grandchildren or good friends.

The secondary bedrooms enjoy private entrances, but share a bath that is accessible from each room.

ShareThis

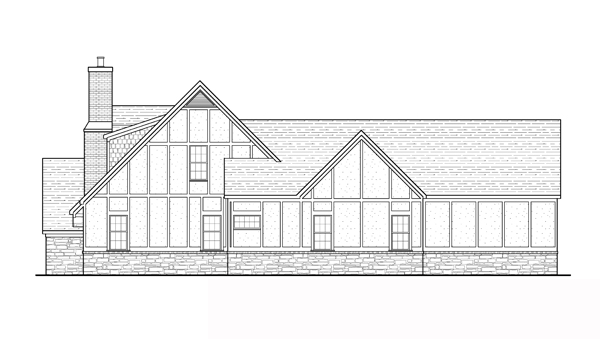

Additional Images

Plan Pricing Packages
HOUSE PLAN SETS

 PDF BID SET    $825.00
 PDF THD Exclusive Product    $1,100.00
FOUNDATION OPTIONS

 Slab, if shown as a standard option  $0.00
ADDITIONAL PLAN OPTIONS

 New Foundation Type  $350.00
 Right Read Reverse  $250.00
 Conversion to 2 x 6 Walls  $225.00
 Prints size 11x17  $10.00
 Full Size Prints  $30.00
 Plan Modifications  $400.00
PROMOTIONAL ITEMS

 Custom Adult T-shirt  $25.00
Size:
Color:
Best Price Guarantee, learn more
For more details about our plan packages click here



Email Us   Call Us   Live Chat

Key Features
  • Attached
  • Covered Front Porch
  • Dining Room
  • Double Vanity Sink
  • Family Room
  • Fireplace
  • Formal LR
  • His and Hers Master Closets
  • Kitchen Island
  • Laundry 1st Fl
  • Loft / Balcony
  • Master Bdrm Main Floor
  • Open Floor Plan
  • Rear-entry
  • Separate Tub and Shower
  • Slab
  • Split Bedrooms
  • Storage Space
  • Unfinished Space
  • Vaulted Ceilings
  • Walk-in Closet
  • Walk-in Pantry
Need to make changes?
Call for a free modification quote
877-895-5299
or use this quote form

© copyright by designer
First Floor:





© copyright by designer
Second Floor:

Top

Plan Details

General House Information
Number of Stories:2
Width:39' 6"
Depth:75' 6"
Dwelling Number:Single
Bonus Access:2nd Floor

Exterior Style
  • European
  • Cottage

Number of Rooms
Bedrooms:3
Full Baths:2
Half Baths:1

Finished Square Footage
Main Level:1892 Sq. Ft.
Upper Level: 808 Sq. Ft.
Total: 2700 Sq. Ft.

Unfinished Square Footage
Garage:408 Sq. Ft.
Porch:56 Sq. Ft.
Patio:283 Sq. Ft.

Garage
  • Garage Type:
Garage Size:2


Foundation
  • Slab, if shown as a standard option

House And Ceiling Heights
First Floor Ceiling:10
Second Floor Ceiling:8
Maximum House Height:29' 0"

Framing Information
Roof Framing:Stick
Exterior Wall Framing:2x4

Roof Pitch
Primary:12/12
Gable:14/12
Dormer:4/12

Roof Load
Live:20
Dead:10

INSULATION
  • Per IRC Climate Zones

Number of Rooms
Bedrooms:3
Full Baths:2
Half Baths:1
