Plan Specification: HHF-1774

Total Square Footage: 2,005

Main Level: 1,567

Lower Level: 438

Bedrooms: 3

Baths: 3

Garages: 3

Width: 39 ft Depth: 48 ft

Pricing Options Click here...

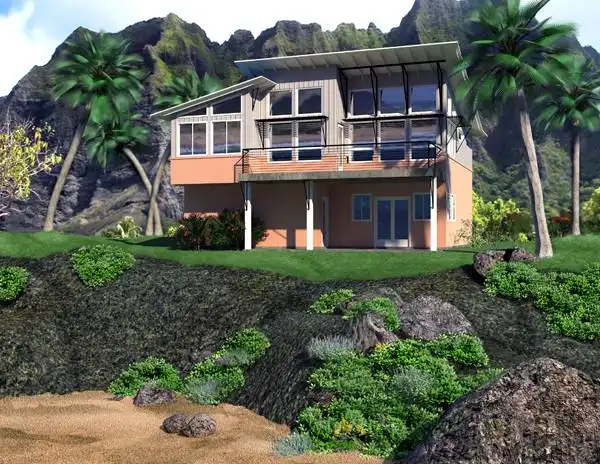

Main Plan Photo
© copyright by designer

Plan: HHF-1774

Picture yourself enjoying the view from the decks of the Waimea, because with its main living spaces on the second floor this home truly is designed for a view. The second floor boasts an efficient and open space with the Master Bedroom situated to the wonderful view and includes a walk-in shower. The lower floor is about fun with plenty of storage for vacation toys.

$50 off any House Plan through midnight tonight! see details

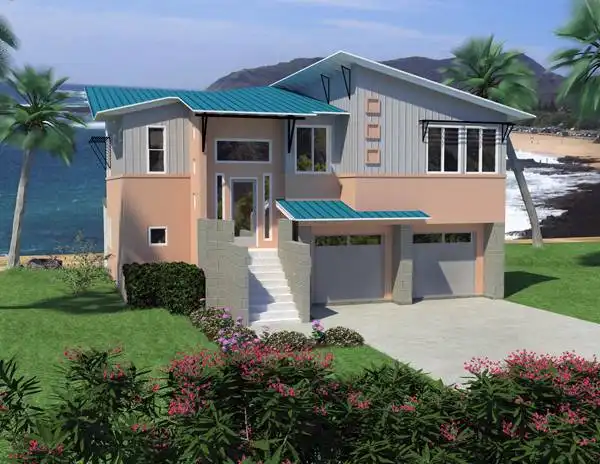

Additional Images

Plan Pricing Packages

 FiveSets    $595.00
 Eight Sets    $655.00
 Vellum set & 1 Bond set    $935.00
 PDF Plan Package    $935.00
 Cad File    $1,595.00

 Custom Adult T-shirt  $25.00
Best Price Guarantee, learn more
For more details about our plan packages click here

Email Us   Call Us   Live Chat
Key Features
  • Attached
  • Crawlspace
  • Deck/Patio
  • Family Room
  • Library/Media Rm
  • Master Bdrm Main Floor
  • Master Suite
  • Rec Room
  • Slab
  • Storage
  • Tandem
  • View
  • Walk-in Closet
Need to make changes?
Call for a free modification quote
or use this quote form
Architect's Preferred Products:
ULTREX® Fiberglass Windows & Doors
Decorative Millwork and Columns
Classic-Craft® American Collection™ Fiberglass Entry Door
Prefinished Hardwood Flooring
Decorative Window Treatments
10% off ALL online house plan packages! Promo Code: Thanks2011

© copyright by designer

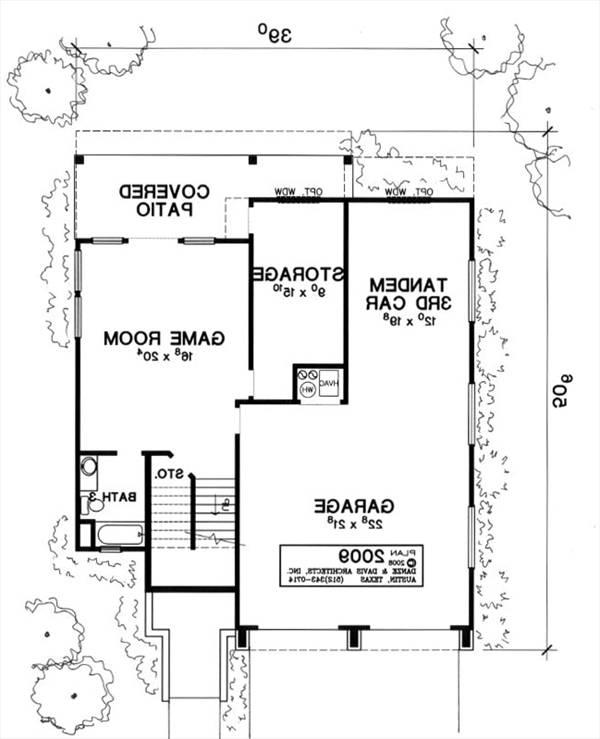

First Floor Plan:

© copyright by designer

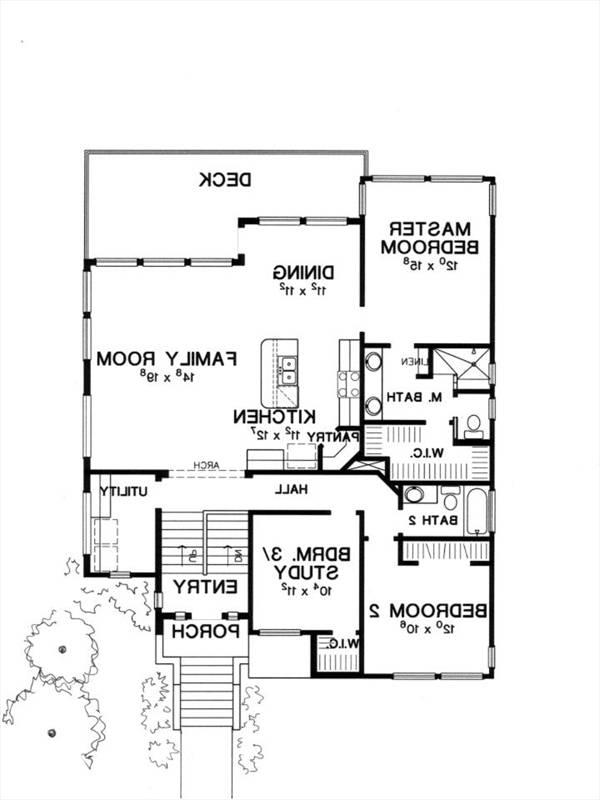

Second Floor Plan:

Plan Details
General House Information
Number of Stories:2
Width:39' 0"
Depth:48' 2"
Dwelling Number:Single
Bonus Access:None
Exterior Style
  • Beach
  • Modern
  • Contemporary
  • Vacation
  • Siding
  • Stucco
Number of Rooms
Full Baths:3
Finished Square Footage
Main Level:1567 Sq. Ft.
Lower Level:438 Sq. Ft.
Total: 2005 Sq. Ft.
Unfinished Square Footage
Garage:992 Sq. Ft.
Porch:38 Sq. Ft.
Deck:232 Sq. Ft.
Patio:183 Sq. Ft.
  • Garage Type:
Garage Size:3
House And Ceiling Heights
First Floor Ceiling:9
Second Floor Ceiling:9/Slope
Maximum House Height:27' 4"
Framing Information
Roof Framing:Stick
Exterior Wall Framing:2x4 or 2x6
Roof Pitch
Roof Load
  • Per IRC Climate Zones
Number of Rooms
Full Baths:3
