Plan Specification: HHF-2764

Total Entire Building: 2,928

Total Living Per Unit: 1,464

Main Level: 655

Second Level: 809

Bedrooms: 3

Baths: 2        Half: 1

Garages: 2

Width: 30 ft Depth: 42 ft

Foundation: Basement, Crawlspace


Pricing Options Click here...

Main Plan Photo
© copyright by designer

Plan: HHF-2764

Not a typical multi-family structure, this design is both visually appealing and designed for great livability. Its mixture of horizontal wood siding and brick complement multi-pane windows and solid porch columns. Convenient features inside dominate the identical units of the duplex. Begin with a front-facing garage that shields living spaces from street noise. Then proceed inside to find a commodious floor plan with a great room, dining room and kitchen on the main level and three bedrooms on the upper level. The great room features a nine-foot ceiling; the dining room has outdoor access and is light-filled. A coat closet and under-stair storage are found in the entry hall. A half-bath graces the service entry to the garage.


ShareThis

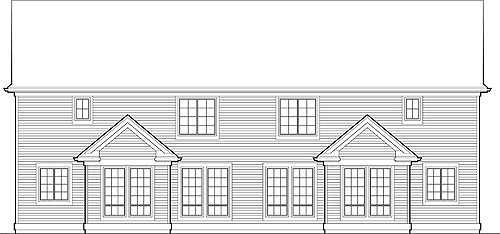

Additional Images

Plan Pricing Packages
HOUSE PLAN SETS

 Basic Package    $1,000.00
 Construction Package    $1,100.00
 Modification Package: PDF    $1,495.00
 Modification Package: CAD    $2,300.00
FOUNDATION OPTIONS

 Crawlspace  $0.00
 Basement  $325.00
ADDITIONAL PLAN OPTIONS

 Additional Sets  $40.00
 Full Reverse Sets  $100.00
PROMOTIONAL ITEMS

 Custom Adult T-shirt  $25.00
Size:
Color:
Best Price Guarantee, learn more
For more details about our plan packages click here



Email Us   Call Us   Live Chat

Key Features
  • 2 Story Volume
  • Attached
  • Basement
  • Country Kitchen
  • Crawlspace
  • Dining Room
  • Double Vanity Sink
  • Fireplace
  • Foyer
  • Front Porch
  • Great Room
  • Laundry 2nd Fl
  • Master Bdrm Upstairs
  • Open Floor Plan
  • Storage Space
  • Walk-in Closet
  • Walk-in Pantry
Need to make changes?
Call for a free modification quote
877-895-5299
or use this quote form
Architect's Preferred Products:
ULTREX® Fiberglass Windows & Doors
Decorative Millwork and Columns
Classic-Craft® American Collection™ Fiberglass Entry Door
Prefinished Hardwood Flooring
Decorative Window Treatments

© copyright by designer
First Floor Plan:





© copyright by designer
Second Floor Plan:

Top

Plan Details

General House Information
Number of Stories:2
Width:30' 0"
Depth:42' 0"
Dwelling Number:Duplex
Bonus Access:None

Exterior Style
  • Traditional
  • Contemporary

Number of Rooms
Bedrooms:3
Full Baths:2
Half Baths:1

Finished Square Footage
Main Level:655 Sq. Ft.
Upper Level: 809 Sq. Ft.
Total: 1464 Sq. Ft.

Unfinished Square Footage
Garage:411 Sq. Ft.

Garage
Garage Type:Attached
Garage Size:2


Foundation
  • Basement
  • Crawlspace

House And Ceiling Heights
First Floor Ceiling:9
Second Floor Ceiling:8
Maximum House Height:30' 0"

Framing Information
Roof Framing:Truss
Exterior Wall Framing:2x6

Roof Pitch
Primary:10/12

Roof Load
Live:25
Dead:15
Wind:80

INSULATION
  • Per IRC Climate Zones

Number of Rooms
Bedrooms:3
Full Baths:2
Half Baths:1
