Plan Specification: HHF-2770

Total Entire Building: 3,054

Total Living Per Unit: 1,527

Main Level: 637

Second Level: 890

Bedrooms: 3

Baths: 2        Half: 1

Garages: 1

Width: 18 ft Depth: 61 ft

Foundation: Basement, Crawlspace, Slab


Pricing Options Click here...

Main Plan Photo
© copyright by designer

Plan: HHF-2770

This quaint-looking cottage holds a secret - it is actually two separate, mirror-image units in one structure. Each side has identical floor space, opening from a covered angled entry. The raised foyer holds a half-bath and coat closet, plus stairs to the upper level. Under-stair storage is accessed via the half-bath. A large great room and open kitchen reside to the back of the plan. A nine-foot ceiling, corner fireplace and sliding glass doors to a rear deck make the great room special. A large pantry adds to kitchen storage.


ShareThis
$50 off any House Plan through midnight tonight! see details

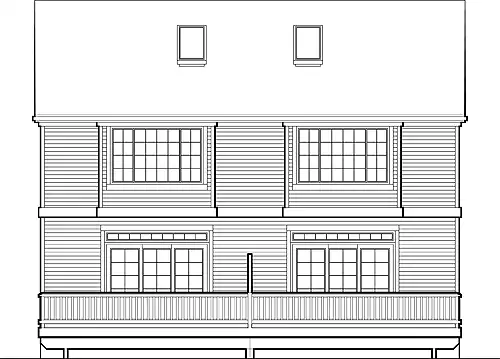

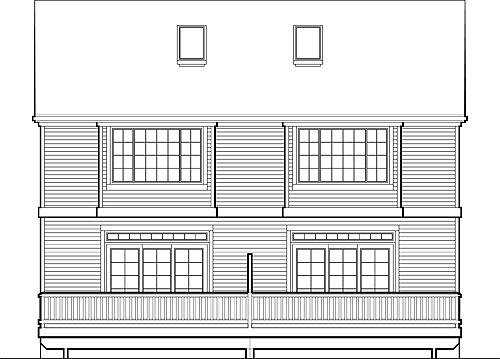

Additional Images

Plan Pricing Packages
HOUSE PLAN SETS

 Basic Package    $1,000.00
 Construction Package    $1,100.00
 Modification Package: PDF    $1,495.00
 Modification Package: CAD    $2,300.00
FOUNDATION OPTIONS

 Crawlspace  $0.00
 Slab  $160.00
 Basement  $325.00
ADDITIONAL PLAN OPTIONS

 Additional Sets  $40.00
 Full Reverse Sets  $100.00
PROMOTIONAL ITEMS

 Custom Adult T-shirt  $25.00
Size:
Color:
Best Price Guarantee, learn more
For more details about our plan packages click here



Email Us   Call Us   Live Chat

Key Features
  • Attached
  • Basement
  • Country Kitchen
  • Crawlspace
  • Dining Room
  • Double Vanity Sink
  • Fireplace
  • Foyer
  • Front Porch
  • Great Room
  • Laundry 2nd Fl
  • Master Bdrm Upstairs
  • Open Floor Plan
  • Peninsula / Eating Bar
  • Slab
  • Storage Space
  • Walk-in Pantry
Need to make changes?
Call for a free modification quote
877-895-5299
or use this quote form
Architect's Preferred Products:
ULTREX® Fiberglass Windows & Doors
Decorative Millwork and Columns
Classic-Craft® American Collection™ Fiberglass Entry Door
Prefinished Hardwood Flooring
Decorative Window Treatments
10% off ALL online house plan packages! Promo Code: Thanks2011

© copyright by designer
First Floor Plan:





© copyright by designer
Second Floor Plan:

Top

Plan Details

General House Information
Number of Stories:2
Width:18' 0"
Depth:61' 0"
Dwelling Number:Duplex
Bonus Access:None

Exterior Style
  • Traditional
  • Craftsman
  • Canada

Number of Rooms
Bedrooms:3
Full Baths:2
Half Baths:1

Finished Square Footage
Main Level:637 Sq. Ft.
Upper Level: 890 Sq. Ft.
Total: 1527 Sq. Ft.

Unfinished Square Footage
Garage:284 Sq. Ft.

Garage
Garage Type:Attached
Garage Size:1


Foundation
  • Basement
  • Crawlspace
  • Slab

House And Ceiling Heights
First Floor Ceiling:9
Second Floor Ceiling:8
Maximum House Height:28' 0"

Framing Information
Roof Framing:Truss
Exterior Wall Framing:2x6

Roof Pitch
Primary:5/12
Gable:7/12

Roof Load
Live:25
Dead:15
Wind:80

INSULATION
  • Per IRC Climate Zones

Number of Rooms
Bedrooms:3
Full Baths:2
Half Baths:1
