Plan Specification: HHF-2776

Total Entire Building: 1,953

Total Living Per Unit: 1,953

Main Level: 1,073

Second Level: 880

Bedrooms: 3

Baths: 2        Half: 1

Garages: 1

Width: 30 ft Depth: 47 ft

Foundation: Crawlspace


Pricing Options Click here...

Main Plan Photo
© copyright by designer

Plan: HHF-2776

Born from architectural elements of English country and Tudor design, this stunning duplex contains gracious living spaces. The two units are mirror-imaged and begin with a recessed entry set back alongside a one-car garage. A study with nine-foot ceiling opens directly off the entry hall, which has a coat closet and half-bath. Step down just a few steps to the two-story great room with fireplace and sliding glass doors to the backyard. An island kitchen and nook with nine-foot ceiling are nearby. Bedrooms and a laundry alcove are on the upper level. The master suite has a tray ceiling, a walk-in closet and a full bath with twin lavatories. Bedrooms 2 and 3 share a full bath.

ShareThis
Treat yourself to 10% off all house plan packages, over $500 see details

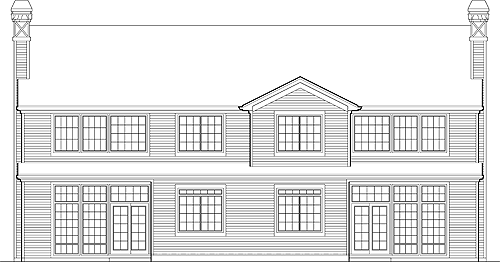

Additional Images

Plan Pricing Packages
HOUSE PLAN SETS

 Basic Package    $1,000.00
 Construction Package    $1,100.00
 Modification Package: PDF    $1,495.00
 Modification Package: CAD    $2,300.00
FOUNDATION OPTIONS

 Crawlspace  $0.00
ADDITIONAL PLAN OPTIONS

 Additional Sets  $40.00
 Full Reverse Sets  $100.00
PROMOTIONAL ITEMS

 Custom Adult T-shirt  $25.00
Size:
Color:
Best Price Guarantee, learn more
For more details about our plan packages click here



Email Us   Call Us   Live Chat

Key Features
  • Attached
  • Crawlspace
  • Double Vanity Sink
  • Fireplace
  • Great Room
  • Laundry 2nd Fl
  • Master Bdrm Upstairs
  • No Porch
  • Nook / Breakfast Area
  • Open Floor Plan
  • Separate Tub and Shower
  • Vaulted Ceilings
  • Walk-in Closet
Need to make changes?
Call for a free modification quote
877-895-5299
or use this quote form
Architect's Preferred Products:
ULTREX® Fiberglass Windows & Doors
Decorative Millwork and Columns
Classic-Craft® American Collection™ Fiberglass Entry Door
Prefinished Hardwood Flooring
Decorative Window Treatments

© copyright by designer
First Floor Plan:





© copyright by designer
Second Floor Plan:

Top

Plan Details

General House Information
Number of Stories:2
Width:30' 0"
Depth:47' 0"
Dwelling Number:Duplex
Bonus Access:None

Exterior Style
  • European
  • French Country
  • Traditional
  • PDFs Fast!

Number of Rooms
Bedrooms:3
Full Baths:2
Half Baths:1

Finished Square Footage
Main Level:1073 Sq. Ft.
Upper Level: 880 Sq. Ft.
Total: 1953 Sq. Ft.

Unfinished Square Footage
Garage:375 Sq. Ft.

Garage
Garage Type:Attached
Garage Size:1


Foundation
  • Crawlspace

House And Ceiling Heights
First Floor Ceiling:VARIES
Second Floor Ceiling:8
Maximum House Height:30' 0"

Framing Information
Roof Framing:Truss
Exterior Wall Framing:2x6

Roof Pitch
Primary:6/12
Gable:14/12

Roof Load
Live:25
Dead:15
Wind:0

INSULATION
Exterior Wall:21
Interior Wall:0
Ceiling:38
Floor:30

Number of Rooms
Bedrooms:3
Full Baths:2
Half Baths:1
