Plan Specification: HHF-2838

Total Square Footage: 504

Garages: 1

Width: 30 ft Depth: 24 ft

Foundation: Concrete Slab Foundation


Pricing Options Click here...

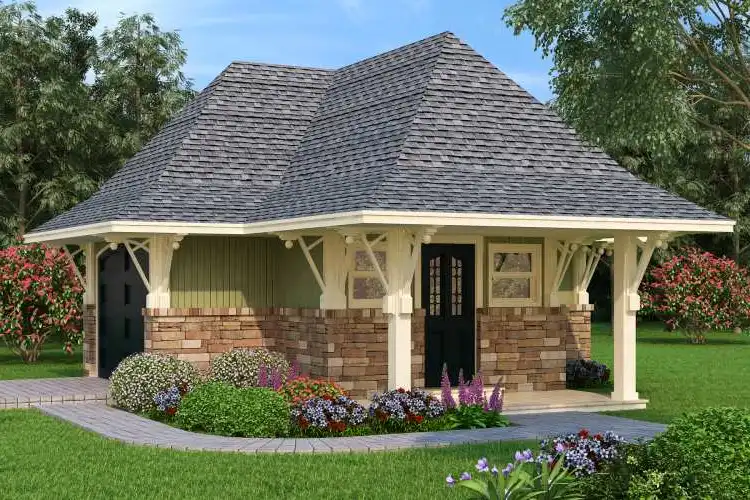

Main Plan Photo
© copyright by designer

Plan: HHF-2838

Great for the auto enthusiast or the weekend hobbyist, this workshop/garage has all the amenities needed to provide hours of enjoyment. The workshop area has twin work benches, fluorescent lighting and an entry porch. The center bay garage is oversized for larger vehichles and it has an adjoining storage room.

ShareThis
Additional Images

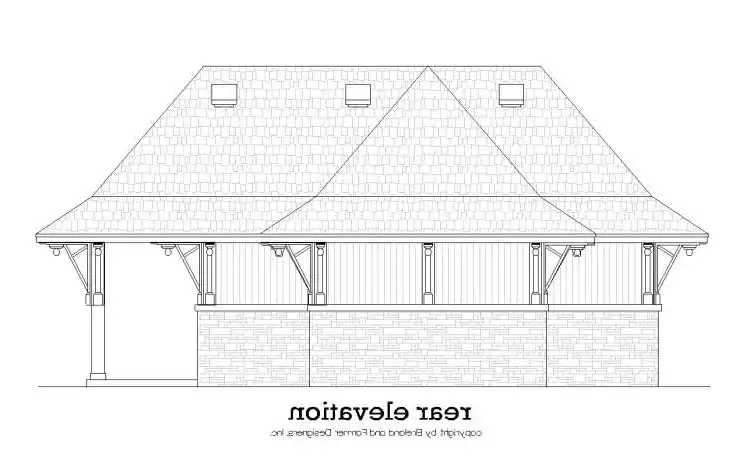

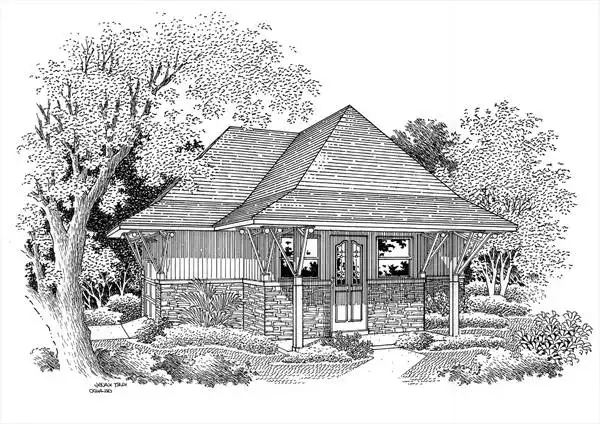

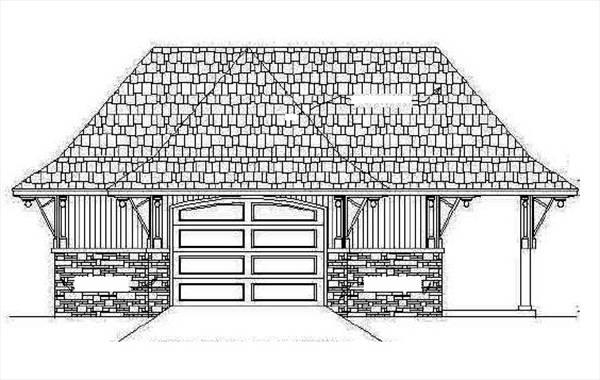

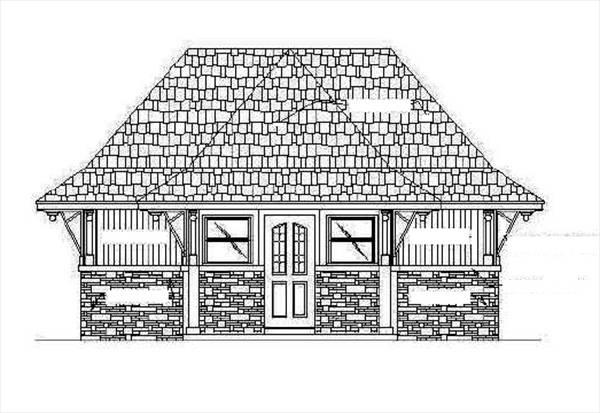

See all 5 photos and rear view
Plan Pricing Packages
HOUSE PLAN SETS
 PDF BID SET  $280.00
 1 set  $284.00
 4 sets  $304.00
 8 sets  $334.00
 12 sets  $374.00
 Reproducible Set  $454.00
 PDF Construction Set - 1 Build  $454.00
 Cad Files  $908.00
FOUNDATION OPTIONS
 Concrete Slab Foundation  $0.00
ADDITIONAL PLAN OPTIONS
 Additional Sets  $50.00
 Full Reverse Plans  $100.00
 Mirror Reverse Set  $60.00
PROMOTIONAL ITEMS
 Custom Adult T-shirt  $25.00
Size:
Color:
Best Price Guarantee, learn more
For more details about our plan packages click here



Email Us   Call Us   Live Chat

Key Features
  • Slab
Need to make changes?
Call for a free modification quote
877-895-5299
or use this quote form

© copyright by designer

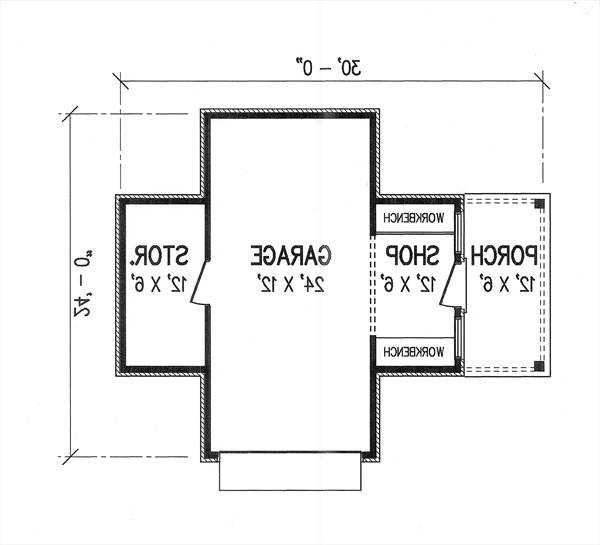

Floor Plan:




Top

Plan Details

General House Information
Width:30' 0"
Depth:24' 0"
Dwelling Number:Garage

Exterior Style
  • Craftsman

Facade
  • Siding
  • Stone

Finished Square Footage
Total: 504 Sq. Ft.

Unfinished Square Footage
Garage:288 Sq. Ft.
Storage:144 Sq. Ft.
Porch:72 Sq. Ft.

Garage
  • Garage Type:
Garage Size:1


Foundation
  • Concrete Slab Foundation

Framing Information
Roof Framing:Stick
Exterior Wall Framing:2x4

Roof Pitch
Primary:14:12
Secondary:8:12

INSULATION
  • Per IRC Climate Zones
Top
