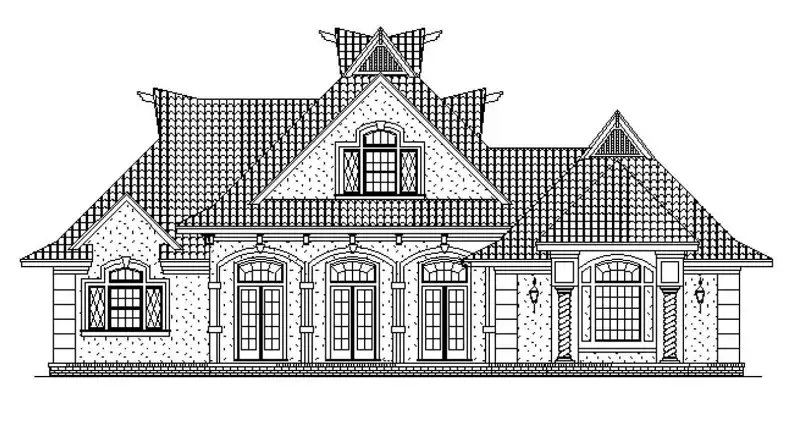

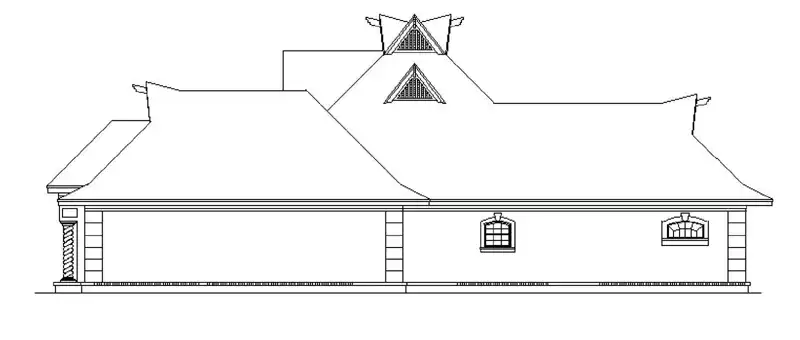

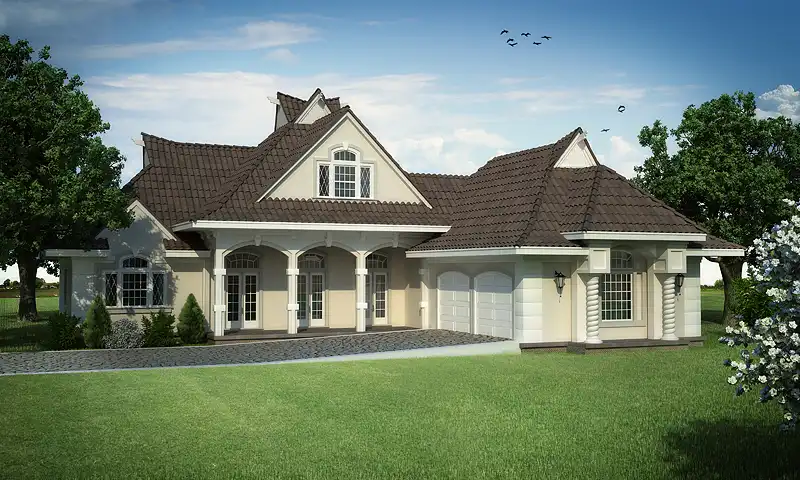

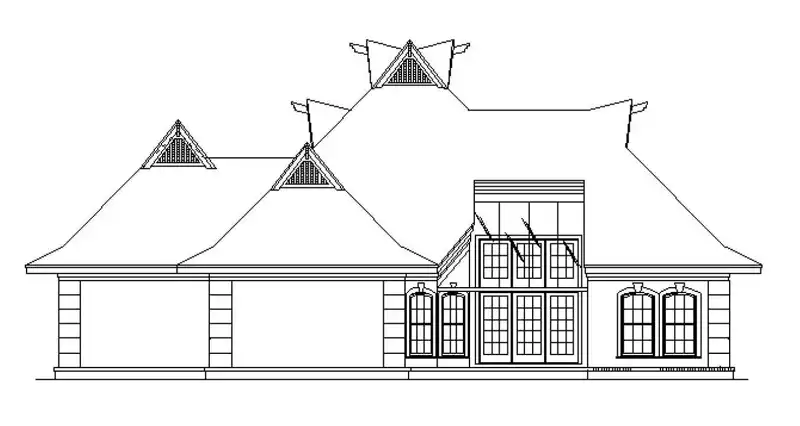

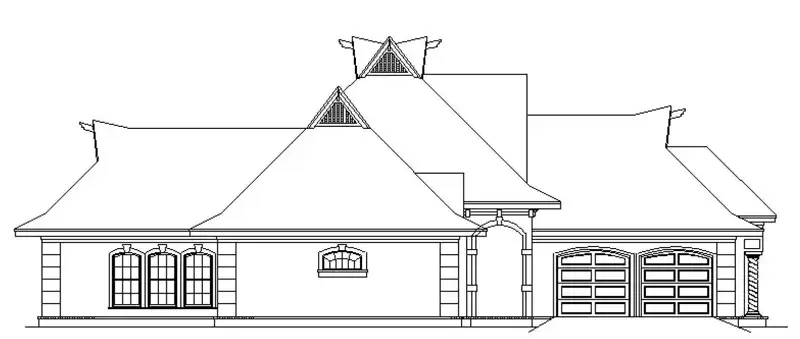

Front Rendering Front Elevation Front Elevation Right Side Elevation Left side elevation Rear Elevation Floor Plan
© copyright by designer

Plan: 3109

Plan Specification
Total Square Footage: 1,651
Main Level: 1,651
Bedrooms: 3
Baths: 2 Half: 1
Garages: 2
Width/Depth: 62 ft / 78 ft
Foundation: Concrete Slab Foundation, Optional Custom Foundation Design
ENERGY STAR APPROVED
Pin It
More plans by this designer/architect
ShareThis
Add to Favorites
Purchase Plans
PLAN DESCRIPTION The intriguing oriental facade of this delightful 3 bed room, 2 bath home insures that everyone will know this is no cookie cutter house. However, it is also very practical due to the super energy efficient design features built into this home including:
1. Insulated doors and windows
2. 2x6 exterior walls with R19 insulation
3. Modified Roof Design to accommodate 12 R38 ceiling insulation
4. Positive vapor barrier to enhance comfort control
5. Small foot print to minimize land cost
6. Properly oriented, this home is designed to provide natural solar gain to help reduce heating cost.
7. New and improved framing techniques that allow previously un-insulated areas to become insulated.
8. All heat/AC ductwork is located within the heated area to maximize efficiency but all the ducts are hidden from view.

A large front porch welcomes your guest to enter into the open and expansive interior that features 12 ceilings in the living, dining and kitchen area. The kitchen is superbly designed and features a large floor to ceiling pantry and an island with eating bar. Just steps away, the utility room and half bath create real convenience for the homemaker. The master suite is designed to provide a sitting area or TV viewing area. The master bath is practical but luxurious offering a spa tub, separate shower, private toiled with linen storage and a spacious walk-in closet. The two secondary bed rooms have a Jack and Jill bath and abundant closet space. Dual linen closets and built in book shelves are neatly tucked into the hallway. Due to the open design and minimum wasted space, this home is surprisingly small but with big amenities and looks.
Get Your House Plans In Minutes!
NEW PDFs Now! Plan packages available. Simply place your order, electronically sign the license agreement, and receive your PDFs within minutes in your inbox!
House Plan Pricing
PDFs Now! $715.00
$719.00
$739.00
$779.00
$829.00
$869.00
PDFs Now! $869.00
$1,738.00
More details about our plan packages
Foundation Options
PDFs Now! available $0.00
Additional Plan Options
$0.00
$50.00
$60.00
$125.00
Best Price Guarantee, learn more
Live Chat  |  Email
Key Features
• Arches
• Attached
• Covered Front Porch
• Covered Rear Porch
• Dining Room
• Double Vanity Sink
• Kitchen Island
• Mud Room
• Nook / Breakfast Area
• Open Floor Plan
• Peninsula / Eating Bar
• Separate Tub and Shower
• Side-entry
• Sitting Area
• Slab
• Split Bedrooms
• Storage Space
• Vaulted Ceilings
• Walk-in Closet
Plan Details
General House Information
1
Number of Stories:
62' 0"
Width:
78' 0"
Depth:
Single
Dwelling Number:
Exterior Style
Contemporary
Facade
Brick
Stucco
Number of Rooms
3
Bedrooms:
2
Full Baths:
1
Half Baths:
Finished Square Footage
1,651 Sq. Ft.
Main Level:
1,651 Sq. Ft.
Total:
Unfinished Square Footage
549 Sq. Ft.
Garage:
96 Sq. Ft.
Storage:
264 Sq. Ft.
Porch:
240 Sq. Ft.
Patio:
GARAGE
Front
Garage Location:
2
Garage Size:
Foundation
Concrete Slab Foundation
Optional Custom Foundation Design
House And Ceiling Heights
12 & 9
First Floor Ceiling:
30' 0"
Maximum House Height:
Framing Information
Stick
Roof Framing:
2x6
Exterior Wall Framing:
Roof Pitch
12:12
Primary:
6:12
Secondary:
12:12
Gable:
Insulation (R)
19
Exterior Wall:
0
Interior Wall:
38
Ceiling:
19
Floor:
Number of Rooms
3
Bedrooms:
2
Full Baths:
1
Half Baths:
