Plan Specification: HHF-3161

Total Square Footage: 2,240

ENERGY STAR

Bedrooms: 3

Baths: 2

Garages: 2

Width: 68 ft Depth: 70 ft

Foundation: Concrete Slab Foundation, Optional Crawl Space Foundation, Optional Custom Foundation Design


Pricing Options Click here...

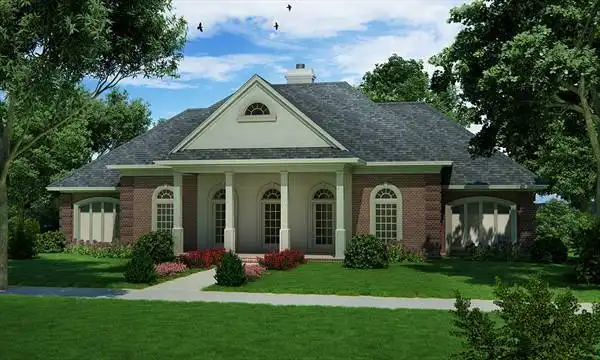

Main Plan Photo
© copyright by designer

Plan: HHF-3161

This home is designed to drastically cut heating and cooling cost but without adding substantial building cost. Among the many energy saving features:
1. Insulated doors and windows
2. 2x6 exterior walls with R19 insulation
3. Modified Roof Design to accommodate 12" thick R38 ceiling insulation
4. Positive vapor barrier to enhance comfort control
5. Centrally located plumbing and heating/AC for added efficiency
6. Properly oriented, this home is designed to provide natural solar gain
7. New and improved framing techniques that allow previously un-insulated areas to become insulated.
8. All heat/AC ductwork is located within the heated area to maximize efficiency but all the ducts are hidden from view.
The plan is packed with luxurious features including 12' ceilings in the master suite, dining room, foyer and front secondary bedroom. The living room and kitchen have sloped ceilings that enhance the open feel. All other rooms have 9' ceilings. The master bath offers a spa roman style tub, his and her walk-in closets, separate shower and a private toilet compartment. The master suite is huge and it has an adjoining office/study with a built in desk.

ShareThis
Additional Images


Get Your House Plans In Minutes!

NEW PDFs Now! Plan packages available. Simply place your order, electronically sign the license agreement, and receive your PDFs within minutes in your inbox!
Plan Pricing Packages
HOUSE PLAN SETS

 PDF BID SET   PDFs Now!   $715.00
 1 set    $719.00
 4 sets    $739.00
 8 sets    $779.00
 12 sets    $829.00
 Reproducible Set    $869.00
 PDF Construction Set - 1 Build   PDFs Now!   $869.00
 Cad Files    $1,738.00
FOUNDATION OPTIONS

 Concrete Slab Foundation PDFs Now! available   $0.00
 Optional Crawl Space Foundation PDFs Now! available   $90.00
 Optional Custom Foundation Design  $400.00
ADDITIONAL PLAN OPTIONS

 ENERGY STAR® Plan Package  $375.00
 Additional Sets  $50.00
 Mirror Reverse Set  $60.00
 FULL REVERSE PLANS ON REQUEST  $125.00
PROMOTIONAL ITEMS

 Custom Adult T-shirt  $25.00
Size:
Color:
Best Price Guarantee, learn more
For more details about our plan packages click here



Email Us   Call Us   Live Chat

Key Features
  • Crawlspace
  • Slab
Need to make changes?
Call for a free modification quote
877-895-5299
or use this quote form
Architect's Preferred Products:
ULTREX® Fiberglass Windows & Doors
Decorative Millwork and Columns
Classic-Craft® American Collection™ Fiberglass Entry Door
Prefinished Hardwood Flooring
Decorative Window Treatments

© copyright by designer
Floor Plan:




Top

Plan Details

General House Information
Number of Stories:1
Width:68' 0"
Depth:70' 0"
Dwelling Number:Single

Exterior Style
  • Southern
  • Country
  • Traditional
  • Builders

Facade
  • Brick

Number of Rooms
Bedrooms:3
Full Baths:2

Finished Square Footage
Total: 2240 Sq. Ft.

Unfinished Square Footage
Garage:484 Sq. Ft.
Storage:72 Sq. Ft.
Porch:344 Sq. Ft.

Garage
  • Garage Type:
Garage Size:2


Foundation
  • Concrete Slab Foundation
  • Optional Crawl Space Foundation
  • Optional Custom Foundation Design

House And Ceiling Heights
First Floor Ceiling:9 & 12
Maximum House Height:28' 0"

Framing Information
Roof Framing:Stick
Exterior Wall Framing:2x6

Roof Pitch
Primary:10:12
Porch:4:12

INSULATION
Exterior Wall:19
Interior Wall:0
Ceiling:38
Floor:19

Number of Rooms
Bedrooms:3
Full Baths:2
