Plan Specification: HHF-3204

Total Square Footage: 825

Main Level: 130

Second Level: 695

Bedrooms: 1

Baths: 1

Garages: 5

Width: 47 ft Depth: 38 ft

Foundation: Slab


Pricing Options Click here...

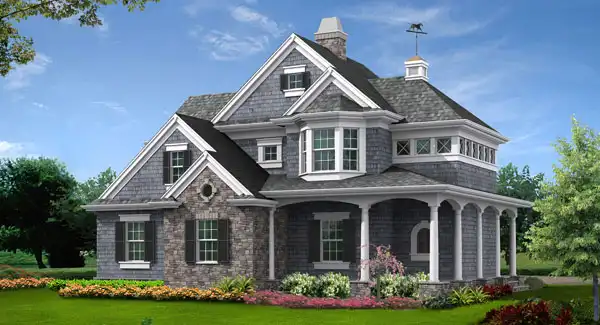

Main Plan Photo
© copyright by designer

Plan: HHF-3204

This Astoria Cottage is the matching playhouse or guesthouse and overflow garage for our popular Astoria plan. A window-lined entry stair tower that leads to an open living/gaming space with a kitchen, laundry, bathroom and private bedroom flanks the oversize five-car tandem garage. The facade has all the charm of the Astoria with its arched wraparound porch, stone and shingle siding and elegant trim.

ShareThis

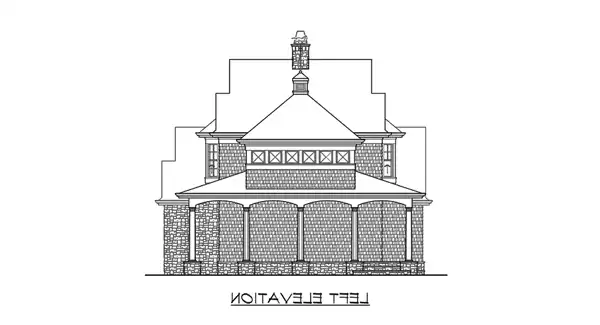

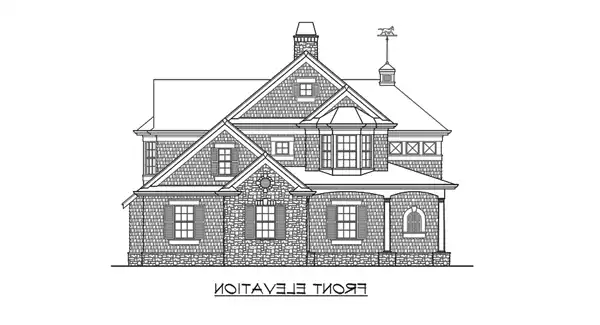

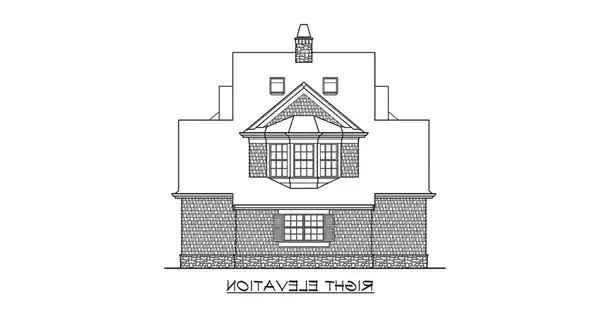

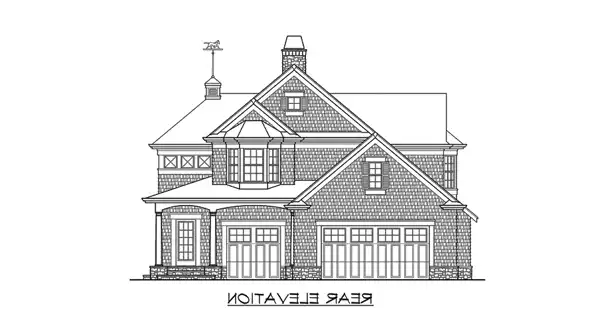

Additional Images


Get Your House Plans In Minutes!

NEW PDFs Now! Plan packages available. Simply place your order, electronically sign the license agreement, and receive your PDFs within minutes in your inbox!
Plan Pricing Packages
HOUSE PLAN SETS

 Five Set Package    $700.00
 Eight Set Package    $800.00
 PDF Files - Single Use License   PDFs Now!   $1,050.00
 Vellums - Single Use License    $1,050.00
 CAD Files - Single Use License    $1,550.00
FOUNDATION OPTIONS

 Slab  $0.00
ADDITIONAL PLAN OPTIONS

 Full Reading Reverse  $150.00
PLAN PRODUCTS

 Additional Sets  $50.00
PROMOTIONAL ITEMS

 Custom Adult T-shirt  $25.00
Size:
Color:

Note: This plan cannot be purchased for construction in Washington State.

Best Price Guarantee, learn more
For more details about our plan packages click here



Email Us   Call Us   Live Chat

Key Features
  • Covered Front Porch
  • Fireplace
  • Open Floor Plan
  • Peninsula / Eating Bar
  • Storage Space
  • Tandem
  • With Living Space
  • Workshop
Need to make changes?
Call for a free modification quote
877-895-5299
or use this quote form
Architect's Preferred Products:
ULTREX® Fiberglass Windows & Doors
Decorative Millwork and Columns
Classic-Craft® American Collection™ Fiberglass Entry Door
Prefinished Hardwood Flooring
Decorative Window Treatments

© copyright by designer

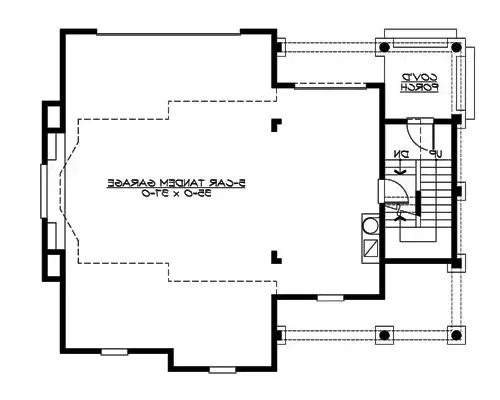

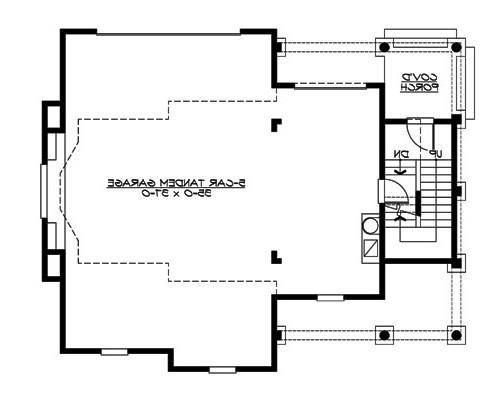

Main Floor:





© copyright by designer

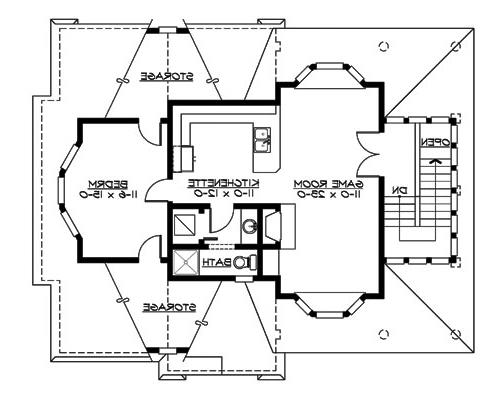

Upper Floor:

Top

Plan Details

General House Information
Number of Stories:2
Width:47' 0"
Depth:38' 0"
Dwelling Number:Single

Exterior Style
  • Farm House
  • Victorian
  • Cottage
  • Vacation

Number of Rooms
Bedrooms:1
Full Baths:1

Finished Square Footage
Main Level:130 Sq. Ft.
Upper Level: 695 Sq. Ft.
Total: 825 Sq. Ft.

Unfinished Square Footage
Garage:1215 Sq. Ft.

Garage
  • Garage Type:
Garage Size:5


Foundation
  • Slab

House And Ceiling Heights
First Floor Ceiling:8
Second Floor Ceiling:10
Maximum House Height:32' 0"

Framing Information
Roof Framing:Truss
Exterior Wall Framing:2x6

Roof Pitch
Primary:10
Secondary:4

Roof Load
Live:25
Dead:15
Wind:85

INSULATION
Exterior Wall:21
Interior Wall:0
Ceiling:38
Floor:30

Number of Rooms
Bedrooms:1
Full Baths:1
