Plan Specification: HHF-3205

Total Square Footage: 1,285

Main Level: 215

Second Level: 1,070

Bedrooms: 1

Baths: 1

Garages: 4

Width: 52 ft Depth: 40 ft

Foundation: Slab


Pricing Options Click here...

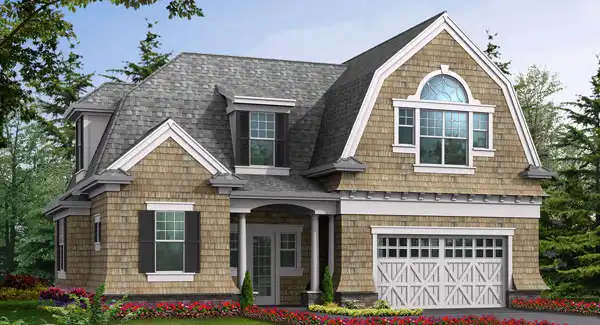

Main Plan Photo
© copyright by designer

Plan: HHF-3205

The Chatham Cottage was designed as a matching guest house with garage and shop for our elegant Chatham plan, but is also a delightful small starter home. Hobbyists will love the four-car tandem garage, storage and shop, while the upper floor can be configured as a spacious 2-bedroom residence or a luxurious studio or home office.

ShareThis

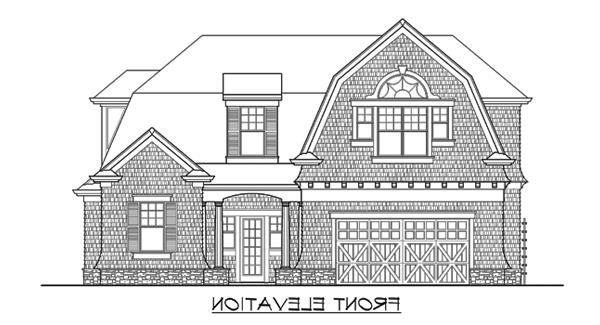

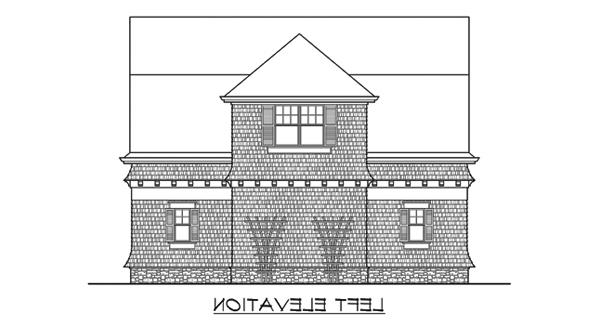

Additional Images


Get Your House Plans In Minutes!

NEW PDFs Now! Plan packages available. Simply place your order, electronically sign the license agreement, and receive your PDFs within minutes in your inbox!
Plan Pricing Packages
HOUSE PLAN SETS

 Five Set Package    $700.00
 Eight Set Package    $800.00
 PDF Files - Single Use License   PDFs Now!   $1,050.00
 Vellums - Single Use License    $1,050.00
 CAD Files - Single Use License    $1,550.00
FOUNDATION OPTIONS

 Slab  $0.00
ADDITIONAL PLAN OPTIONS

 Full Reading Reverse  $150.00
PLAN PRODUCTS

 Additional Sets  $50.00
PROMOTIONAL ITEMS

 Custom Adult T-shirt  $25.00
Size:
Color:

Note: This plan cannot be purchased for construction in Washington State.

Best Price Guarantee, learn more
For more details about our plan packages click here



Email Us   Call Us   Live Chat

Key Features
  • Attached
  • Kitchen Island
  • Open Floor Plan
  • Slab
  • Split Bedrooms
  • Storage Space
  • Tandem
  • With Living Space
  • Workshop
Need to make changes?
Call for a free modification quote
877-895-5299
or use this quote form
Architect's Preferred Products:
ULTREX® Fiberglass Windows & Doors
Decorative Millwork and Columns
Classic-Craft® American Collection™ Fiberglass Entry Door
Prefinished Hardwood Flooring
Decorative Window Treatments

© copyright by designer

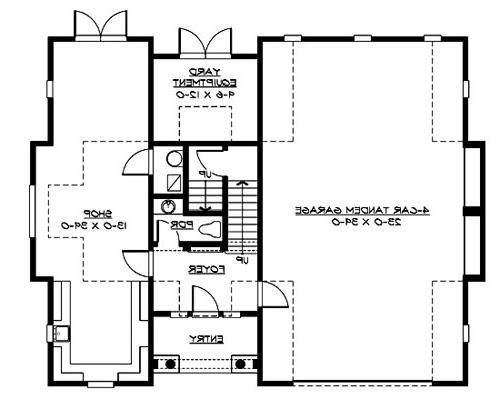

Main Floor:





© copyright by designer

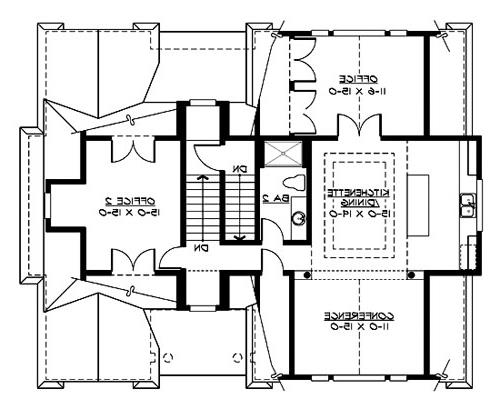

Upper Floor:

Top

Plan Details

General House Information
Number of Stories:2
Width:52' 0"
Depth:40' 0"
Dwelling Number:Garage

Exterior Style
  • Cape Cod
  • Cottage
  • Traditional

Number of Rooms
Bedrooms:1
Full Baths:1

Finished Square Footage
Main Level:215 Sq. Ft.
Upper Level: 1070 Sq. Ft.
Total: 1285 Sq. Ft.

Unfinished Square Footage
Garage:995 Sq. Ft.

Garage
  • Garage Type:
Garage Size:4


Foundation
  • Slab

House And Ceiling Heights
First Floor Ceiling:10
Second Floor Ceiling:9
Maximum House Height:31' 6"

Framing Information
Roof Framing:Truss
Exterior Wall Framing:2x6

Roof Pitch
Primary:10
Secondary:28
Dormer:4

Roof Load
Live:25
Dead:15
Wind:85

INSULATION
Exterior Wall:21
Interior Wall:0
Ceiling:38
Floor:30

Number of Rooms
Bedrooms:1
Full Baths:1
