Plan Specification: HHF-3289

Total Square Footage: 1,926

Main Level: 977

Second Level: 949

Bedrooms: 3

Baths: 2        Half: 1

Garages: 2

Width: 50 ft Depth: 42 ft

Foundation: Crawl Space


Pricing Options Click here...

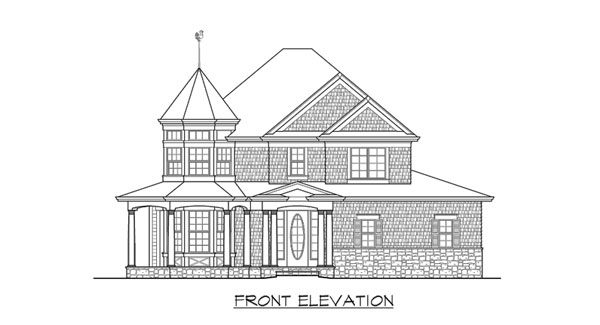

Main Plan Photo
© copyright by designer

Plan: HHF-3289

The Windsor brings a fresh perspective to Victorian style, featuring a striking octagonal turret enclosing a main floor den and upper floor master suite, surrounded by a wraparound front entry porch. The updated floor plan is organized around a large great room with open dining and kitchen spaces. Upstairs are the spacious master suite, two secondary bedrooms, bathroom and convenient laundry.

ShareThis
Additional Images

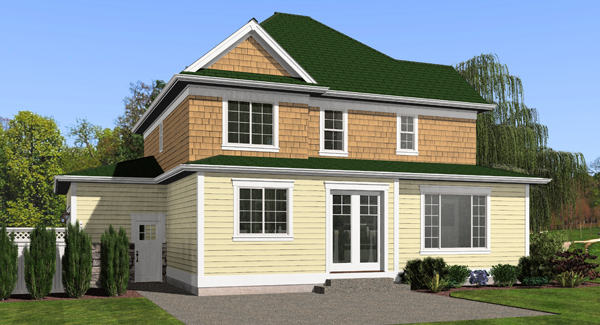

See all 6 photos and rear view
Plan Pricing Packages
HOUSE PLAN SETS
 Study Plan  $595.00
 Five Set Package  $650.00
 Eight Set Package  $695.00
 PDF Files - Single Use License  $895.00
 Vellums - Single Use License  $895.00
 CAD Files - Single Use License  $1,395.00
FOUNDATION OPTIONS
 Crawl Space  $0.00
ADDITIONAL PLAN OPTIONS
 Full Reading Reverse  $125.00
PLAN PRODUCTS
 Additional Sets  $40.00
PROMOTIONAL ITEMS
 Custom Adult T-shirt  $25.00
Size:
Color:
Best Price Guarantee, learn more
For more details about our plan packages click here



Email Us   Call Us   Live Chat

Key Features
  • Covered Front Porch
  • Crawlspace
  • Double Vanity Sink
  • Fireplace
  • Front Porch
  • Great Room
  • His and Hers Master Closets
  • Home Office
  • Kitchen Island
  • Laundry 2nd Fl
  • Master Bdrm Upstairs
  • Nook / Breakfast Area
  • Separate Tub and Shower
  • Side-entry
  • Split Bedrooms
  • Walk-in Closet
Need to make changes?
Call for a free modification quote
877-895-5299
or use this quote form

© copyright by designer
Main Floor:





© copyright by designer
Upper Floor:

Top

Plan Details

General House Information
Number of Stories:2
Width:50' 0"
Depth:42' 0"
Dwelling Number:Single

Exterior Style
  • Victorian

Number of Rooms
Bedrooms:3
Full Baths:2
Half Baths:1

Finished Square Footage
Main Level:977 Sq. Ft.
Upper Level: 949 Sq. Ft.
Total: 1926 Sq. Ft.

Unfinished Square Footage
Garage:481 Sq. Ft.
Porch:467 Sq. Ft.

Garage
  • Garage Type:
Garage Size:2


Foundation
  • Crawl Space

House And Ceiling Heights
First Floor Ceiling:9
Second Floor Ceiling:8
Maximum House Height:31' 0"

Framing Information
Roof Framing:Truss
Exterior Wall Framing:2x6

Roof Pitch
Primary:10
Secondary:16
Porch:4

Roof Load
Live:25
Dead:15
Wind:85

INSULATION
Exterior Wall:21
Interior Wall:0
Ceiling:38
Floor:30

Number of Rooms
Bedrooms:3
Full Baths:2
Half Baths:1
