Plan Specification: HHF-3384

Total Square Footage: 2,063

Main Level: 1,630

Lower Level: 433

Bedrooms: 3

Baths: 2

Garages: 2

Width: 50 ft Depth: 37 ft

Foundation: ICF - Basement (Insul. Conc. Forms), Partial Basement


Pricing Options Click here...

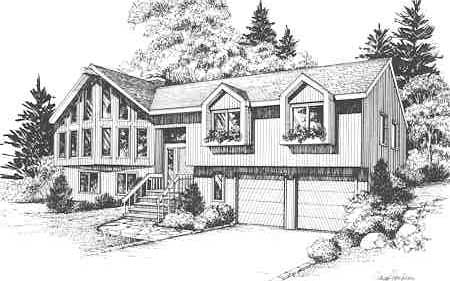

Main Plan Photo
© copyright by designer

Plan: HHF-3384

The raised main level of this exciting home offers exceptional opportunities for picture-perfect views. A see-through fireplace separates the sunken living room and the dining room, and a dramatic vaulted ceiling flows over both rooms. I designed the stunning prow-shaped front of the living room to create a highlight both in and out. The front of the lower level is shown finished and could make for an ideal small studio apartment or recreation room.

ShareThis
Additional Images


Get Your House Plans In Minutes!

NEW PDFs Now! Plan packages available. Simply place your order, electronically sign the license agreement, and receive your PDFs within minutes in your inbox!
Plan Pricing Packages
HOUSE PLAN SETS

 Review Set with Material List    $179.00
 PDF BID SET   PDFs Now!   $645.00
 Upgrade From a Review Set    $656.00
 Four Set Package    $745.00
 Eight Set Package    $835.00
 PDF Construction Set - Single Use   PDFs Now!   $935.00
 Reproducible Vellum Set    $965.00
FOUNDATION OPTIONS

 Partial Basement PDFs Now! available   $0.00
 ICF - Basement (Insul. Conc. Forms)  $150.00
ADDITIONAL PLAN OPTIONS

 Additional Set  $50.00
 Material List (if available)  $75.00
 Mirror Reverse  $50.00
 High Wind Structural Drawings  $150.00
 Multiple Use License (For more than one home)  $250.00
PROMOTIONAL ITEMS

 Custom Adult T-shirt  $25.00
Size:
Color:
Best Price Guarantee, learn more
For more details about our plan packages click here



Email Us   Call Us   Live Chat

Key Features
  • Attached
  • Daylight Basement
  • Dining Room
  • Double Vanity Sink
  • Drive Under Garage
  • Drive-under
  • Expandable
  • Fireplace
  • Formal Dining Room
  • Foyer
  • Front Porch
  • Great Room
  • Laundry 1st Fl
  • Master Bdrm Main Floor
  • Master Suite
  • Rec Room
  • Storage Space
  • Vaulted Ceilings
  • Walkout Basement
Need to make changes?
Call for a free modification quote
877-895-5299
or use this quote form
Architect's Preferred Products:
ULTREX® Fiberglass Windows & Doors
Decorative Millwork and Columns
Classic-Craft® American Collection™ Fiberglass Entry Door
Prefinished Hardwood Flooring
Decorative Window Treatments

© copyright by designer
First Floor Plan:





© copyright by designer
Lower Level:

Top

Plan Details

General House Information
Number of Stories:2
Width:50' 0"
Depth:37' 0"
Dwelling Number:Single

Exterior Style
  • Modern
  • Contemporary
  • Concrete
  • Mountain

Facade
  • Owner's Choice
  • OwnersChoice
  • OwnersChoice

Number of Rooms
Bedrooms:3
Full Baths:2

Finished Square Footage
Main Level:1630 Sq. Ft.
Lower Level:433 Sq. Ft.
Total: 2063 Sq. Ft.

Unfinished Square Footage
Garage:510 Sq. Ft.

Garage
Garage Type:Attached
Garage Size:2


Foundation
  • ICF - Basement (Insul. Conc. Forms)
  • Partial Basement

House And Ceiling Heights
First Floor Ceiling:8'-1"
Maximum House Height:25' 0"

Framing Information
Roof Framing:Stick
Exterior Wall Framing:2x4

Roof Pitch
Primary:4: 12
Secondary:9: 12

Roof Load
Live:30
Dead:10

INSULATION
Exterior Wall:13
Interior Wall:0
Ceiling:30
Floor:19

Number of Rooms
Bedrooms:3
Full Baths:2
