Plan Specification: HHF-3548

Total Square Footage: 1,019

Main Level: 811

Second Level: 208

Bedrooms: 2

Baths: 2

Garages: 0

Width: 34 ft Depth: 28 ft

Foundation: Concrete Slab Foundation, Optional Basement Foundation, Optional Crawl Space Foundation


Pricing Options Click here...

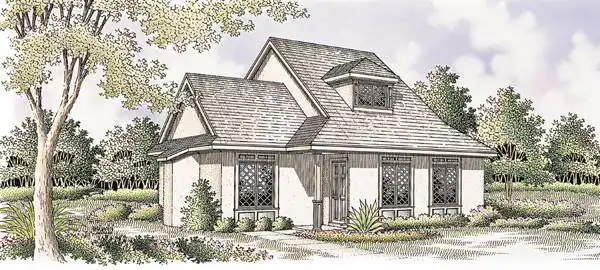

Main Plan Photo
© copyright by designer

Plan: HHF-3548

While cozy and compact, this design proves that small can be beautiful and comfortable as well. A covered entry porch leads into the spacious living and dining rooms which flow together for plenty of entertaining space. The living room's two-story-high ceiling shows off the balcony above. The open, walk-through kitchen extends an angled serving counter to the living and dining rooms. A laundry closet and an outside storage area are nearby. The master suite is a quiet retreat, complete with a bayed sitting area. Other features include a walk-in closet and private access to the hall bath. Upstairs, a roomy balcony/bedroom has its own bath and offers views into the living room below. An optional garage plan is available upon request.

ShareThis
Additional Images


Get Your House Plans In Minutes!

NEW PDFs Now! Plan packages available. Simply place your order, electronically sign the license agreement, and receive your PDFs within minutes in your inbox!
Plan Pricing Packages
HOUSE PLAN SETS

 PDF BID SET   PDFs Now!   $570.00
 1 set    $574.00
 4 sets    $594.00
 8 sets    $654.00
 12 sets    $704.00
 Reproducible Set    $754.00
 PDF Construction Set - 1 Build   PDFs Now!   $754.00
 Cad Files    $1,508.00
FOUNDATION OPTIONS

 Concrete Slab Foundation PDFs Now! available   $0.00
 Optional Basement Foundation PDFs Now! available   $90.00
 Optional Crawl Space Foundation PDFs Now! available   $90.00
ADDITIONAL PLAN OPTIONS

 Additional Sets  $50.00
 Materials List PDFs Now! available   $70.00
 Materials List (additional sets are available)  $15.00
 Mirror Reverse Set  $60.00
 Optional Garage Plan  $100.00
PROMOTIONAL ITEMS

 Custom Adult T-shirt  $25.00
Size:
Color:
Best Price Guarantee, learn more
For more details about our plan packages click here



Email Us   Call Us   Live Chat

Key Features
  • Front Porch
  • None
Need to make changes?
Call for a free modification quote
877-895-5299
or use this quote form
Architect's Preferred Products:
ULTREX® Fiberglass Windows & Doors
Decorative Millwork and Columns
Classic-Craft® American Collection™ Fiberglass Entry Door
Prefinished Hardwood Flooring
Decorative Window Treatments

© copyright by designer

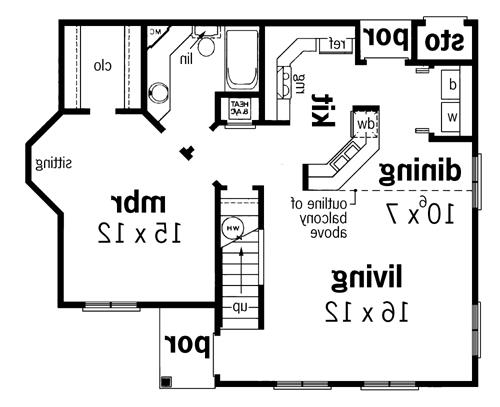

First Floor Plan:





© copyright by designer

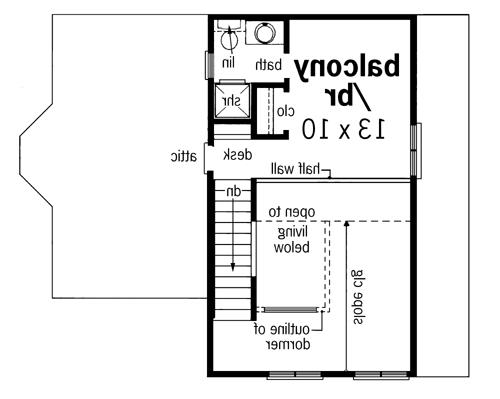

Second Floor Plan:


© copyright by designer

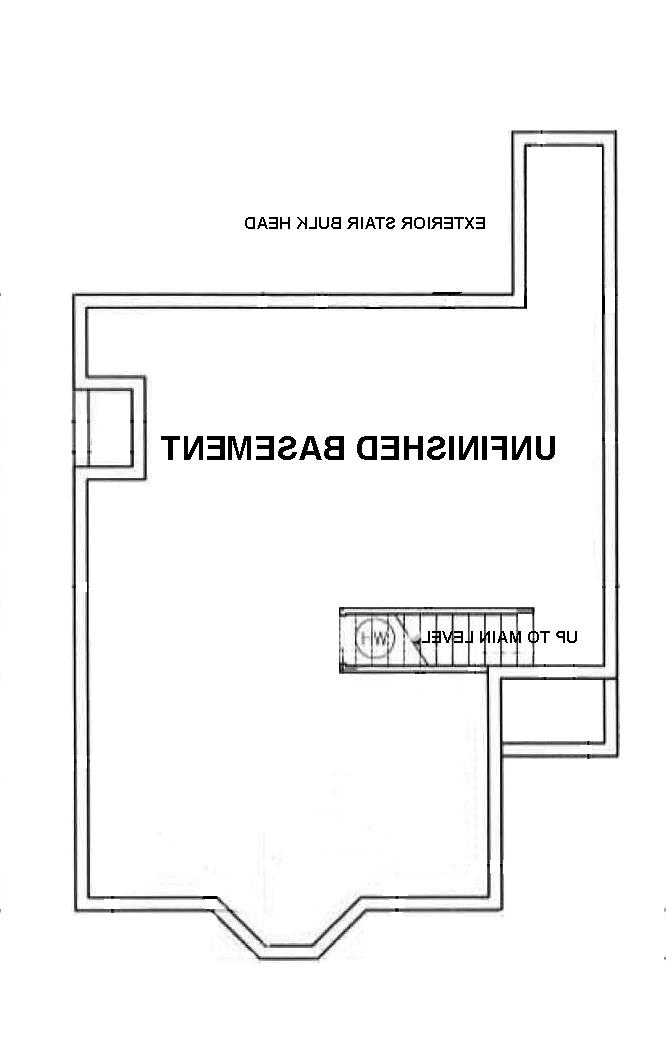

Optional Basement Foundation:

Top

Plan Details

General House Information
Number of Stories:2
Width:34' 6"
Depth:28' 0"
Dwelling Number:Single
Bonus Access:2nd Floor

Exterior Style
  • Traditional
  • Beach
  • Cottage
  • European
  • Florida
  • Vacation

Facade
  • Stucco

Number of Rooms
Bedrooms:2
Full Baths:2

Finished Square Footage
Main Level:811 Sq. Ft.
Upper Level: 208 Sq. Ft.
Total: 1019 Sq. Ft.

Unfinished Square Footage
Storage:15 Sq. Ft.
Porch:36 Sq. Ft.

Garage
Garage Type:None
Garage Size:0


Foundation
  • Concrete Slab Foundation
  • Optional Basement Foundation
  • Optional Crawl Space Foundation

House And Ceiling Heights
First Floor Ceiling:8
Second Floor Ceiling:8
Maximum House Height:25' 0"

Framing Information
Roof Framing:Stick
Exterior Wall Framing:2x4

Roof Pitch
Primary:8/12

Roof Load
Live:20
Dead:10

INSULATION
Exterior Wall:11
Interior Wall:0
Ceiling:19
Floor:19

Number of Rooms
Bedrooms:2
Full Baths:2
