Plan Specification: HHF-3550

Total Square Footage: 1,266

Main Level: 1,266

Bedrooms: 3

Baths: 2

Garages: 1

Width: 40 ft Depth: 64 ft

Foundation: Crawl Space Foundation, Optional Concrete Slab Foundation, Optional Custom Foundation Design


Pricing Options Click here...

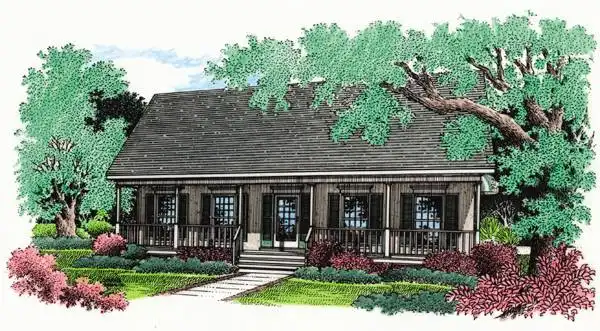

Main Plan Photo
© copyright by designer

Plan: HHF-3550

This home was designed to solve two rather difficult requirements Make the home look large and stately with a grand front porch but fit on a very narrow site. As a starting point, the garage is in the rear and in the very center in order to minimize the amount of side yard taken up by driveway turn-a-round and to hide the garage from the front facade. With a bit of twist to the interior, the size of the rooms are maximized while creating a very functional interior. Designed with a full array of energy efficient features, including 6 exterior walls, the core location of the hallway makes efficient use of the interior space too.

ShareThis

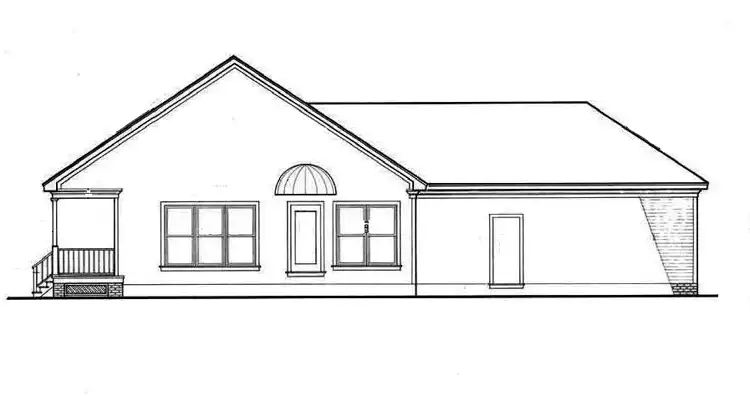

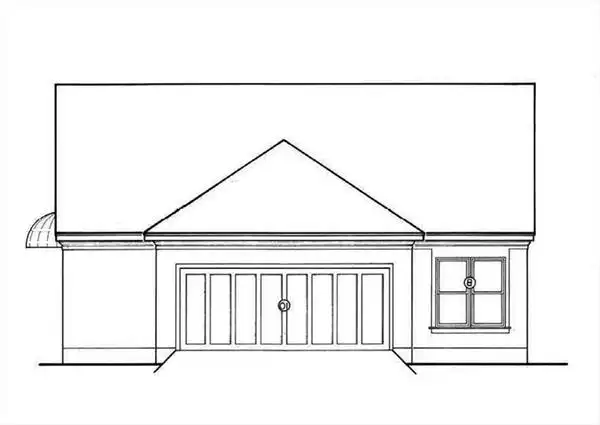

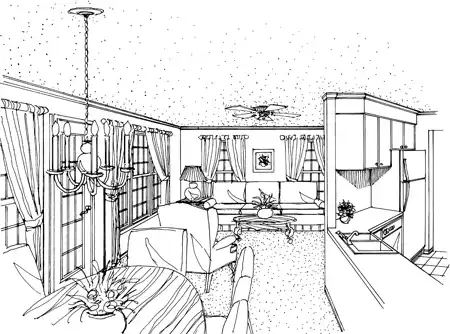

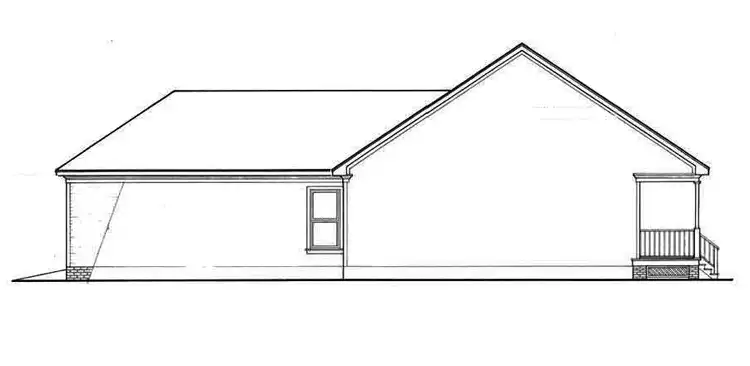

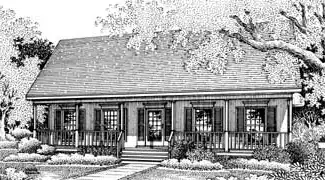

Additional Images


Get Your House Plans In Minutes!

NEW PDFs Now! Plan packages available. Simply place your order, electronically sign the license agreement, and receive your PDFs within minutes in your inbox!
Plan Pricing Packages
HOUSE PLAN SETS

 PDF BID SET   PDFs Now!   $570.00
 1 set    $574.00
 4 sets    $594.00
 8 sets    $654.00
 12 sets    $704.00
 Reproducible Set    $754.00
 PDF Construction Set - 1 Build   PDFs Now!   $754.00
 Cad Files    $1,508.00
FOUNDATION OPTIONS

 Crawl Space Foundation PDFs Now! available   $0.00
 Optional Concrete Slab Foundation PDFs Now! available   $90.00
 Optional Custom Foundation Design  $300.00
ADDITIONAL PLAN OPTIONS

 Additional Sets  $50.00
 Materials List PDFs Now! available   $70.00
 Materials List (additional sets are available)  $15.00
 Mirror Reverse Set  $60.00
PROMOTIONAL ITEMS

 Custom Adult T-shirt  $25.00
Size:
Color:
Best Price Guarantee, learn more
For more details about our plan packages click here



Email Us   Call Us   Live Chat

Key Features
  • Attached
  • Front Porch
Need to make changes?
Call for a free modification quote
877-895-5299
or use this quote form
Architect's Preferred Products:
ULTREX® Fiberglass Windows & Doors
Decorative Millwork and Columns
Classic-Craft® American Collection™ Fiberglass Entry Door
Prefinished Hardwood Flooring
Decorative Window Treatments

© copyright by designer
First Floor Plan:




Top

Plan Details

General House Information
Number of Stories:1
Width:40' 0"
Depth:64' 0"
Dwelling Number:Single
Bonus Access:None

Exterior Style
  • Traditional
  • Cottage
  • Country
  • Farm House

Facade
  • Stucco

Number of Rooms
Bedrooms:3
Full Baths:2

Finished Square Footage
Main Level:1266 Sq. Ft.
Total: 1266 Sq. Ft.

Unfinished Square Footage
Garage:790 Sq. Ft.

Garage
Garage Type:Attached
Garage Size:1


Foundation
  • Crawl Space Foundation
  • Optional Concrete Slab Foundation
  • Optional Custom Foundation Design

House And Ceiling Heights
First Floor Ceiling:8
Maximum House Height:26' 0"

Framing Information
Roof Framing:Stick
Exterior Wall Framing:2x6

Roof Pitch
Primary:8/12

Roof Load
Live:20
Dead:10

INSULATION
Exterior Wall:19
Interior Wall:0
Ceiling:38
Floor:11

Number of Rooms
Bedrooms:3
Full Baths:2
Top
