Plan Specification: HHF-3564

Total Square Footage: 1,600

Main Level: 1,136

Second Level: 464

Bedrooms: 3

Baths: 2

Garages: 2

Width: 58 ft Depth: 42 ft

Foundation: Crawl Space Foundation, Optional Basement Foundation, Optional Concrete Slab Foundation


Pricing Options Click here...

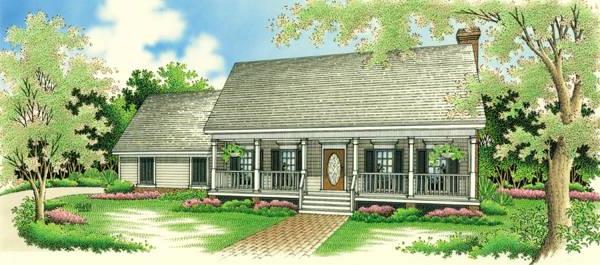

Main Plan Photo
© copyright by designer

Plan: HHF-3564

This compactly designed country cottage has been extremely popular with clients looking for a home with a sprawling front porch that can be built on a modest budget. The ground floor master suite can be accessed from the entry or rear hall. The master bath has a vanity and dressing counter with a mirror surround. For spending leisure time protected from nagging insects, an old time screen porch has been designed on the rear of the home with easy access from the living dining area.

ShareThis

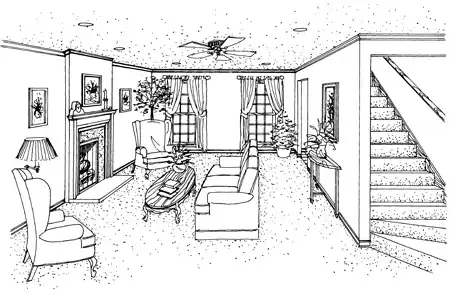

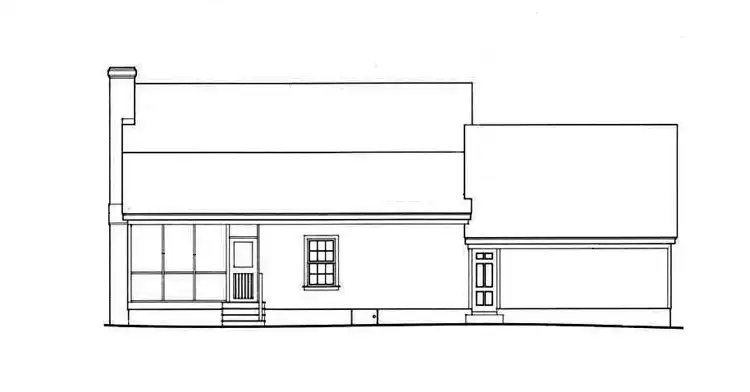

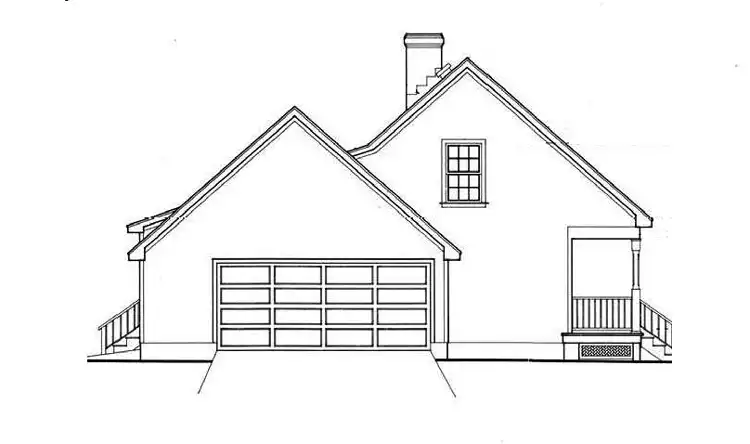

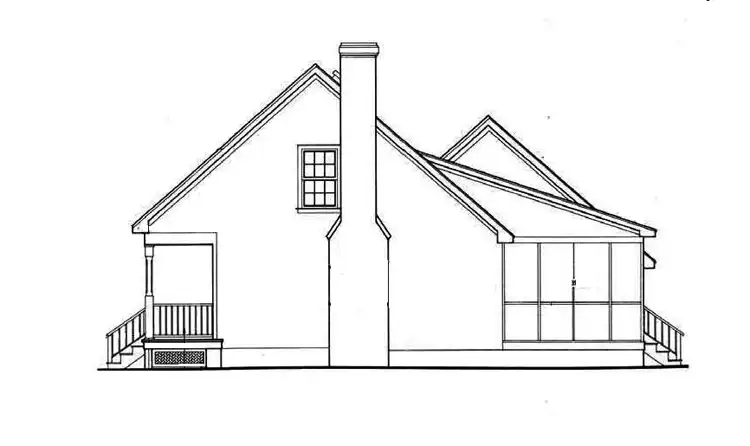

Additional Images


Get Your House Plans In Minutes!

NEW PDFs Now! Plan packages available. Simply place your order, electronically sign the license agreement, and receive your PDFs within minutes in your inbox!
Plan Pricing Packages
HOUSE PLAN SETS

 PDF BID SET   PDFs Now!   $660.00
 1 set    $664.00
 4 sets    $684.00
 8 sets    $729.00
 12 sets    $779.00
 Reproducible Set    $819.00
 PDF Construction Set - 1 Build   PDFs Now!   $819.00
 Cad Files    $1,638.00
FOUNDATION OPTIONS

 Crawl Space Foundation PDFs Now! available   $0.00
 Optional Basement Foundation PDFs Now! available   $90.00
 Optional Concrete Slab Foundation PDFs Now! available   $90.00
ADDITIONAL PLAN OPTIONS

 Additional Sets  $50.00
 Full Reverse Plans  $125.00
 ICF CONCRETE EXTERIOR WALL SYSTEM  $100.00
 Materials List PDFs Now! available   $75.00
 Materials List (additional sets are available)  $15.00
 Mirror Reverse Set  $60.00
PROMOTIONAL ITEMS

 Custom Adult T-shirt  $25.00
Size:
Color:
Best Price Guarantee, learn more
For more details about our plan packages click here



Email Us   Call Us   Live Chat

Key Features
  • Attached
  • Basement
  • Covered Front Porch
  • Crawlspace
  • Front Porch
  • Laundry 1st Fl
  • Master Bdrm Main Floor
  • Side-entry
Need to make changes?
Call for a free modification quote
877-895-5299
or use this quote form
Architect's Preferred Products:
ULTREX® Fiberglass Windows & Doors
Decorative Millwork and Columns
Classic-Craft® American Collection™ Fiberglass Entry Door
Prefinished Hardwood Flooring
Decorative Window Treatments

© copyright by designer

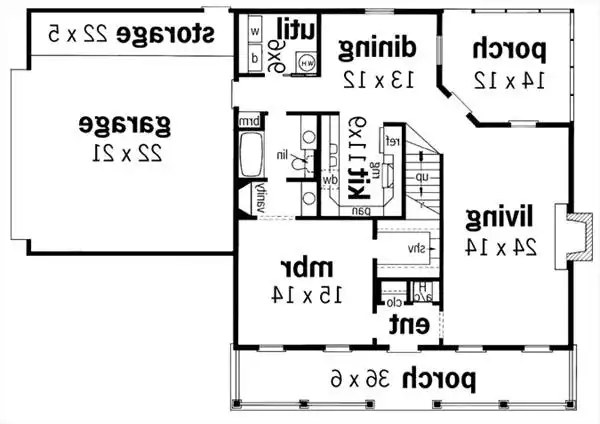

First Floor Plan:





© copyright by designer

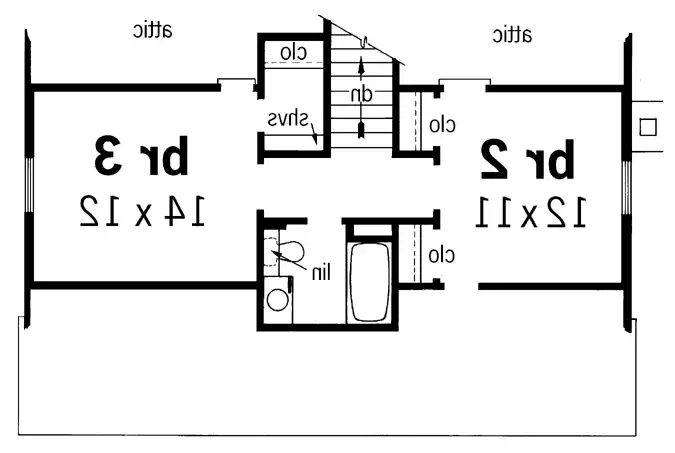

Second Floor Plan:


© copyright by designer

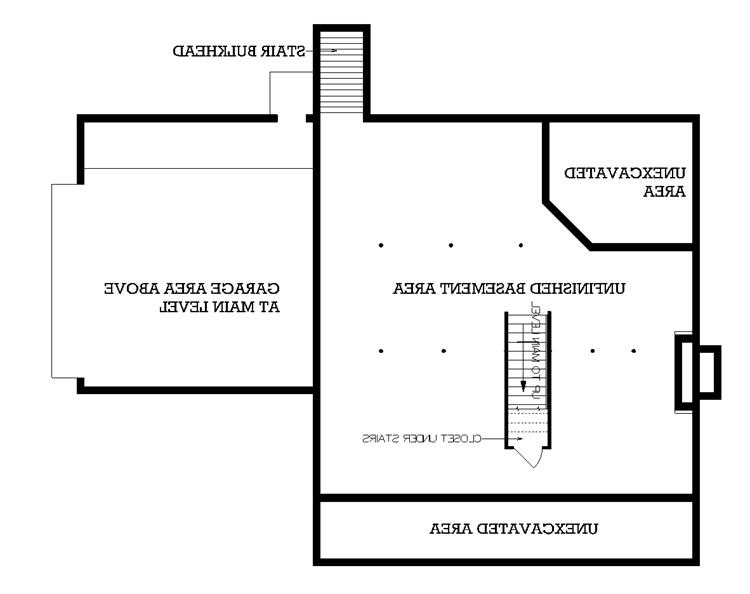

Optional Basement Foundation:


© copyright by designer

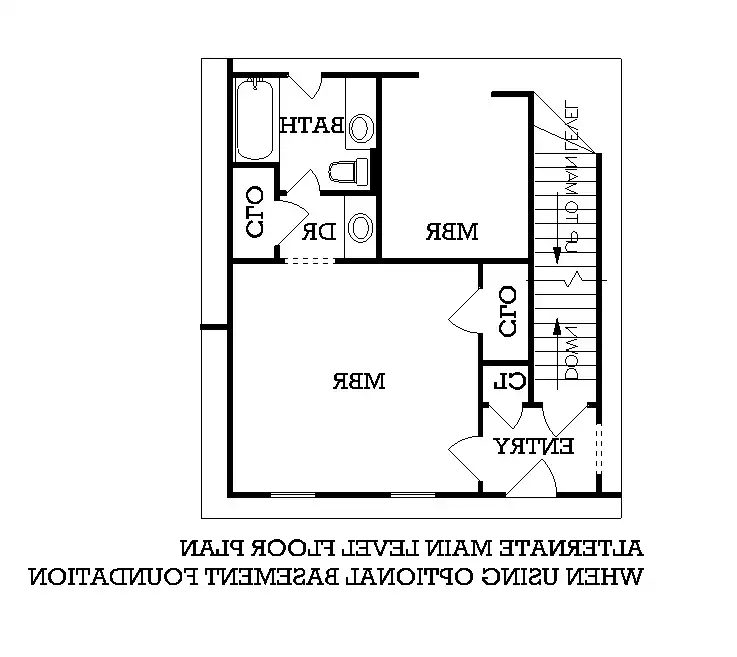

Main Level Stair Location with optional basement:

Top

Plan Details

General House Information
Number of Stories:1.5
Width:58' 0"
Depth:42' 0"
Dwelling Number:Single
Bonus Access:None

Exterior Style
  • Cape Cod
  • Farm House
  • Country

Facade
  • Siding

Number of Rooms
Bedrooms:3
Full Baths:2

Finished Square Footage
Main Level:1136 Sq. Ft.
Upper Level: 464 Sq. Ft.
Total: 1600 Sq. Ft.

Unfinished Square Footage
Garage:965 Sq. Ft.

Garage
Garage Type:Attached
Garage Size:2


Foundation
  • Crawl Space Foundation
  • Optional Basement Foundation
  • Optional Concrete Slab Foundation

House And Ceiling Heights
First Floor Ceiling:8
Second Floor Ceiling:8
Maximum House Height:27' 0"

Framing Information
Roof Framing:Stick
Exterior Wall Framing:2x6

Roof Pitch
Primary:10/12

Roof Load
Live:20
Dead:10

INSULATION
Exterior Wall:19
Interior Wall:0
Ceiling:38
Floor:19

Number of Rooms
Bedrooms:3
Full Baths:2
