Plan Specification: HHF-3714

Total Square Footage: 1,629

Main Level: 1,098

Second Level: 531

Bedrooms: 3

Baths: 2

Garages: 1

Width: 45 ft Depth: 43 ft

Foundation: Basement, Crawl Space, Slab Foundation


Pricing Options Click here...

Main Plan Photo
© copyright by designer

Plan: HHF-3714

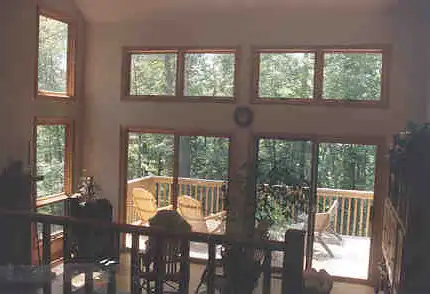

For a scenic lake or mountain lot, this spectacular design takes full advantage of the views. I designed a three-sided wraparound deck to expand the relationship between indoor and outdoor living. The sunken living room with a 19-ft. cathedral ceiling, a skylight, a beautiful fireplace and glass galore is the heart of the floor plan. Both the formal dining room and the kitchen overlook the living room and the surrounding deck beyond. The main-floor master bedroom has a 12-ft. cathedral ceiling and private access to the deck and hall bath. Upstairs, two more bedrooms share a skylighted bath and flank a dramatic balcony sitting area that views to the living room below.

ShareThis
Treat yourself to 10% off all house plan packages, over $500 see details
Additional Images


Get Your House Plans In Minutes!

NEW PDFs Now! Plan packages available. Simply place your order, electronically sign the license agreement, and receive your PDFs within minutes in your inbox!
Plan Pricing Packages
HOUSE PLAN SETS

 PDF BID SET   PDFs Now!   $575.00
 Four Set Package    $675.00
 Eight Set Package    $755.00
 PDF Construction Set - Single Use   PDFs Now!   $845.00
 Reproducible Vellum Set    $870.00
FOUNDATION OPTIONS

 Crawl Space PDFs Now! available   $0.00
 Slab Foundation PDFs Now! available   $0.00
 Basement PDFs Now! available   $100.00
ADDITIONAL PLAN OPTIONS

 Additional Set  $50.00
 Material List (if available)  $75.00
 Mirror Reverse  $50.00
 Multiple Use License (For more than one home)  $250.00
 High Wind Structural Drawings  $150.00
PROMOTIONAL ITEMS

 Custom Adult T-shirt  $25.00
Size:
Color:
Best Price Guarantee, learn more
For more details about our plan packages click here



Email Us   Call Us   Live Chat

Key Features
  • Attached
  • Country Kitchen
  • Deck
  • Dining Room
  • Fireplace
  • Formal Dining Room
  • Foyer
  • Great Room
  • Laundry 1st Fl
  • Loft / Balcony
  • Master Bdrm Main Floor
  • Nook / Breakfast Area
  • Open Floor Plan
  • Oversized Garage
  • Storage Space
  • Vaulted Ceilings
  • Wrap Around Porches
  • Wraparound Porch
Need to make changes?
Call for a free modification quote
877-895-5299
or use this quote form
Architect's Preferred Products:
ULTREX® Fiberglass Windows & Doors
Decorative Millwork and Columns
Classic-Craft® American Collection™ Fiberglass Entry Door
Prefinished Hardwood Flooring
Decorative Window Treatments

© copyright by designer
First Floor Plan:





© copyright by designer
Second Floor Plan:

Top

Plan Details

General House Information
Number of Stories:1.5
Width:45' 0"
Depth:43' 2"
Dwelling Number:Single

Exterior Style
  • Contemporary
  • Narrow
  • Sloping Lot
  • Vacation
  • Mountain
  • Modern

Facade
  • Owner's Choice
  • OwnersChoice
  • OwnersChoice

Number of Rooms
Bedrooms:3
Full Baths:2

Finished Square Footage
Main Level:1098 Sq. Ft.
Upper Level: 531 Sq. Ft.
Total: 1629 Sq. Ft.

Unfinished Square Footage
Garage:327 Sq. Ft.

Garage
Garage Type:Attached
Garage Size:1


Foundation
  • Basement
  • Crawl Space
  • Slab Foundation

House And Ceiling Heights
First Floor Ceiling:8'-1"
Second Floor Ceiling:8'-1"
Maximum House Height:26' 6"

Framing Information
Roof Framing:Stick
Exterior Wall Framing:2x4

Roof Pitch
Primary:9/ 12

Roof Load
Live:30
Dead:10

INSULATION
Exterior Wall:13
Interior Wall:0
Ceiling:30
Floor:19

Number of Rooms
Bedrooms:3
Full Baths:2
