Plan Specification: HHF-3809

Total Square Footage: 1,699

Main Level: 1,699

Bedrooms: 4

Baths: 2

Garages: 2

Width: 49 ft Depth: 60 ft

Foundation: Basement, Crawl Space, Slab Foundation


Pricing Options Click here...

Main Plan Photo
© copyright by designer

Plan: HHF-3809

This plan is almost identical to THD-3433, but it is designed with a more traditional exterior faade. The only other difference is in the access to the master suite, which affords greater privacy; however you could build it either way. As in plan no.3433, the sunny kitchen is highlighted by its wraparound corner windows and snack counter. The master suite features two walk-in closets, a sitting area, dual sinks, whirlpool bath and separate shower.

ShareThis

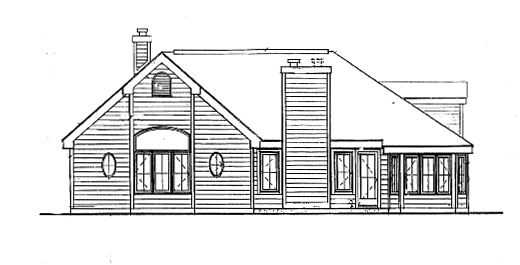

Additional Images

Get Your House Plans In Minutes!

NEW PDFs Now! Plan packages available. Simply place your order, electronically sign the license agreement, and receive your PDFs within minutes in your inbox!
Plan Pricing Packages
HOUSE PLAN SETS

 PDF BID SET   PDFs Now!   $575.00
 Four Set Package    $675.00
 Eight Set Package    $755.00
 PDF Construction Set - Single Use   PDFs Now!   $845.00
 Reproducible Vellum Set    $870.00
FOUNDATION OPTIONS

 Crawl Space PDFs Now! available   $0.00
 Slab Foundation PDFs Now! available   $0.00
 Basement PDFs Now! available   $100.00
ADDITIONAL PLAN OPTIONS

 Additional Set  $50.00
 Material List (if available)  $75.00
 Mirror Reverse  $50.00
 Multiple Use License (For more than one home)  $250.00
 High Wind Structural Drawings  $150.00
PROMOTIONAL ITEMS

 Custom Adult T-shirt  $25.00
Size:
Color:
Best Price Guarantee, learn more
For more details about our plan packages click here



Email Us   Call Us   Live Chat

Key Features
  • 4 Bedrooms
  • Attached
  • Covered Front Porch
  • Dining Room
  • Double Vanity Sink
  • Fireplace
  • Formal Dining Room
  • Foyer
  • Grand Master Suite
  • Great Room
  • His and Hers Master Closets
  • Home Office
  • Kitchen Island
  • Laundry 1st Fl
  • Master Bdrm Main Floor
  • Nook / Breakfast Area
  • Open Floor Plan
  • Peninsula / Eating Bar
  • Separate Tub and Shower
  • Special Ceiling Treatments
  • Split Bedrooms
  • Storage Space
  • Vaulted Ceilings
  • Walk-in Closet
Need to make changes?
Call for a free modification quote
877-895-5299
or use this quote form
Architect's Preferred Products:
ULTREX® Fiberglass Windows & Doors
Decorative Millwork and Columns
Classic-Craft® American Collection™ Fiberglass Entry Door
Prefinished Hardwood Flooring
Decorative Window Treatments

© copyright by designer
First Floor Plan:




Top

Plan Details

General House Information
Number of Stories:1
Width:49' 10"
Depth:60' 6"
Dwelling Number:Single

Exterior Style
  • Country
  • Farm House
  • Ranch

Facade
  • Owner's Choice
  • OwnersChoice
  • OwnersChoice

Number of Rooms
Bedrooms:4
Full Baths:2

Finished Square Footage
Main Level:1699 Sq. Ft.
Total: 1699 Sq. Ft.

Unfinished Square Footage
Garage:480 Sq. Ft.

Garage
Garage Type:Attached
Garage Size:2


Foundation
  • Basement
  • Crawl Space
  • Slab Foundation

House And Ceiling Heights
First Floor Ceiling:8'-1"
Maximum House Height:21' 0"

Framing Information
Roof Framing:Stick
Exterior Wall Framing:2x4

Roof Pitch
Primary:8/ 12
Secondary:10-1/2: 12

Roof Load
Live:30
Dead:10

INSULATION
Exterior Wall:13
Interior Wall:0
Ceiling:30
Floor:19

Number of Rooms
Bedrooms:4
Full Baths:2
