Plan Specification: HHF-3820

Total Square Footage: 1,600

Main Level: 1,008

Second Level: 582

Bedrooms: 3

Baths: 2

Garages: 1

Width: 28 ft Depth: 36 ft

Foundation: Slab Foundation


Pricing Options Click here...

Main Plan Photo
© copyright by designer

Plan: HHF-3820

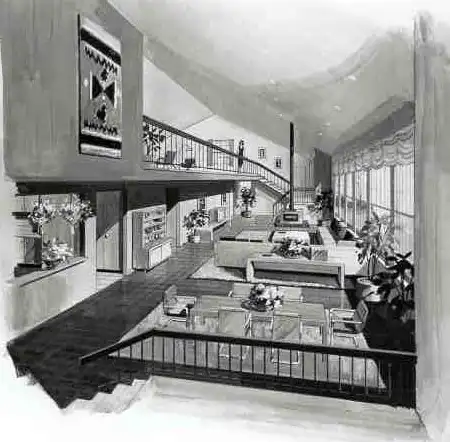

This very modest home is focused on incorporating passive solar features for maximum enrgy efficiency. Plans allow you to connect a garage in different ways thereby permitting the home to be properly oriented to the sun on any lot. The great room is the intended sunny space; a trellis shades a beautiful window wall to eliminate strong summer sun, while permitting lower winter sun to penetrate. The rear interior wall of the great room is a masonry "trombe wall", which will store heat. The home could be built without any grage or with a one or two car garage.

ShareThis
Additional Images


Get Your House Plans In Minutes!

NEW PDFs Now! Plan packages available. Simply place your order, electronically sign the license agreement, and receive your PDFs within minutes in your inbox!
Plan Pricing Packages
HOUSE PLAN SETS

 PDF BID SET   PDFs Now!   $575.00
 Four Set Package    $675.00
 Eight Set Package    $755.00
 PDF Construction Set - Single Use   PDFs Now!   $845.00
 Reproducible Vellum Set    $870.00
FOUNDATION OPTIONS

 Slab Foundation PDFs Now! available   $0.00
ADDITIONAL PLAN OPTIONS

 Additional Set  $50.00
 Material List (if available)  $75.00
 Mirror Reverse  $50.00
 High Wind Structural Drawings  $150.00
 Multiple Use License (For more than one home)  $250.00
PROMOTIONAL ITEMS

 Custom Adult T-shirt  $25.00
Size:
Color:
Best Price Guarantee, learn more
For more details about our plan packages click here



Email Us   Call Us   Live Chat

Key Features
  • Attached
  • Country Kitchen
  • Grand Room
  • Great Room
  • Laundry 1st Fl
  • Master Bdrm Main Floor
  • Vaulted Ceilings
Need to make changes?
Call for a free modification quote
877-895-5299
or use this quote form

© copyright by designer

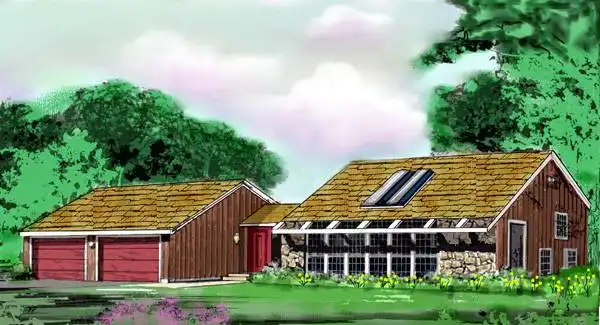

Front Rendering:





© copyright by designer
First Floor Plan:


© copyright by designer
Second Floor Plan:


© copyright by designer
Optional Floor Plan:

Top

Plan Details

General House Information
Number of Stories:1.5
Width:28' 0"
Depth:36' 0"
Dwelling Number:Single

Exterior Style
  • Contemporary
  • Sloping Lot
  • Modern
  • Vacation

Facade
  • Owner's Choice
  • OwnersChoice

Number of Rooms
Bedrooms:3
Full Baths:2

Finished Square Footage
Main Level:1008 Sq. Ft.
Upper Level: 582 Sq. Ft.
Total: 1600 Sq. Ft.

Unfinished Square Footage
Garage:288 Sq. Ft.

Garage
Garage Type:Attached
Garage Size:1


Foundation
  • Slab Foundation

House And Ceiling Heights
First Floor Ceiling:8'-1"
Second Floor Ceiling:8'-1"
Maximum House Height:20' 2"

Framing Information
Roof Framing:Truss
Exterior Wall Framing:2x6

Roof Pitch
Primary:7/ 12
Secondary:8-1/2: 12

Roof Load
Live:30
Dead:10

INSULATION
Exterior Wall:19
Interior Wall:0
Ceiling:30
Floor:19

Number of Rooms
Bedrooms:3
Full Baths:2
