Plan Specification: HHF-3822

Total Square Footage: 1,419

Main Level: 967

Second Level: 452

Bedrooms: 3

Baths: 2

Garages: 0

Width: 45 ft Depth: 32 ft

Foundation: Basement, Crawl Space, Slab Foundation


Pricing Options Click here...

Main Plan Photo
© copyright by designer

Plan: HHF-3822

This wonderful home is a great get-away home for any season. It includes a truly grand great room for entertaining and a private first floor master bedroom. The great room features a beautiful soaring vaulted ceiling. Plans include a large outdoor deck off the great room.

ShareThis
Treat yourself to 10% off all house plan packages, over $500 see details

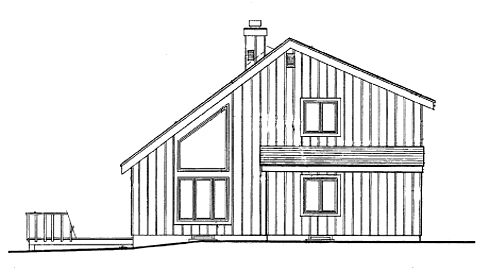

Additional Images


Get Your House Plans In Minutes!

NEW PDFs Now! Plan packages available. Simply place your order, electronically sign the license agreement, and receive your PDFs within minutes in your inbox!
Plan Pricing Packages
HOUSE PLAN SETS

 Review Set with Material List    $179.00
 Upgrade From a Review Set    $506.00
 PDF BID SET   PDFs Now!   $525.00
 Four Set Package    $605.00
 Eight Set Package    $685.00
 PDF Construction Set - Single Use   PDFs Now!   $785.00
 Reproducible Vellum Set    $810.00
FOUNDATION OPTIONS

 Crawl Space PDFs Now! available   $0.00
 Slab Foundation PDFs Now! available   $0.00
 Basement PDFs Now! available   $100.00
ADDITIONAL PLAN OPTIONS

 Additional Set  $50.00
 Material List (if available)  $75.00
 Mirror Reverse  $50.00
 Multiple Use License (For more than one home)  $250.00
 High Wind Structural Drawings  $150.00
PROMOTIONAL ITEMS

 Custom Adult T-shirt  $25.00
Size:
Color:
Best Price Guarantee, learn more
For more details about our plan packages click here



Email Us   Call Us   Live Chat

Key Features
  • Deck
  • Fireplace
  • Foyer
  • Great Room
  • Master Bdrm Main Floor
  • Vaulted Ceilings
Need to make changes?
Call for a free modification quote
877-895-5299
or use this quote form
Architect's Preferred Products:
ULTREX® Fiberglass Windows & Doors
Decorative Millwork and Columns
Classic-Craft® American Collection™ Fiberglass Entry Door
Prefinished Hardwood Flooring
Decorative Window Treatments

© copyright by designer
First Floor Plan:





© copyright by designer
Second Floor Plan:

Top

Plan Details

General House Information
Number of Stories:2
Width:45' 4"
Depth:32' 8"
Dwelling Number:Single

Exterior Style
  • Contemporary
  • Beach
  • Vacation
  • Modern
  • Mountain

Facade
  • Owner's Choice
  • OwnersChoice

Number of Rooms
Bedrooms:3
Full Baths:2

Finished Square Footage
Main Level:967 Sq. Ft.
Upper Level: 452 Sq. Ft.
Total: 1419 Sq. Ft.

Unfinished Square Footage
Deck:312 Sq. Ft.

Garage
  • Garage Type:
Garage Size:0


Foundation
  • Basement
  • Crawl Space
  • Slab Foundation

House And Ceiling Heights
First Floor Ceiling:8'-1"
Second Floor Ceiling:8'-1"
Maximum House Height:24' 0"

Framing Information
Roof Framing:Stick
Exterior Wall Framing:2x4

Roof Pitch
Primary:5/ 12
Secondary:9/ 12

Roof Load
Live:30
Dead:10

INSULATION
Exterior Wall:13
Interior Wall:0
Ceiling:30
Floor:19

Number of Rooms
Bedrooms:3
Full Baths:2
