Plan Specification: HHF-3872

Total Square Footage: 1,619

Main Level: 1,100

Second Level: 519

Bedrooms: 3

Baths: 2

Garages: 1

Width: 48 ft Depth: 31 ft

Foundation: Basement, Crawl Space, Slab Foundation


Pricing Options Click here...
Main Plan Photo
© copyright by designer

Plan: HHF-3872

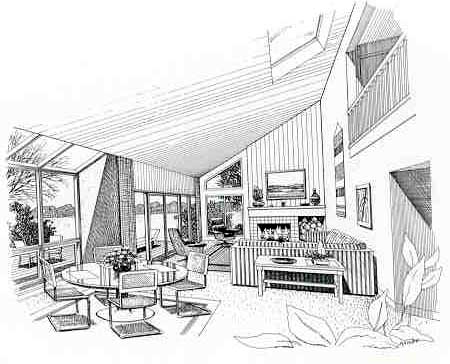

A south-facing window wall , greenhouse enclosure, and vaulted ceiling are among the passive solar ideas incorporated into this home. Whether intended for leisure use or year round occupancy, the interior is delightful. Note the first floor master suite, the huge great room, and skylit eat-in kitchen.

ShareThis
Additional Images

See all 3 photos and rear view
Plan Pricing Packages
HOUSE PLAN SETS
 PDF BID SET  $575.00
 Four Set Package  $675.00
 Eight Set Package  $755.00
 PDF Construction Set - Single Use  $845.00
 Reproducible Vellum Set  $870.00
FOUNDATION OPTIONS
 Crawl Space  $0.00
 Slab Foundation  $0.00
 Basement  $100.00
ADDITIONAL PLAN OPTIONS
 Additional Set  $50.00
 Material List (if available)  $75.00
 Mirror Reverse  $50.00
 Multiple Use License (For more than one home)  $250.00
 High Wind Structural Drawings  $150.00
PROMOTIONAL ITEMS
 Custom Adult T-shirt  $25.00
Size:
Color:
Best Price Guarantee, learn more
For more details about our plan packages click here



Email Us   Call Us   Live Chat

Key Features
  • Attached
  • Country Kitchen
  • Deck
  • Fireplace
  • Foyer
  • Front Porch
  • Great Room
  • Laundry 1st Fl
  • Loft / Balcony
  • Master Bdrm Main Floor
  • Mud Room
  • Nook / Breakfast Area
  • Storage Space
  • Vaulted Ceilings
Need to make changes?
Call for a free modification quote
877-895-5299
or use this quote form

© copyright by designer
First Floor Plan:





© copyright by designer
Second Floor Plan:

Top

Plan Details

General House Information
Number of Stories:1.5
Width:48' 6"
Depth:31' 4"
Dwelling Number:Single

Exterior Style
  • Contemporary
  • Vacation
  • Modern
  • Beach
  • Mountain

Facade
  • Owner's Choice
  • OwnersChoice
  • OwnersChoice

Number of Rooms
Bedrooms:3
Full Baths:2

Finished Square Footage
Main Level:1100 Sq. Ft.
Upper Level: 519 Sq. Ft.
Total: 1619 Sq. Ft.

Unfinished Square Footage
Garage:234 Sq. Ft.
Storage:38 Sq. Ft.

Garage
Garage Type:Attached
Garage Size:1


Foundation
  • Basement
  • Crawl Space
  • Slab Foundation

House And Ceiling Heights
First Floor Ceiling:8'-1"
Second Floor Ceiling:8'-1"
Maximum House Height:24' 0"

Framing Information
Roof Framing:Stick
Exterior Wall Framing:2x6

Roof Pitch
Primary:7/ 12

Roof Load
Live:30
Dead:7

INSULATION
Exterior Wall:19
Interior Wall:0
Ceiling:38
Floor:19

Number of Rooms
Bedrooms:3
Full Baths:2
