Plan Specification: HHF-3892

Total Square Footage: 1,554

Main Level: 1,554

Bedrooms: 3

Baths: 2

Garages: 2

Width: 64 ft Depth: 40 ft

Foundation: Basement, Crawl Space, Slab Foundation


Pricing Options Click here...

Main Plan Photo
© copyright by designer

Plan: HHF-3892

The smart looking post-modern style ranch boasts a great floor plan. A dramatic open living/entertaining area is the focal center of the home; it is flanked by bedrooms on both sides, with the vaulted master enjoying a separate, private location. Although only 1554 sqare feet the home feels and lives much larger. If you prefer a more traditional faade that is easily changed in the field.

ShareThis
Treat yourself to 10% off all house plan packages, over $500 see details

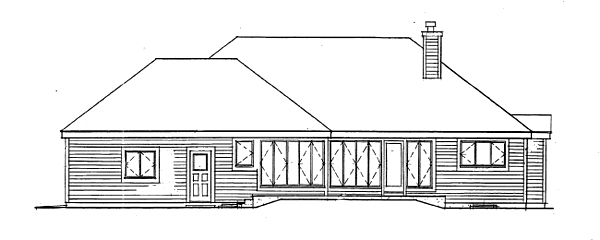

Additional Images

Get Your House Plans In Minutes!

NEW PDFs Now! Plan packages available. Simply place your order, electronically sign the license agreement, and receive your PDFs within minutes in your inbox!
Plan Pricing Packages
HOUSE PLAN SETS

 PDF BID SET   PDFs Now!   $575.00
 Four Set Package    $675.00
 Eight Set Package    $755.00
 PDF Construction Set - Single Use   PDFs Now!   $845.00
 Reproducible Vellum Set    $870.00
FOUNDATION OPTIONS

 Crawl Space PDFs Now! available   $0.00
 Slab Foundation PDFs Now! available   $0.00
 Basement PDFs Now! available   $100.00
ADDITIONAL PLAN OPTIONS

 Additional Set  $50.00
 Material List (if available)  $75.00
 Mirror Reverse  $50.00
 Multiple Use License (For more than one home)  $250.00
 High Wind Structural Drawings  $150.00
PROMOTIONAL ITEMS

 Custom Adult T-shirt  $25.00
Size:
Color:
Best Price Guarantee, learn more
For more details about our plan packages click here



Email Us   Call Us   Live Chat

Key Features
  • Attached
  • Covered Front Porch
  • Dining Room
  • Double Vanity Sink
  • Fireplace
  • Foyer
  • Great Room
  • Laundry 1st Fl
  • Master Bdrm Main Floor
  • Master Suite
  • Mud Room
  • Nook / Breakfast Area
  • Open Floor Plan
  • Peninsula / Eating Bar
  • Separate Tub and Shower
  • Split Bedrooms
  • Split Master / Secondary Bedrooms
  • Storage Space
  • Vaulted Ceilings
  • Walk-in Closet
Need to make changes?
Call for a free modification quote
877-895-5299
or use this quote form
Architect's Preferred Products:
ULTREX® Fiberglass Windows & Doors
Decorative Millwork and Columns
Classic-Craft® American Collection™ Fiberglass Entry Door
Prefinished Hardwood Flooring
Decorative Window Treatments

© copyright by designer
First Floor Plan:




Top

Plan Details

General House Information
Number of Stories:1
Width:64' 2"
Depth:40' 8"
Dwelling Number:Single

Exterior Style
  • Modern
  • Ranch
  • Cottage

Facade
  • Owner's Choice
  • OwnersChoice
  • OwnersChoice

Number of Rooms
Bedrooms:3
Full Baths:2

Finished Square Footage
Main Level:1554 Sq. Ft.
Total: 1554 Sq. Ft.

Unfinished Square Footage
Garage:428 Sq. Ft.

Garage
Garage Type:Attached
Garage Size:2


Foundation
  • Basement
  • Crawl Space
  • Slab Foundation

House And Ceiling Heights
First Floor Ceiling:8'-0"
Maximum House Height:22' 6"

Framing Information
Roof Framing:Stick
Exterior Wall Framing:2x6

Roof Pitch
Primary:9/ 12

Roof Load
Live:30
Dead:10

INSULATION
Exterior Wall:19
Interior Wall:0
Ceiling:38
Floor:19

Number of Rooms
Bedrooms:3
Full Baths:2
