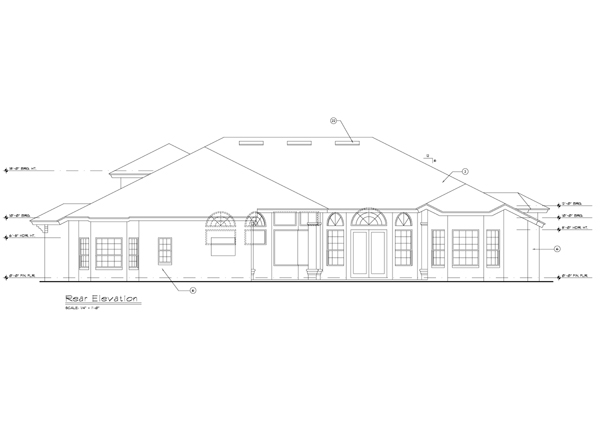

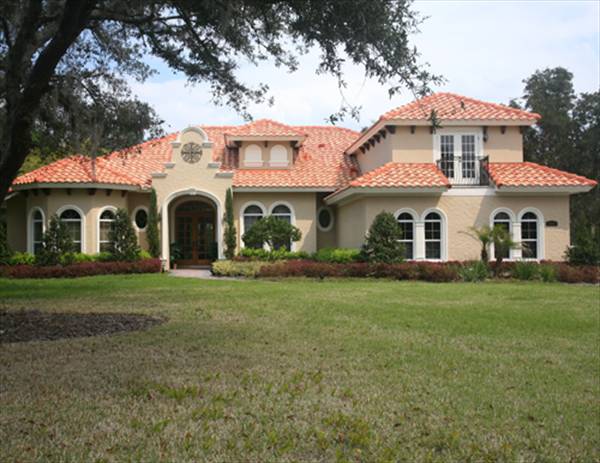

Front Exterior An Alternate As-Built Exterior Rear Elevation Living Room Living Room Dining Room Kitchen Kitchen Nook Great Room Great Room Master Bedroom Master Bath Master Bath Bedroom/Study First Floor Plan
© copyright by designer

Plan: 4127

Plan Specification
Total Square Footage: 3,424
Main Level: 3,424
Bonus: 507
Bedrooms: 5
Baths: 4 Half: 0
Garages: 3
Width/Depth: 82 ft / 83 ft
Foundation: Slab
Pin It
© copyright by designer
First Floor Plan:
First Floor Plan



Similar plans: 5055, 6427, 5051
More plans by this designer/architect
ShareThis
Add to Favorites
Purchase Plans
Get Your House Plans In Minutes!
NEW PDFs Now!™ Plan packages available. Simply place your order, electronically sign the license agreement, and receive your PDFs within minutes in your inbox!
10% Off All House Plans Through The End Of August !!! see details
House Plan Pricing
PDFs Now!™ $600.00
$1,060.00
$1,300.00
PDFs Now!™ $1,300.00
$2,600.00
More details about our plan packages
Foundation Options
PDFs Now!™ available $0.00
Additional Plan Options
$2,225.00
$45.00
$15.00
$45.00
$75.00
Best Price Guarantee, learn more

Live Chat  |  Email
Key Features
• 4 Baths
• 5 Bedrooms
• Attached
• Bonus Room
• Covered Patio
• Covered Rear Porch
• Dining Room
• Double Vanity Sink
• Family Room
• Fireplace
• Formal Dining Room
• Formal LR
• Foyer
• Great Room
• His and Hers Master Closets
• Home Office
• Kitchen Island
• Laundry 1st Fl
• Master Bdrm Main Floor
• Master Sitting Area
• Master Suite
• Nook / Breakfast Area
• Open Floor Plan
• Peninsula / Eating Bar
• Rear Porch
• Separate Tub and Shower
• Side-entry
• Sitting Area
• Split Bedrooms
• Storage Space
• Suited for corner lot
• Suited for view lot
• Unfinished Space
• Walk-in Closet
• Walk-in Pantry
Plan Details
General House Information
1
Number of Stories:
82' 4"
Width:
83' 8"
Depth:
Single
Dwelling Number:
1st Floor
Bonus Access:
Exterior Style
Contemporary
European
Mediterranean
Southwest
Spanish
Tuscan
Facade
Stucco
Number of Rooms
5
Bedrooms:
4
Full Baths:
Finished Square Footage
3,424 Sq. Ft.
Main Level:
3,424 Sq. Ft.
Total:
Unfinished Square Footage
814 Sq. Ft.
Garage:
82 Sq. Ft.
Porch:
455 Sq. Ft.
Patio:
507 Sq. Ft.
Bonus Room:
GARAGE
Side
Garage Location:
3
Garage Size:
Foundation
Slab
House And Ceiling Heights
Varies
First Floor Ceiling:
8
Second Floor Ceiling:
23' 5"
Maximum House Height:
Framing Information
Truss
Roof Framing:
8" Block/Wood
Exterior Wall Framing:
Roof Pitch
6:12
Primary:
6:12
Dormer:
Insulation (R)
5
Exterior Wall:
0
Interior Wall:
30
Ceiling:
0
Floor:
Number of Rooms
5
Bedrooms:
4
Full Baths:
