Plan Specification: HHF-4170

Total Square Footage: 2,713

Main Level: 2,713

Bonus: 440

Bedrooms: 4

Baths: 4

Garages: 3

Width: 66 ft Depth: 80 ft

Foundation: Basement Option, Crawl Space Option, Slab

Pricing Options Click here...

Main Plan Photo
© copyright by designer

Plan: HHF-4170

The charm and alluring nature of classic Victorian architecture comes to new life in this very up to date design. Covered porches and a Porte cochere
drive thru add depth and dimension to the curb appeal of this home. Playful, yet understated “gingerbread” elements made of low maintenance polymers bring practicality to this beloved architecture.

Upon entry, the relationship between the Adult Conversational Area and Formal Dining brings a new twist in a traditional layout, by introducing both spaces at an angle.

The Conversational Area views the pool that seems to enter the space, while the Dining Area is off the front porch. Views of the pool can be had from both the Kitchen and Family Room and the nook has well defined area, also accessible from the front porch.

The Master Suite too enjoys living “on the water” with the pool up close. Generous his and her walk in closets cap the well-appointed bath. Note the added sink in the toilet chamber! No home built today would be complete without a Home Office, and this home has one complete with French Doors and a porch.

Both secondary Bedrooms are “stacked” and have private baths, truly a unique concept in design. Also noteworthy is the recesses garage, viewed from the street through a ‘Porte cochere’ drive under. Great for keeping visitors dry during inclement weather.

Plan Pricing Packages

 Study Plans - PDF    $99.00
 REPRODUCIBLES    $1,300.00
 PDF File Package    $1,300.00
 CAD FILES    $2,600.00

 Slab  $0.00
 Basement Option  $675.00
 Crawl Space Option  $675.00

 Additional sets  $45.00
 Mirror Reverse  $15.00
 Builder's sales flyer  $45.00
 Builder's Marketing Package  $75.00

 Custom Adult T-shirt  $25.00
Best Price Guarantee, learn more
For more details about our plan packages click here

Email Us   Call Us   Live Chat
Key Features
  • 4 Baths
  • 4 Bedrooms
  • Arches
  • Attached
  • Bedrooms Volume Ceiling - 10 feet
  • Bonus Room
  • Built in Desk in Kitchen
  • Built in Vanity Master Bath
  • Built-in Niches
  • Built-In Plant Shelves
  • Combination Kitchen / Family Room
  • Covered Patio Volume Ceiling
  • Den/Bedroom 4 - Ceiling 12'-8
  • Family Room - 10' ceiling
  • Fireplace
  • Formal Dining Room - Ceiling 12'-8
  • Formal Living Room - Ceiling 12'-8
  • Foyer - Ceiling 12'-8
  • Grand Master Suite
  • His and Hers Master Closets
  • Impressive Entry
  • Kitchen - Nook Volume Ceilings
  • Kitchen Island
  • Library/Media Rm
  • Linen Closets
  • Living and Dining - Tray Ceilings
  • Master Sitting Area
  • Nook / Breakfast Area
  • Rear Porch
  • Separate Tub and Shower
  • Side-entry
  • Vaulted Ceilings
  • Walk-in Pantry
Need to make changes?
Call for a free modification quote
or use this quote form
Architect's Preferred Products:
ULTREX® Fiberglass Windows & Doors
Decorative Millwork and Columns
Classic-Craft® American Collection™ Fiberglass Entry Door
Prefinished Hardwood Flooring
Decorative Window Treatments

© copyright by designer

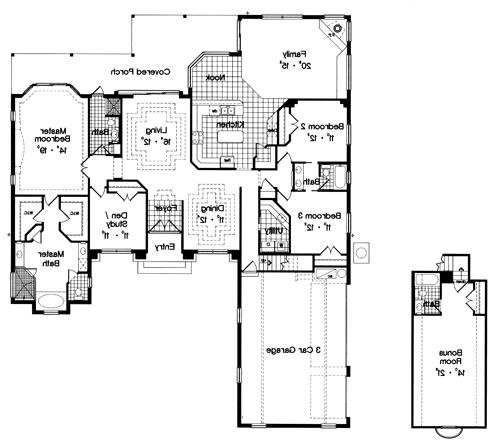

First Floor Plan:

Plan Details
General House Information
Number of Stories:1
Width:66' 4"
Depth:80' 8"
Dwelling Number:Single
Bonus Access:1st Floor
Exterior Style
  • Contemporary
  • Concrete
  • Beach
  • Mediterranean
  • Florida
  • North Carolina
  • Brick
Number of Rooms
Full Baths:4
Finished Square Footage
Main Level:2713 Sq. Ft.
Total: 2713 Sq. Ft.
Unfinished Square Footage
Garage:674 Sq. Ft.
Porch:51 Sq. Ft.
Patio:419 Sq. Ft.
Bonus Room:440 Sq. Ft.
Garage Type:Attached
Garage Size:3
  • Basement Option
  • Crawl Space Option
  • Slab
House And Ceiling Heights
First Floor Ceiling:10
Second Floor Ceiling:8
Maximum House Height:25' 8"
Framing Information
Roof Framing:Truss
Exterior Wall Framing:8" Block/Wood
Roof Pitch
Exterior Wall:5
Interior Wall:0
Number of Rooms
Full Baths:4
