Plan Specification: HHF-4201

Total Entire Building: 3,396

Total Living Per Unit: 3,396

Main Level: 1,215

Second Level: 1,224

Lower Level: 957

Bedrooms: 6

Baths: 3        Half: 2

Garages: 0

Width: 36 ft Depth: 34 ft

Foundation: Basement


Pricing Options Click here...

Main Plan Photo
© copyright by designer

Plan: HHF-4201

A triplex with a mere 36 x 34 footprint boasts three distinct units and loads of charm. One 957 square foot unit occupies the raised basement. The open concept living area creates a feeling of spaciousness. Two bedrooms are located privately away from the social area. The suite also enjoys a private laundry. At 1,220 sq. ft. each, the upper suites mirror each other with the living areas and small balcony on the main floor and bedrooms, bathroom and laundry on the upper floor. Clever placement of storage and stairwell along the shared walls will create a convenient sound barrier between suites. Each unit has a convenient storage room in the basement.

ShareThis
Treat yourself to 10% off all house plan packages, over $500 see details

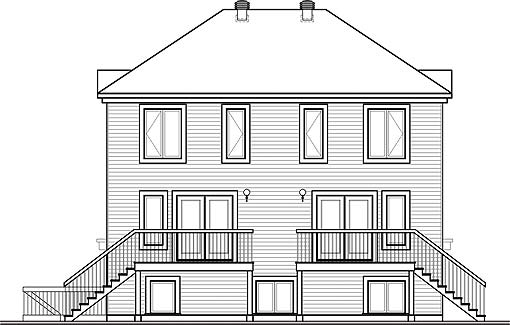

Additional Images

Plan Pricing Packages
HOUSE PLAN SETS

 5 sets    $1,165.00
 8 sets    $1,190.00
 Vellums    $1,345.00
 PDF Files    $1,345.00
 CAD Files    $1,910.00
FOUNDATION OPTIONS

 Basement  $0.00
ADDITIONAL PLAN OPTIONS

 Additional Sets  $50.00
 Materials List  $180.00
 Right Reading Reverse  $150.00
PROMOTIONAL ITEMS

 Custom Adult T-shirt  $25.00
Size:
Color:
Best Price Guarantee, learn more
For more details about our plan packages click here



Email Us   Call Us   Live Chat

Key Features
  • Covered Front Porch
  • Deck
  • Dining Room
  • Family Room
  • Kitchen Island
  • Laundry 2nd Fl
  • Master Bdrm Upstairs
  • Open Floor Plan
Need to make changes?
Call for a free modification quote
877-895-5299
or use this quote form
Architect's Preferred Products:
ULTREX® Fiberglass Windows & Doors
Decorative Millwork and Columns
Classic-Craft® American Collection™ Fiberglass Entry Door
Prefinished Hardwood Flooring
Decorative Window Treatments

© copyright by designer
Basement:





© copyright by designer
First level:


© copyright by designer
Second level:

Top

Plan Details

General House Information
Number of Stories:2
Width:36' 0"
Depth:34' 0"
Dwelling Number:Multi-Family
Bonus Access:None

Exterior Style
  • Traditional

Number of Rooms
Bedrooms:6
Full Baths:3
Half Baths:2

Finished Square Footage
Main Level:1215 Sq. Ft.
Upper Level: 1224 Sq. Ft.
Lower Level:957 Sq. Ft.
Total: 3396 Sq. Ft.

Garage
  • Garage Type:
Garage Size:0


Foundation
  • Basement

House And Ceiling Heights
First Floor Ceiling:8
Second Floor Ceiling:8
Maximum House Height:32' 9"

Framing Information
Roof Framing:Truss
Exterior Wall Framing:2x6

Roof Pitch
Primary:6/12
Secondary:8/12
Gable:8/12

Roof Load
Live:55
Dead:20

INSULATION
Exterior Wall:20
Interior Wall:0
Ceiling:40
Floor:0

Number of Rooms
Bedrooms:6
Full Baths:3
Half Baths:2
