Plan Specification: HHF-4204

Total Square Footage: 1,578

Second Level: 644

Bedrooms: 1

Baths: 1

Garages: 3

Width: 39 ft Depth: 25 ft

Foundation: Slab


Pricing Options Click here...
Main Plan Photo
© copyright by designer

Plan: HHF-4204

This three-car garage plan can be an excellent addition to your existing home or built all by itself. The first floor garage plan has plenty of space including a first floor laundry room! The private second floor includes a large bedroom with a living area. The sloped ceiling along with the front dormer located in the living area adds an unexpected architectural element to the second floor.

ShareThis
Additional Images

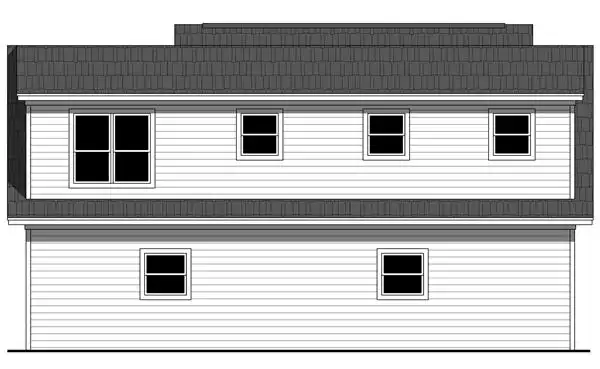

See all 2 photos and rear view
Plan Pricing Packages
HOUSE PLAN SETS
 Five Sets  $265.00
 PDF File Package  $350.00
 Vellums  $375.00
 CAD files  $575.00
ADDITIONAL PLAN OPTIONS
 Materials List  $55.00
 Additional Sets  $45.00
 Right Reading Reverse  $50.00
 Mirror Reverse  $50.00
PROMOTIONAL ITEMS
 Custom Adult T-shirt  $25.00
Size:
Color:
Best Price Guarantee, learn more
For more details about our plan packages click here



Email Us   Call Us   Live Chat

Key Features
  • Attached
  • Drive-under
  • Laundry 1st Fl
  • Open Floor Plan
  • Oversized
  • Slab
  • Walk-in Closet
Need to make changes?
Call for a free modification quote
877-895-5299
or use this quote form

© copyright by designer
1st Level Floorplan:





© copyright by designer
2nd Level Floorplan:

Top

Plan Details

General House Information
Number of Stories:2
Width:39' 4"
Depth:25' 0"
Dwelling Number:Garage
Bonus Access:None

Exterior Style
  • Country
  • Craftsman
  • Traditional
  • Builders
  • Vacation

Number of Rooms
Bedrooms:1
Full Baths:1

Finished Square Footage
Upper Level: 644 Sq. Ft.
Total: 1578 Sq. Ft.

Unfinished Square Footage
Garage:934 Sq. Ft.

Garage
  • Garage Type:
Garage Size:3


Foundation
  • Slab

House And Ceiling Heights
First Floor Ceiling:9
Second Floor Ceiling:8
Maximum House Height:23' 0"

Framing Information
Roof Framing:Stick
Exterior Wall Framing:2x4

Roof Pitch
Primary:12/12

Roof Load
Live:30
Dead:10

INSULATION
Exterior Wall:15
Interior Wall:15
Ceiling:38
Floor:19

Number of Rooms
Bedrooms:1
Full Baths:1
