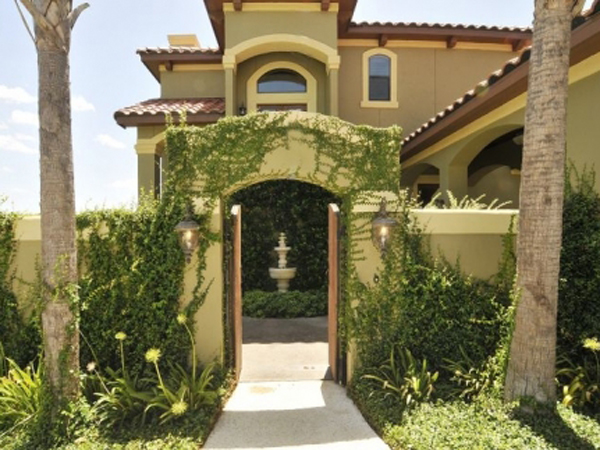

Front View Entrance Courtyard Kitchen Kitchen Living Room Living Room Master Bedroom Media Room Front Elevation Rear Elevation Floor Plan 2nd floor 2nd floor
© copyright by designer

Plan: 4238

Plan Specification
Total Square Footage: 2,896
Main Level: 1,457
Second Level: 806
Bonus: 633
Bedrooms: 4
Baths: 3 Half: 1
Garages: 2
Width/Depth: 51 ft / 81 ft
Foundation: Slab
Pin It
© copyright by designer
Floor Plan:
Floor Plan
Need to make changes?
Call for a free modification quote
877-895-5299 or LIVE CHAT NOW
or use this quote form
© copyright by designer
2nd floor:
2nd floor
© copyright by designer
2nd floor:
2nd floor
Similar plans: 4225, 4239
More plans by this designer/architect
ShareThis
Add to Favorites
Purchase Plans

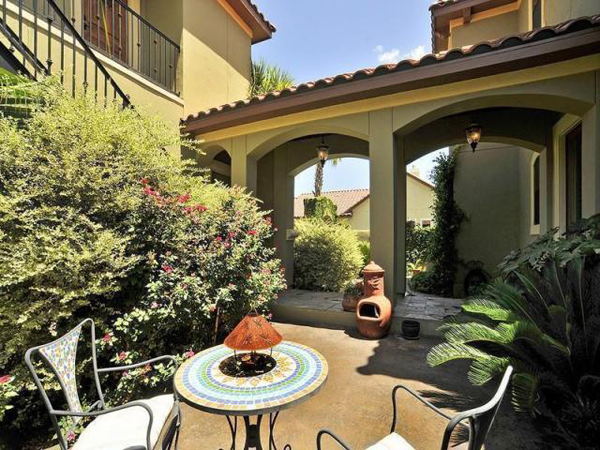

PLAN DESCRIPTION Two open courtyards provide front entertainment areas separated by a covered breezeway. The double doors at the foyer lead into the open living, kitchen, and dining room. The master bedroom opens to the courtyard. The master bathroom includes separate tub and shower with walk-in closet. Three bedrooms and two bathrooms are upstairs, as is the utility room. A separate casita/media room is located upstairs from the garage. It has a small covered balcony at the entry. This oversized room has a walk-in closet and kitchenette with a full bath. This room could be used as guest suite, media/game room or an office.
Get Your House Plans In Minutes!
NEW PDFs Now! Plan packages available. Simply place your order, electronically sign the license agreement, and receive your PDFs within minutes in your inbox!
House Plan Pricing
PDFs Now! $700.00
$800.00
$900.00
$1,050.00
More details about our plan packages
Foundation Options
PDFs Now! available $150.00
Additional Plan Options
$50.00
Best Price Guarantee, learn more
Live Chat  |  Email
Key Features
• 2 Story Volume
• Arches
• Bonus Room
• Breezeway
• Courtyard
• Covered Front Porch
• Covered Rear Porch
• Detached
• Double Vanity Sink
• Family Room
• Fireplace
• Foyer
• Front Porch
• Guest Suite
• In-law Suite
• Kitchen Island
• Laundry 2nd Fl
• Loft / Balcony
• Master Bdrm Main Floor
• Open Floor Plan
• Peninsula / Eating Bar
• Rear Porch
• Separate Tub and Shower
• Side-entry
• Slab
• Split Bedrooms
• Walk-in Closet
• Walk-in Pantry
• With Living Space
Plan Details
General House Information
2
Number of Stories:
51' 0"
Width:
81' 11"
Depth:
Single
Dwelling Number:
None
Bonus Access:
Exterior Style
Mediterranean
Spanish
Tuscan
Builders
Number of Rooms
4
Bedrooms:
3
Full Baths:
1
Half Baths:
Finished Square Footage
1,457 Sq. Ft.
Main Level:
806 Sq. Ft.
Upper Level:
2,896 Sq. Ft.
Total:
Unfinished Square Footage
707 Sq. Ft.
Garage:
43 Sq. Ft.
Porch:
121 Sq. Ft.
Patio:
633 Sq. Ft.
Bonus Room:
GARAGE
Side
Garage Location:
2
Garage Size:
Foundation
Slab
House And Ceiling Heights
10
First Floor Ceiling:
9
Second Floor Ceiling:
Framing Information
Stick
Roof Framing:
2x4 or 2x6
Exterior Wall Framing:
Roof Pitch
6:12
Primary:
Insulation (R)
Per IRC Climate Zones
Number of Rooms
4
Bedrooms:
3
Full Baths:
1
Half Baths:
