Plan Specification: HHF-4470

Total Square Footage: 1,029

Second Level: 1,029

Bedrooms: 1

Baths: 1

Garages: 3

Width: 39 ft Depth: 30 ft

Foundation: Slab Foundation


Pricing Options Click here...

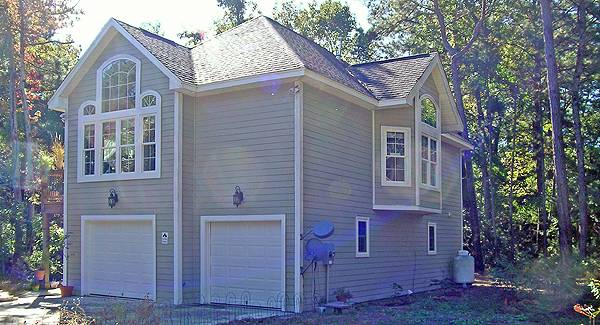

Main Plan Photo
© copyright by designer

Plan: HHF-4470

Among our most unusual yet popular home plans, this could be called an apartment for grandma, set atop a three-car garage with workshop. Grandma's floor plans, at 1,029 square feet, include a spacious Great Room and master bedroom, both enhanced by wonderful window arrangements. Included in the house plans, but not in the square footage, an alternate lower-floor plan replaces two of the garage bays with two bedrooms, a lounge and a full bath, making the home live like an inverted two-story.

ShareThis
SITE-WIDE SALE! 10% off all modifications or 10% off any plan package over $500 see details
Additional Images


Get Your House Plans In Minutes!

NEW PDFs Now! Plan packages available. Simply place your order, electronically sign the license agreement, and receive your PDFs within minutes in your inbox!
Plan Pricing Packages
HOUSE PLAN SETS

 Review Set with Material List    $179.00
 Upgrade From a Review Set    $506.00
 PDF BID SET   PDFs Now!   $525.00
 Four Set Package    $605.00
 Eight Set Package    $685.00
 PDF Construction Set - Single Use   PDFs Now!   $785.00
 Reproducible Vellum Set    $810.00
 CAD FILE - single use    $1,195.00
FOUNDATION OPTIONS

 Slab Foundation PDFs Now! available   $0.00
ADDITIONAL PLAN OPTIONS

 Additional Set  $50.00
 Material List (if available)  $75.00
 Mirror Reverse  $50.00
 Full Reverse Plans (If available)  $350.00
 Multiple Use License (For more than one home)  $250.00
 High Wind Structural Drawings  $150.00
PROMOTIONAL ITEMS

 Custom Adult T-shirt  $25.00
Size:
Color:
Best Price Guarantee, learn more
For more details about our plan packages click here



Email Us   Call Us   Live Chat

Key Features
  • Attached
  • Covered Front Porch
  • Deck
  • Drive-under
  • Fireplace
  • Great Room
  • Laundry 2nd Fl
  • Master Bdrm Upstairs
  • Nook / Breakfast Area
  • Peninsula / Eating Bar
  • Vaulted Ceilings
  • Walk-in Closet
  • Walk-in Pantry
Need to make changes?
Call for a free modification quote
877-895-5299
or use this quote form
Architect's Preferred Products:
ULTREX® Fiberglass Windows & Doors
Decorative Millwork and Columns
Classic-Craft® American Collection™ Fiberglass Entry Door
Prefinished Hardwood Flooring
Decorative Window Treatments

© copyright by designer
First Floor Plan:





© copyright by designer
Second Floor Plan:


© copyright by designer

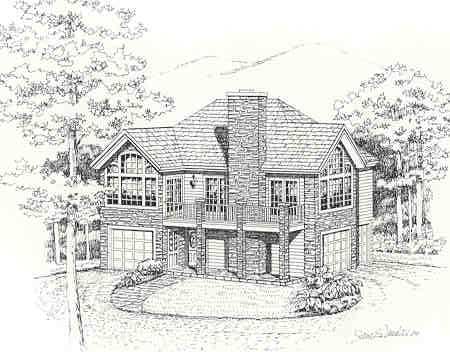

Front Photo:


© copyright by designer
Optional Floor Plan:

Top

Plan Details

General House Information
Number of Stories:2
Width:39' 2"
Depth:30' 0"
Dwelling Number:Garage
Bonus Access:1st Floor

Exterior Style
  • Mountain
  • Vacation
  • Beach
  • Lake

Number of Rooms
Bedrooms:1
Full Baths:1

Finished Square Footage
Upper Level: 1029 Sq. Ft.
Total: 1029 Sq. Ft.

Unfinished Square Footage
Garage:781 Sq. Ft.
Bonus Room:159 Sq. Ft.

Garage
Garage Type:Attached
Garage Size:3


Foundation
  • Slab Foundation

House And Ceiling Heights
First Floor Ceiling:8
Second Floor Ceiling:9
Maximum House Height:29' 2"

Framing Information
Roof Framing:Stick
Exterior Wall Framing:2x4

Roof Pitch
Primary:10: 12

Roof Load
Live:30
Dead:7

INSULATION
Exterior Wall:13
Interior Wall:0
Ceiling:30
Floor:19

Number of Rooms
Bedrooms:1
Full Baths:1
