Plan Specification: HHF-4654

Total Square Footage: 1,398

Main Level: 804

Second Level: 594

Garages: 3

Width: 36 ft Depth: 22 ft

Foundation: Slab

Pricing Options Click here...

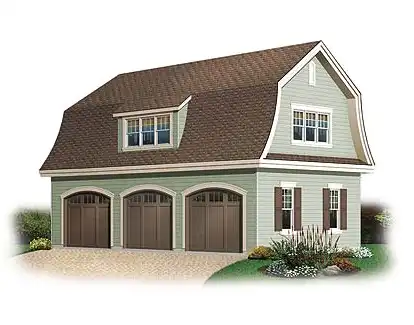

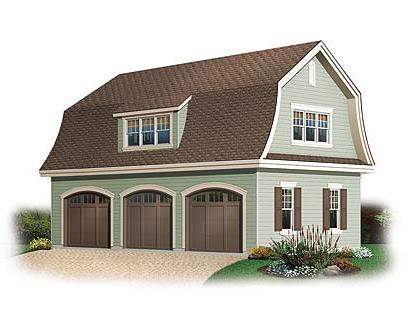

Main Plan Photo
© copyright by designer

Plan: HHF-4654

This three-car garage boasts an attractive exterior with a gambrel roof and a shed dormer. Upstairs, a versatile bonus area would make a great playroom or art studio.

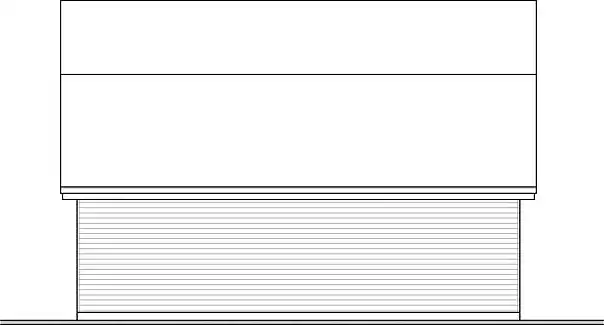

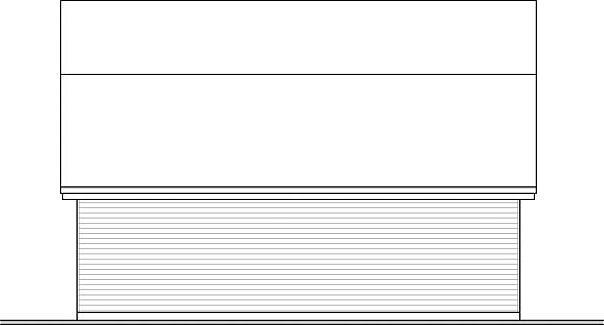

Additional Images

Plan Pricing Packages

 3 sets    $329.00
 5 sets    $349.00
 8 sets    $369.00
 PDF Files    $399.00
 Vellums    $399.00
 CAD Files    $599.00

 Custom Adult T-shirt  $25.00
Best Price Guarantee, learn more
For more details about our plan packages click here

Email Us   Call Us   Live Chat
Key Features
  • Bonus Room
  • Detached
  • Rear Porch
  • Slab
  • Storage Space
  • Unfinished Space
Need to make changes?
Call for a free modification quote
or use this quote form
Architect's Preferred Products:
ULTREX® Fiberglass Windows & Doors
Decorative Millwork and Columns
Classic-Craft® American Collection™ Fiberglass Entry Door
Prefinished Hardwood Flooring
Decorative Window Treatments

© copyright by designer

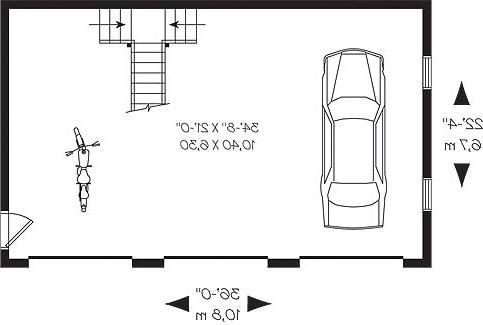

First level:

© copyright by designer

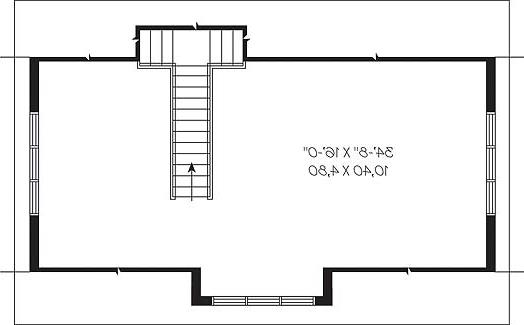

Second level:

Plan Details
General House Information
Number of Stories:2
Width:36' 0"
Depth:22' 4"
Dwelling Number:Garage
Bonus Access:2nd Floor
Exterior Style
  • Farm House
  • Builders
  • Mountain
  • Home Addition
  • Colonial
  • Country
Finished Square Footage
Main Level:804 Sq. Ft.
Upper Level: 594 Sq. Ft.
Total: 1398 Sq. Ft.
Unfinished Square Footage
Garage:804 Sq. Ft.
  • Garage Type:
Garage Size:3
  • Slab
House And Ceiling Heights
First Floor Ceiling:9.6
Second Floor Ceiling:8.6
Maximum House Height:25' 4"
Framing Information
Roof Framing:Truss
Exterior Wall Framing:2x6
Roof Pitch
Exterior Wall:20
Interior Wall:0
