House Plan: DFD-4870

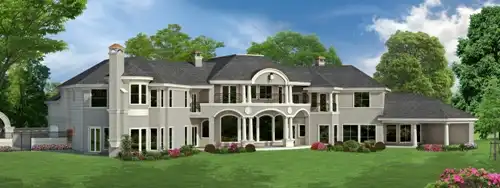

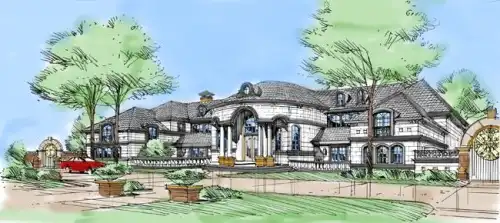

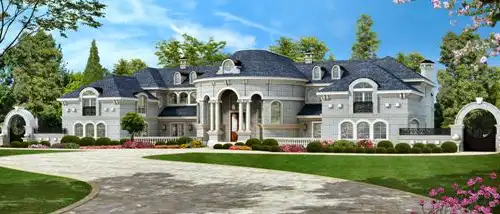

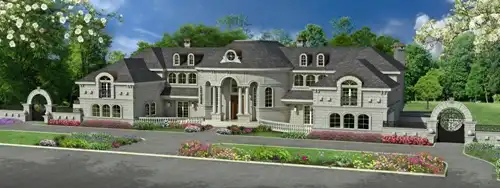

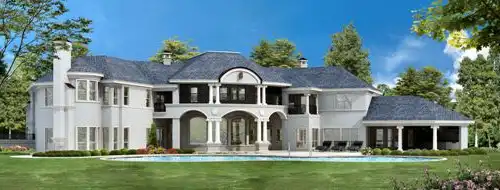

See All 5 Photos > (photographs may reflect modified homes)
© copyright by designer
SQ FT
10,639
BEDS
6
BATHS
7.5
STORIES
3
CARS
4
HOUSE PLANS SALE
START AT  $5,567.50
For questions and help, live chat, email or call us at 877-895-5299
Floor Plans
Click to Zoom In on Floor Plan

House Plan 4870
House Plan Pricing
STEP 1 Select Your Package

5 Printed Sets


Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

5 Printed Sets $6,550
Five printed sets of house plans

PDF Single Build


Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

PDF Single Build $7,150
Most recommended package

CAD Single Build


2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

CAD Single Build $8,995
2D electronic editable computer files
STEP 2 Need To Reverse This Plan?
STEP 3 CHOOSE YOUR FOUNDATION
STEP 4 OPTIONAL ADD-ONS
Subtotal
$6550
FREE SHIPPING

Plan Details
See All Details
Finished Square Footage
5,890 Sq. Ft.
Main Level:
4,015 Sq. Ft.
Upper Level:
734 Sq. Ft.
Third Level:
10,639 Sq. Ft.
Total:
Room Details
6
Bedrooms:
7
Full Baths:
2
Half Baths:
General House Information
3
Number of Stories:
140' 0"
Width:
94' 0"
Depth:
Single
Dwelling Number:
Unfinished Square Footage
1267 Sq. Ft.
Garage:
152 Sq. Ft.
Porch:
597 Sq. Ft.
Deck:
525 Sq. Ft.
Patio:
544 Sq. Ft.
Bonus Room:
GARAGE
Front
Garage Location:
4
Garage Size:
Exterior Style
Mediterranean
Traditional
Tuscan
Collections
Luxury
Old House Classics
Open Floor Plan
Outdoor Living
Foundation
Crawlspace
Slab
Framing Information
Stick
Roof Framing:
2x6
Exterior Wall Framing:
Insulation (R)
0
Exterior Wall:
0
Interior Wall:
0
Ceiling:
0
Floor:
House And Ceiling Heights
11
First Floor Ceiling:
10
Second Floor Ceiling:
35' 0"
Maximum House Height:
Key Features
2 Story Volume
Attached
Butler's Pantry
Country Kitchen
Covered Front Porch
Covered Rear Porch
Dining Room
Double Vanity Sink
Family Room
Fireplace
Formal LR
Front Porch
Guest Suite
Home Office
Kitchen Island
Laundry 1st Fl
Library/Media Rm
Master Bdrm Main Floor
Nook / Breakfast Area
Open Floor Plan
Rear Porch
Separate Tub and Shower
Side-entry
Sitting Area
Slab
