Plan Specification: HHF-4936

Total Square Footage: 12,371

Main Level: 7,170

Second Level: 4,077

Bedrooms: 6

Baths: 6        Half: 3

Garages: 5

Width: 136 ft Depth: 130 ft

Foundation: Basement Option, Crawl Space Option, Slab


Pricing Options Click here...

Main Plan Photo
© copyright by designer

Plan: HHF-4936

Drawn on Old World Italian styles, this plan features evocative details, such as broadly overhanging, arched entry and Moorish, arched windows and columns along with a barreled, tile roof lined with deeply carved brackets. This home needs to be sited to take advantage of amenity rear views. The home is designed so that each room captures a view while left and right side entries increase the pattern of circulation through the guest wings and Servant areas of the estate. The rear pool courtyard with balconies, provides an opportunity to beautify the interior with an exterior living area, including fireplace. With dual rotunda stairs in the Grand Foyer, this is truly the "Estate" of your dreams. There are too many areas and rooms to describe. This home is for the most discriminating client.

ShareThis
Additional Images

Get Your House Plans In Minutes!

NEW PDFs Now! Plan packages available. Simply place your order, electronically sign the license agreement, and receive your PDFs within minutes in your inbox!
Plan Pricing Packages
HOUSE PLAN SETS

 Study Plans - PDF    $125.00
 REPRODUCIBLES    $3,000.00
 PDF File Package   PDFs Now!   $3,000.00
 CAD FILES    $6,000.00
FOUNDATION OPTIONS

 Slab  $0.00
 Basement Option  $675.00
 Crawl Space Option  $675.00
ADDITIONAL PLAN OPTIONS

 Mirror Reverse  $15.00
 Builder's sales flyer  $45.00
 Builder's Marketing Package  $100.00
PROMOTIONAL ITEMS

 Custom Adult T-shirt  $25.00
Size:
Color:
Best Price Guarantee, learn more
For more details about our plan packages click here



Email Us   Call Us   Live Chat

Key Features
  • 2 Master Suites
  • 2 Story Volume
  • Arches
  • Attached
  • Basement
  • Bonus Room
  • Breezeway
  • Butler's Pantry
  • Courtyard
  • Covered Front Porch
  • Covered Rear Porch
  • Crawlspace
  • Deck
  • Dining Room
  • Double Vanity Sink
  • Exercise Room
  • Family Room
  • Fireplace
  • Formal LR
  • Foyer
  • Great Room
  • Guest Suite
  • His and Hers Master Closets
  • Home Office
  • In-law Suite
  • Kitchen Island
  • Laundry 1st Fl
  • Library/Media Rm
  • Loft / Balcony
  • Master Bdrm Main Floor
  • Master Bdrm Upstairs
  • Mud Room
  • Nook / Breakfast Area
  • Open Floor Plan
  • Oversized
  • Peninsula / Eating Bar
  • Rec Room
  • Screened Porch/Sunroom
  • Separate Tub and Shower
  • Sitting Area
  • Slab
  • Split Bedrooms
  • Storage Space
  • Walk-in Closet
  • Walk-in Pantry
  • With Living Space
  • Workshop
Need to make changes?
Call for a free modification quote
877-895-5299
or use this quote form
Architect's Preferred Products:
ULTREX® Fiberglass Windows & Doors
Decorative Millwork and Columns
Classic-Craft® American Collection™ Fiberglass Entry Door
Prefinished Hardwood Flooring
Decorative Window Treatments

© copyright by designer

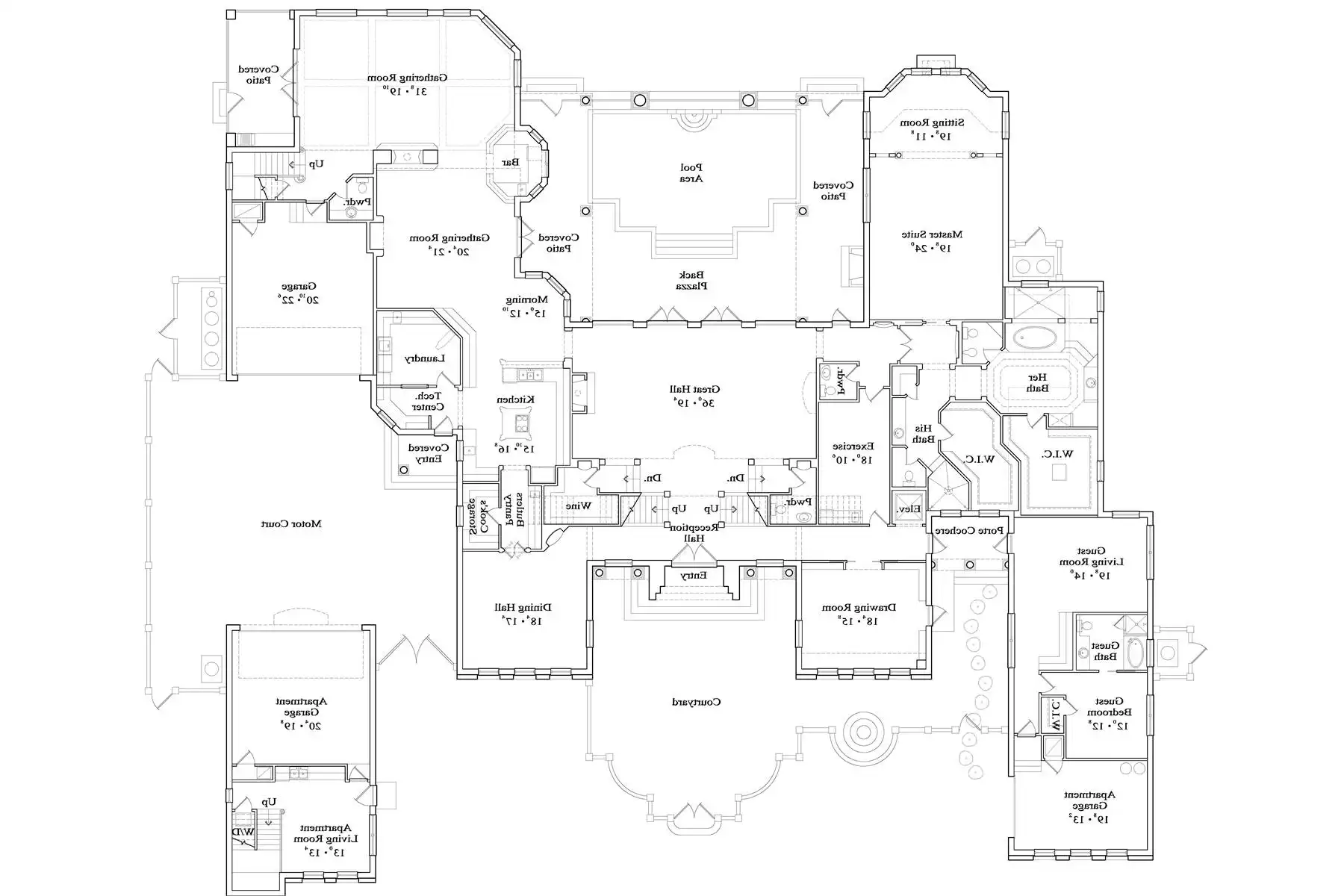

First Floor Plan:





© copyright by designer

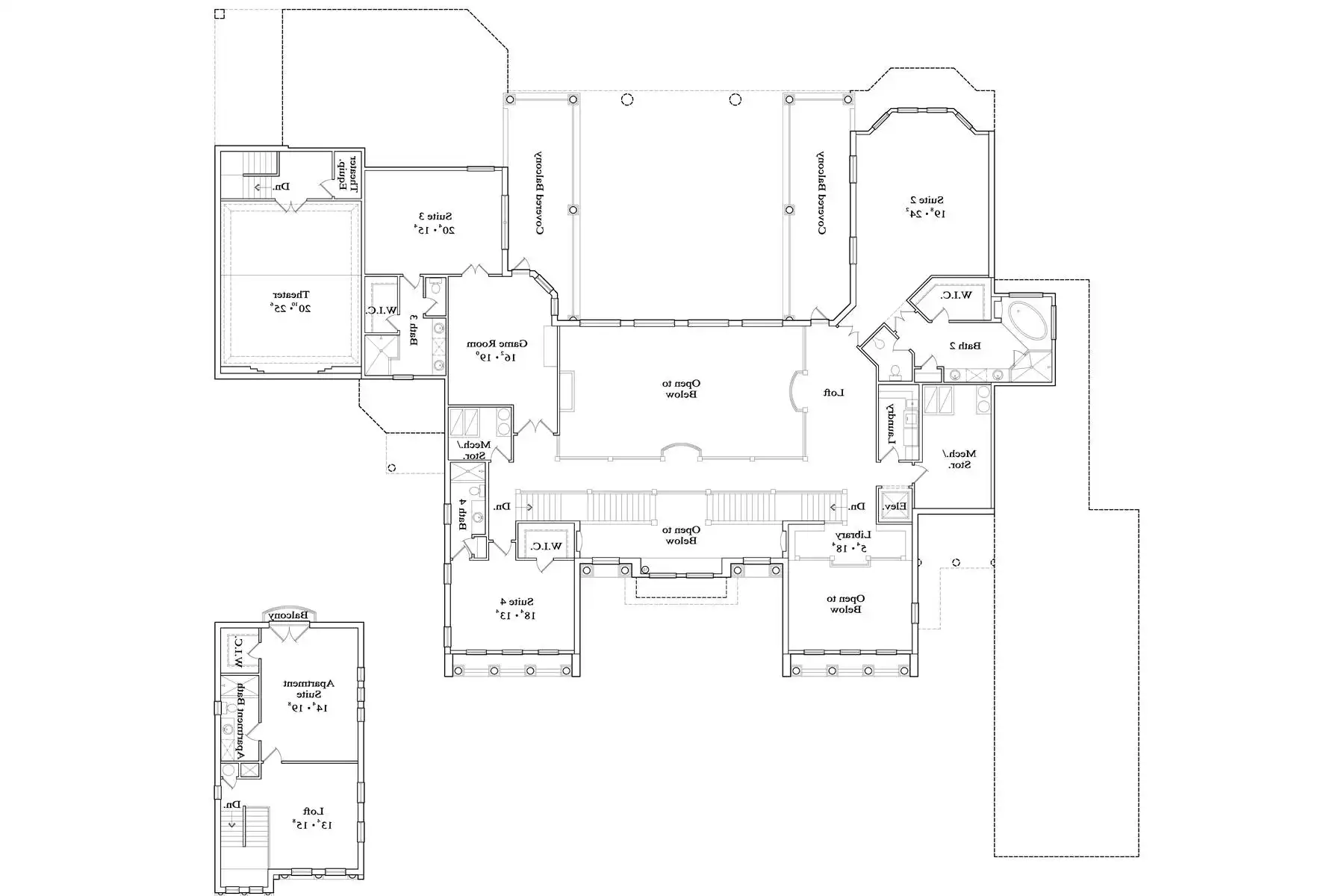

Second Floor Plan:

Top

Plan Details

General House Information
Number of Stories:2
Width:136' 8"
Depth:130' 8"
Dwelling Number:Single
Bonus Access:2nd Floor

Exterior Style
  • Mediterranean
  • European
  • Tuscan
  • Florida
  • Concrete

Facade
  • Stucco

Number of Rooms
Bedrooms:6
Full Baths:6
Half Baths:3

Finished Square Footage
Main Level:7170 Sq. Ft.
Upper Level: 4077 Sq. Ft.
Total: 12371 Sq. Ft.

Unfinished Square Footage
Garage:1347 Sq. Ft.
Porch:475 Sq. Ft.
Deck:610 Sq. Ft.
Patio:804 Sq. Ft.
Bonus Room:1124 Sq. Ft.

Garage
  • Garage Type:
Garage Size:5


Foundation
  • Basement Option
  • Crawl Space Option
  • Slab

House And Ceiling Heights
First Floor Ceiling:12
Second Floor Ceiling:10
Maximum House Height:35' 0"

Framing Information
Roof Framing:Combination
Exterior Wall Framing:8" Block/Wood

Roof Pitch
Primary:5:12

Roof Load
Live:20
Dead:20
Wind:120

INSULATION
Exterior Wall:0
Interior Wall:0
Ceiling:32
Floor:0

Number of Rooms
Bedrooms:6
Full Baths:6
Half Baths:3
