Plan: 4940

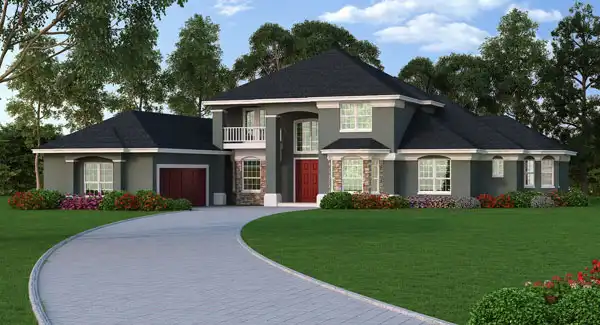

This beautiful home is designed to impress with its tall entryway, and double doors with windows above. Distinctive details we've included throughout this home include a curved staircase in the foyer and tray ceilings in the Master Bedroom. We've used bay windows in the Master, Dining Room and Den as well as the upstairs bedrooms to allow lots of light to brighten up the rooms. The Master Bedroom features a huge walk-in closet, double vanities, garden tub, walk in shower and bidet in the water closet. French doors open both the Living and Family Rooms to the covered patio. Formal entertaining is a treat in the Dining Room which is accented by columns and a tray ceiling. This home is a joy both for formal entertaining and family gatherings.
Pin It
More plans by this designer/architect
ShareThis
Purchase Plans

© copyright by designer
First Floor Plan:


Need to make changes?
Call for a free modification quote
877-895-5299 or LIVE CHAT NOW
or use this quote form
© copyright by designer
Rear Elevation:


© copyright by designer
Second Floor Plan:

Plan Specification
Total Square Footage: 4,384
Main Level: 3,152
Second Level: 1,232
Bedrooms: 6
Baths: 6 Half: 1
Garages: 2
Width/Depth: 82 ft / 82 ft
Foundation: Basement Option - 1-2 week turnaround, Crawl Space Option - 1-2 week turnaround, Slab
Get Your House Plans In Minutes!
NEW PDFs Now! Plan packages available. Simply place your order, electronically sign the license agreement, and receive your PDFs within minutes in your inbox!
House Plan Pricing
$99.00
$1,190.00
$1,400.00
PDFs Now! $1,400.00
$2,800.00
More details about our plan packages
Foundation Options
$0.00
$450.00
$675.00
Additional Plan Options
$45.00
$15.00
$45.00
$75.00
Promotional Items
$25.00
Size:
Color:
Best Price Guarantee, learn more
Live Chat  |  Email
Key Features
  • 2 Story Volume
  • Arches
  • Covered Front Porch
  • Covered Rear Porch
  • Dining Room
  • Double Vanity Sink
  • Family Room
  • Fireplace
  • Formal LR
  • Foyer
  • Guest Suite
  • His and Hers Master Closets
  • Kitchen Island
  • Laundry 1st Fl
  • Loft / Balcony
  • Master Bdrm Main Floor
  • Nook / Breakfast Area
  • Open Floor Plan
  • Peninsula / Eating Bar
  • Rear Porch
  • Separate Tub and Shower
  • Sitting Area
  • Split Bedrooms
  • Storage Space
  • Vaulted Ceilings
  • Walk-in Closet
  • Walk-in Pantry
  • Workshop
Plan Details

General House Information
Number of Stories:2
Width:82' 8"
Depth:82' 4"
Dwelling Number:Single
Bonus Access:None

Exterior Style
  • Mediterranean
  • European
  • Tuscan
  • Florida
  • Concrete

Facade
  • Stucco

Number of Rooms
Bedrooms:6
Full Baths:6
Half Baths:1

Finished Square Footage
Main Level:3152 Sq. Ft.
Upper Level: 1232 Sq. Ft.
Total: 4384 Sq. Ft.

Unfinished Square Footage
Garage:730 Sq. Ft.
Porch:68 Sq. Ft.
Deck:71 Sq. Ft.
Patio:425 Sq. Ft.

Garage
  • Garage Type:
Garage Size:2

Foundation
  • Basement Option - 1-2 week turnaround
  • Crawl Space Option - 1-2 week turnaround
  • Slab

House And Ceiling Heights
First Floor Ceiling:10
Second Floor Ceiling:10
Maximum House Height:30' 0"

Framing Information
Roof Framing:Slab
Exterior Wall Framing:8" Block

Roof Pitch
Primary:7:12

Roof Load
Live:20
Dead:20
Wind:90

INSULATION
Exterior Wall:19
Interior Wall:0
Ceiling:32
Floor:0

Number of Rooms
Bedrooms:6
Full Baths:6
Half Baths:1
