Plan Specification: HHF-5030

Total Square Footage: 2,802

Main Level: 2,293

Second Level: 509

Bedrooms: 4

Baths: 3

Garages: 2

Width: 48 ft Depth: 74 ft

Foundation: Basement Option, Crawl Space Option, Slab


Pricing Options Click here...

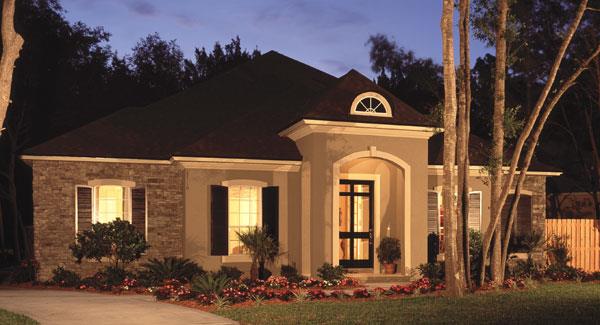

Main Plan Photo
© copyright by designer

Plan: HHF-5030

Open enough to throw a large party and private enough to constitute a quiet sanctuary-this home promises the best of both worlds. With nearly all living space concentrated on the main floor, the homes family room acts as an architectural centerpiece and the perfect space to gather. In the family room-a unique, open dining room with vaulted ceilings makes economical use of space and encourages social interaction. Just off the family room, traffic breezes into the kitchen and adjoining breakfast nook, with updates appliances and plenty of build-ins.

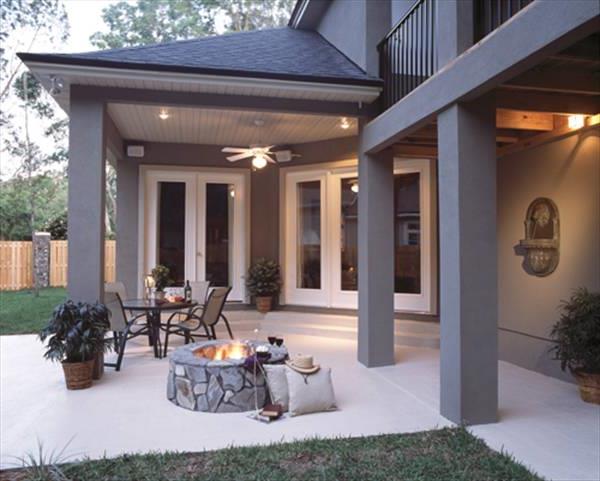

Boasting four bedrooms, this home also features an outdoor covered patio with fire pit and an overlooking upstairs balcony belonging to the upstairs bonus room (or fourth bedroom), which counts itself as the only upstairs space and features its own private bath. An ideal retreat for the homeowner who enjoys company as much as solitude: this home places its attention on clean lines and open space.

ShareThis
Treat yourself to 10% off all house plan packages, over $500 see details
Additional Images


Get Your House Plans In Minutes!

NEW PDFs Now! Plan packages available. Simply place your order, electronically sign the license agreement, and receive your PDFs within minutes in your inbox!
Plan Pricing Packages
HOUSE PLAN SETS

 Study Plans - PDF    $99.00
 FIVE SETS OF BONDPRINTS    $790.00
 REPRODUCIBLES    $1,000.00
 PDF File Package   PDFs Now!   $1,000.00
 CAD FILES    $2,000.00
FOUNDATION OPTIONS

 Slab  $0.00
 Basement Option  $675.00
 Crawl Space Option  $675.00
ADDITIONAL PLAN OPTIONS

 Additional sets  $45.00
 Mirror Reverse  $15.00
 Builder's sales flyer  $45.00
 Builder's Marketing Package  $75.00
PROMOTIONAL ITEMS

 Custom Adult T-shirt  $25.00
Size:
Color:
Best Price Guarantee, learn more
For more details about our plan packages click here



Email Us   Call Us   Live Chat

Key Features
  • Arches
  • Attached
  • Bonus Room
  • Covered Rear Porch
  • Dining Room
  • Double Vanity Sink
  • Family Room
  • Fireplace
  • Great Room
  • His and Hers Master Closets
  • Home Office
  • Laundry 1st Fl
  • Master Bdrm Main Floor
  • Nook / Breakfast Area
  • Open Floor Plan
  • Peninsula / Eating Bar
  • Rear Porch
  • Separate Tub and Shower
  • Split Bedrooms
  • Unfinished Space
  • Walk-in Closet
  • Walk-in Pantry
Need to make changes?
Call for a free modification quote
877-895-5299
or use this quote form
Architect's Preferred Products:
ULTREX® Fiberglass Windows & Doors
Decorative Millwork and Columns
Classic-Craft® American Collection™ Fiberglass Entry Door
Prefinished Hardwood Flooring
Decorative Window Treatments

© copyright by designer
First Floor Plan:





© copyright by designer
Bonus Room:

Top

Plan Details

General House Information
Number of Stories:2
Width:48' 0"
Depth:74' 0"
Dwelling Number:Single
Bonus Access:1st Floor

Exterior Style
  • European
  • Mediterranean
  • Contemporary
  • Florida

Facade
  • Stucco

Number of Rooms
Bedrooms:4
Full Baths:3

Finished Square Footage
Main Level:2293 Sq. Ft.
Upper Level: 509 Sq. Ft.
Total: 2802 Sq. Ft.

Unfinished Square Footage
Garage:510 Sq. Ft.

Garage
Garage Type:Attached
Garage Size:2


Foundation
  • Basement Option
  • Crawl Space Option
  • Slab

House And Ceiling Heights
First Floor Ceiling:10-12
Second Floor Ceiling:9
Maximum House Height:26' 6"

Framing Information
Roof Framing:Truss
Exterior Wall Framing:2x4

Roof Pitch
Primary:8:12

INSULATION
  • Per IRC Climate Zones

Number of Rooms
Bedrooms:4
Full Baths:3
