House Plan: DFD-5036

See All 1 Photos > (photographs may reflect modified homes)
© copyright by designer
SQ FT
3,412
BEDS
4
BATHS
3
STORIES
1
CARS
3
PLANS FROM $1,450
For questions and help, live chat, email or call us at 877-895-5299

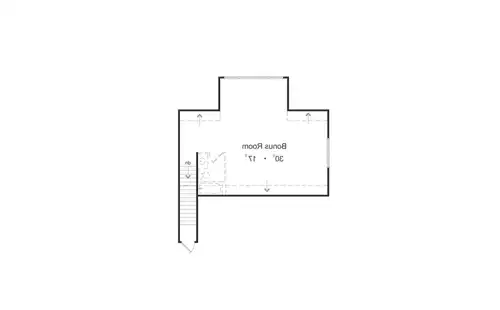

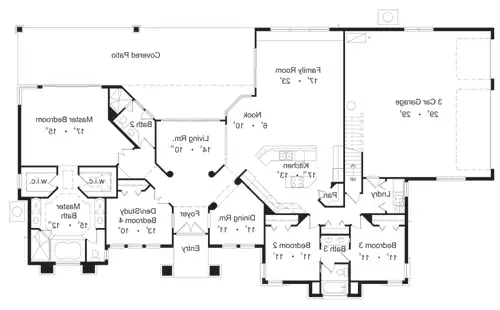

Floor Plans
Click to Zoom In on Floor Plan

House Plan 5036
House Plan Pricing
STEP 1 Select Your Package

PDF Bid Set


Home plans stamped "NOT FOR CONSTRUCTION" for cost estimating and bidding purposes only; a minimum 5 set plan package must be purchased within 90 days for a license to build plan set; a credit will be applied towards your house plan upgrade

PDF Bid Set $800
Immediate Delivery!
Digital set of plans for bidding purposes only

PDF Single Build


Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

PDF Single Build $1,450
Immediate Delivery!
Most recommended package

5 Printed Sets


Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

5 Printed Sets $1,650
Five printed sets of house plans

5 Printed Sets + PDF


Digital plan emailed to you in PDF format that allows for printing copies on a home printer or local print shop and sharing with contractors, subs, decorators, and more. PLUS five printed sets shipped and delivered 3-5 business days.

5 Printed Sets + PDF $1,800
Immediate Delivery!
Digital plans plus 5 printed sets

CAD Single Build


2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

CAD Single Build $2,900
2D electronic editable computer files
STEP 2 CHOOSE YOUR FOUNDATION
STEP 3 OPTIONAL ADD-ONS
Subtotal
$1450
FREE SHIPPING

Plan Details
See All Details
Finished Square Footage
2,716 Sq. Ft.
Main Level:
696 Sq. Ft.
Upper Level:
3,412 Sq. Ft.
Total:
Room Details
4
Bedrooms:
3
Full Baths:
General House Information
1
Number of Stories:
96' 10"
Width:
54' 8"
Depth:
Single
Dwelling Number:
1st Floor
Bonus Access:
Unfinished Square Footage
932 Sq. Ft.
Garage:
GARAGE
Side
Garage Location:
3
Garage Size:
Exterior Style
Beach
Contemporary
European
Collections
Concrete
Florida
ICF
Luxury
Foundation
*Slab (Standard)
Framing Information
Truss
Roof Framing:
8" Block
Exterior Wall Framing:
Insulation (R)
Per IRC Climate Zones
Facade
Stone
Stucco
Stucco/Stone
Key Features
Attached
Rear Porch
Slab
