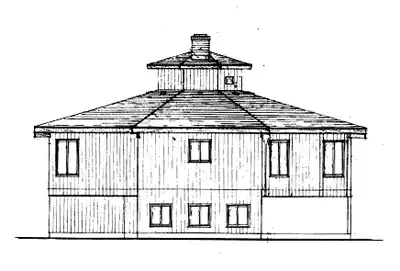

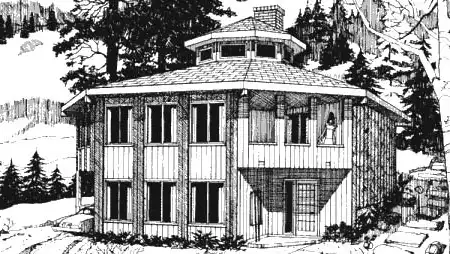

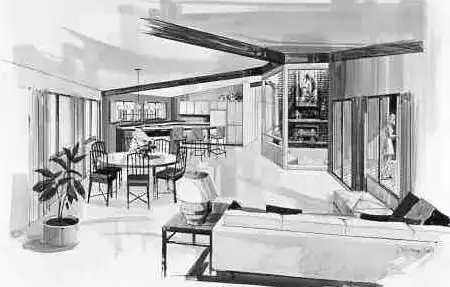

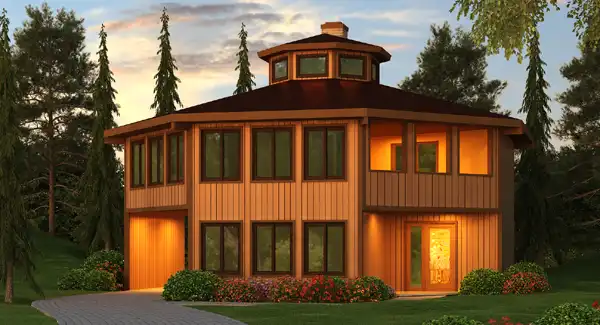

Front Rendering Front Rendering #2 Great Room Rear Elevation Alternate Part Plan Without Lower Level First Floor Plan Lower Level
© copyright by designer

Plan: 5114

Plan Specification
Total Square Footage: 2,028
Main Level: 1,203
Lower Level: 875
Bedrooms: 4
Baths: 3 Half: 0
Garages: 1
Width/Depth: 40 ft / 40 ft
Foundation: Slab Foundation
Pin It
© copyright by designer
Alternate Part Plan Without Lower Level:
Alternate Part Plan Without Lower Level
Need to make changes?
Call for a free modification quote
877-895-5299 or LIVE CHAT NOW
or use this quote form
© copyright by designer
First Floor Plan:
First Floor Plan
© copyright by designer
Lower Level:
Lower Level
More plans by this designer/architect
ShareThis
Add to Favorites
Purchase Plans
Get Your House Plans In Minutes!
NEW PDFs Now! Plan packages available. Simply place your order, electronically sign the license agreement, and receive your PDFs within minutes in your inbox!
House Plan Pricing
PDFs Now! $605.00
$705.00
$795.00
PDFs Now! $895.00
$920.00
More details about our plan packages
Foundation Options
$0.00
Additional Plan Options
$50.00
$75.00
$50.00
$150.00
Best Price Guarantee, learn more
Live Chat  |  Email
Key Features
• Carport
• Country Kitchen
• Deck
• Fireplace
• Foyer
• Great Room
• Inverted Living
• Laundry 1st Fl
• Master Bdrm Main Floor
• Open Floor Plan
• Peninsula / Eating Bar
• Slab
• Vaulted Ceilings
Plan Details
General House Information
2
Number of Stories:
40' 6"
Width:
40' 6"
Depth:
Single
Dwelling Number:
Exterior Style
Lake
Modern
Cottage
Mountain
Vacation
Facade
OwnersChoice
Number of Rooms
4
Bedrooms:
3
Full Baths:
Finished Square Footage
1,203 Sq. Ft.
Main Level:
875 Sq. Ft.
Lower Level:
2,028 Sq. Ft.
Total:
Unfinished Square Footage
340 Sq. Ft.
Garage:
153 Sq. Ft.
Deck:
GARAGE
1
Garage Size:
Foundation
Slab Foundation
House And Ceiling Heights
sloped
First Floor Ceiling:
27' 9"
Maximum House Height:
Framing Information
Stick
Roof Framing:
2x4
Exterior Wall Framing:
Roof Pitch
3.5
Primary:
Roof Load
30
Live:
10
Dead:
Insulation (R)
Per IRC Climate Zones
Number of Rooms
4
Bedrooms:
3
Full Baths:
