Plan Specification: HHF-5123

Total Square Footage: 12,720

Main Level: 7,689

Second Level: 5,031

Bedrooms: 6

Baths: 6        Half: 3

Garages: 5

Width: 152 ft Depth: 105 ft

Foundation: Slab


Pricing Options Click here...

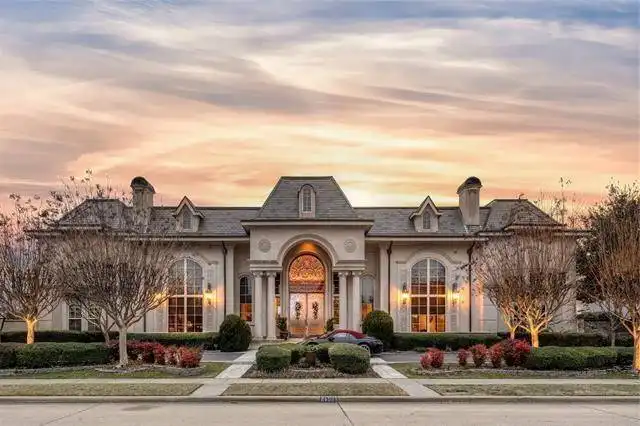

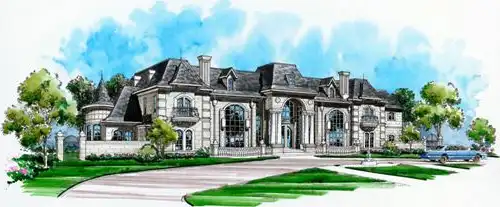

Main Plan Photo
© copyright by designer

Plan: HHF-5123

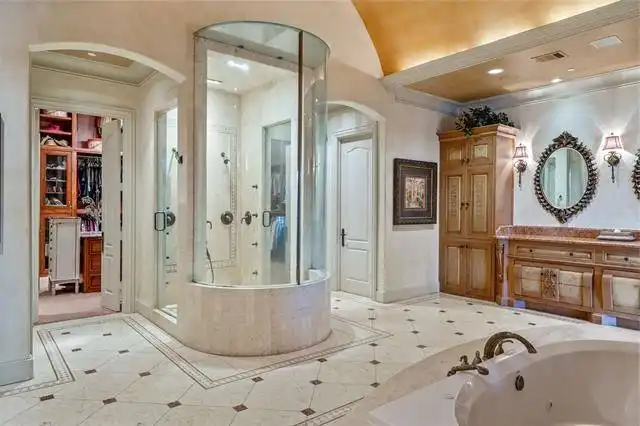

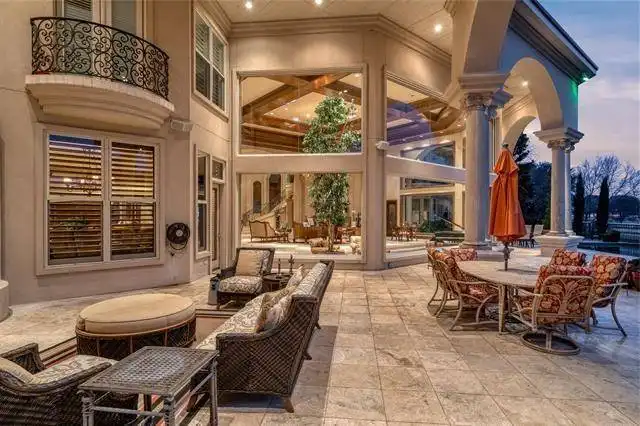

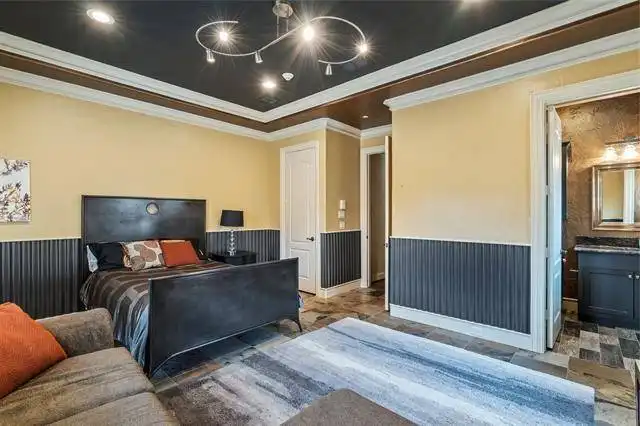

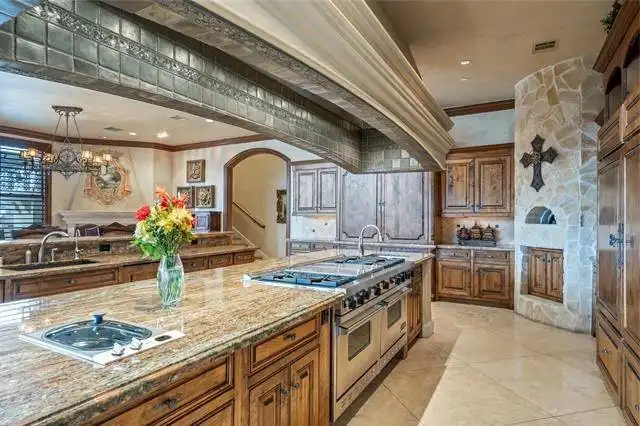

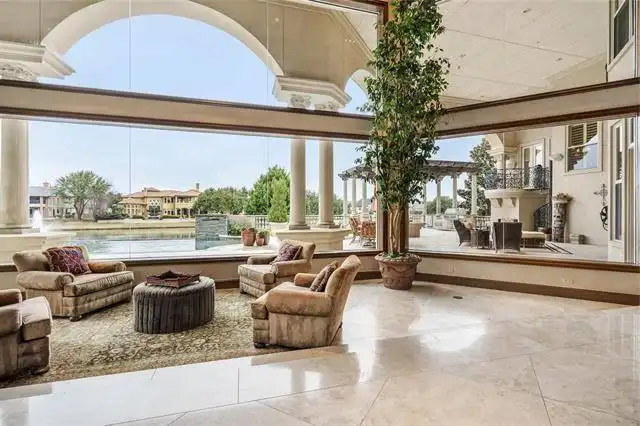

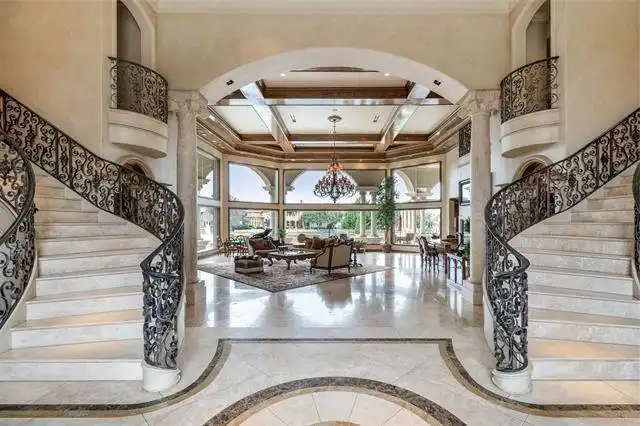

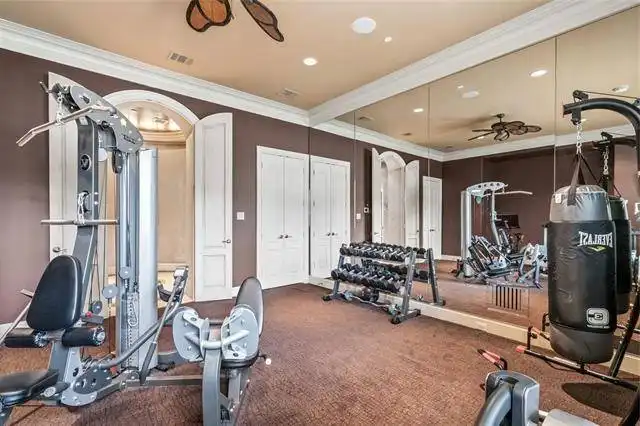

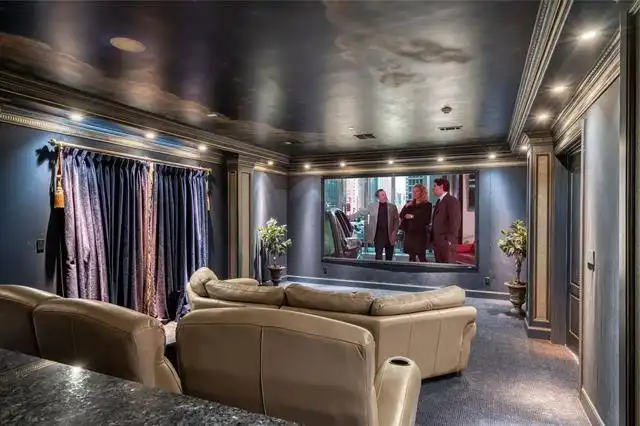

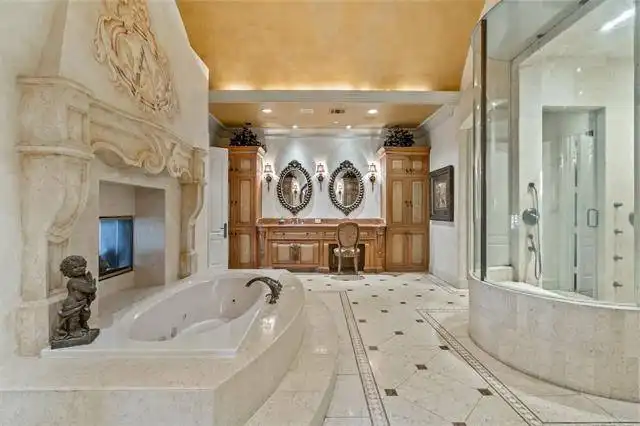

This magnificent Mediterranean luxury mansion house plan is stunning. Balconies, rotundas, large decorative pillars, and stunning ceiling treatments will draw you in. When you enter the two-story foyer, the double curved staircases will greet you. A few steps down to the right will place you in the living room with its fireplace flanked by built-ins. There is a veranda to the front of the living room and the alcove to the rear that leads to the arcade. Through the rotunda, you can reach the exercise room with circular windows and access to the lush landscaped yard. Between the exercise and living rooms is the media room with bar, closet and built-ins. At the back of this cluster is a guest room with bayed windows, private bar, and full lavish bath with his and hers vanities, walk-in closet, separate shower and tub. The large sunken great room with its 23' ceiling provides access to and views of the terrace. The family gathering area consists of the kitchen, breakfast area and great room. The great room's warming fireplace helps keep this area cozy. The gourmet kitchen provides a free-standing island for additional counter space, with a breakfast bar that can be shared with the great room and breakfast area. The breakfast area also offers a warming fireplace and access to the terrace. An aquarium sits between the kitchen and great room. To the left of the foyer and in the front of this house plan, is the formal dining room with the veranda to the front and the alcove to the rear, through the alcove to the left is the rotunda that leads to the quiet coffered ceiling study with built-ins, built-ins, built-ins - and a warming fireplace. A private court sits outside the study. A utility room with built-in desk, galleys, plenty of storage spaces, a five-car side-entry garage, and spiral staircase that goes to the master suite's second story balcony complete this main level.. On the second level of this luxury mansion house plan, four family bedrooms with walk-in closets, full baths, and balconies, share space with a den, game room with built-ins and a bar, and the luxurious master suite. The luxurious master suite has a bayed window, trey ceiling, lavish master bath with barrel vaulted ceiling, his and hers vanities, separate shower, whirlpool, and large wardrobe with mirror, built-ins, storage and a utility room. This completes this luxury mansion house plan.

ShareThis
Additional Images

Plan Pricing Packages
HOUSE PLAN SETS

 One Set    $5,995.00
 Eight Sets    $8,500.00
 Plan PDF Package    $9,680.00
 CAD File    $14,520.00
FOUNDATION OPTIONS

 Slab  $0.00
ADDITIONAL PLAN OPTIONS

 Additional Sets  $200.00
 Artist Rendering  $1,000.00
PROMOTIONAL ITEMS

 Custom Adult T-shirt  $25.00
Size:
Color:
Best Price Guarantee, learn more
For more details about our plan packages click here



Email Us   Call Us   Live Chat

Key Features
  • 2 Story Volume
  • Arches
  • Attached
  • Butler's Pantry

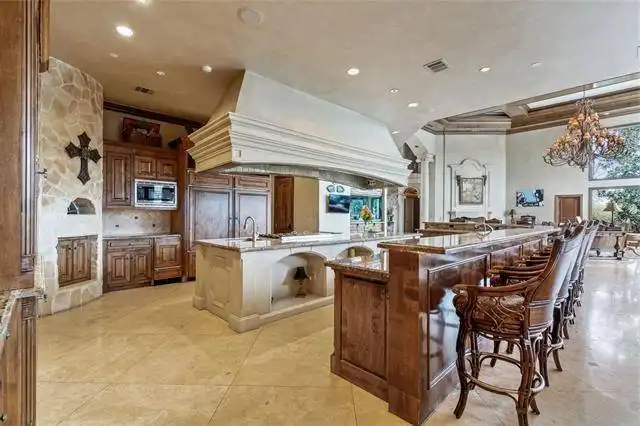

  • Country Kitchen
  • Covered Front Porch
  • Covered Rear Porch
  • Deck
  • Dining Room
  • Exercise Room
  • Family Room
  • Fireplace
  • Formal LR
  • Foyer
  • Front Porch
  • Guest Suite
  • Home Office
  • Kitchen Island
  • Laundry 1st Fl
  • Library/Media Rm
  • Loft / Balcony
  • Master Bdrm Upstairs
  • Nook / Breakfast Area
  • Open Floor Plan
  • Rear Porch
  • Separate Tub and Shower
  • Side-entry
  • Sitting Area
  • Slab
  • Vaulted Ceilings
Need to make changes?
Call for a free modification quote
877-895-5299
or use this quote form

© copyright by designer

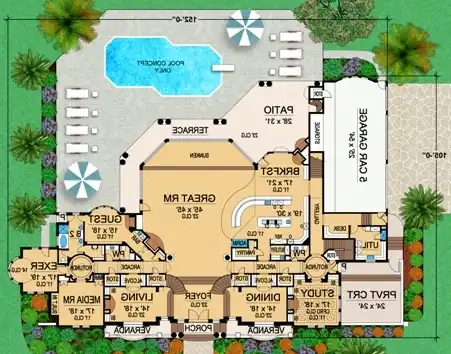

First Floor:





© copyright by designer

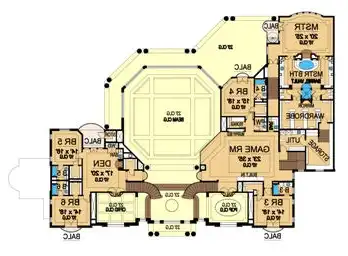

Second Floor:

Top

Plan Details

General House Information
Number of Stories:2
Width:152' 0"
Depth:105' 0"
Dwelling Number:Single

Exterior Style
  • Mediterranean
  • Traditional

Number of Rooms
Bedrooms:6
Full Baths:6
Half Baths:3

Finished Square Footage
Main Level:7689 Sq. Ft.
Upper Level: 5031 Sq. Ft.
Total: 12720 Sq. Ft.

Unfinished Square Footage
Garage:1514 Sq. Ft.

Garage
  • Garage Type:
Garage Size:5


Foundation
  • Slab

House And Ceiling Heights
First Floor Ceiling:11
Second Floor Ceiling:10
Maximum House Height:35' 0"

Framing Information
Roof Framing:Stick
Exterior Wall Framing:2x6

Roof Pitch
Primary:18
Secondary:24

INSULATION
Exterior Wall:0
Interior Wall:0
Ceiling:0
Floor:0

Number of Rooms
Bedrooms:6
Full Baths:6
Half Baths:3
