Plan Specification: HHF-5130

Total Square Footage: 5,799

Main Level: 2,960

Second Level: 2,839

Bedrooms: 3

Baths: 3

Garages: 3

Width: 54 ft Depth: 96 ft

Foundation: Slab


Pricing Options Click here...

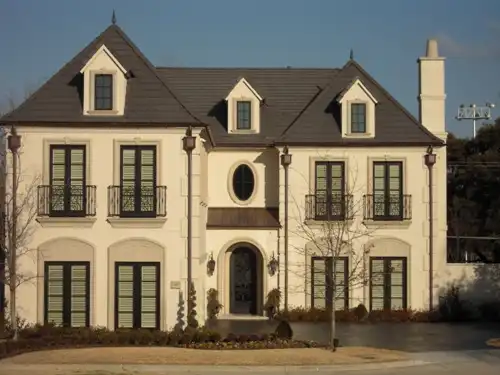

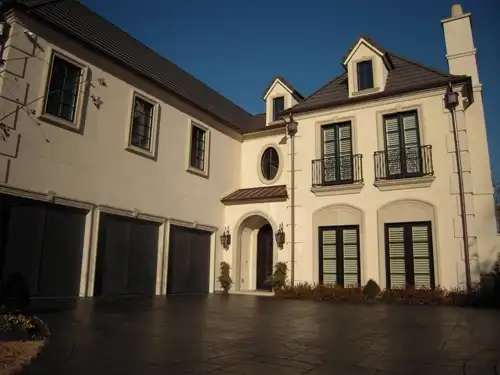

Main Plan Photo
© copyright by designer

Plan: HHF-5130

This luxury mansion house plan offers very large rooms The groin vaulted foyer is flanked by the elegant living room with warming fireplace and the formal dining room with butlery, pantry and wine room for ease in serving. Beyond the living room is the study with built-ins and elevator access. The curved staircase winds around the music room with patio access and leads into the gallery. The family room provides built-ins and a fireplace. The breakfast area's fireplace is complimented by built-in window seats, while a mini office sits off to the side. The kitchen offers a free-standing island and breakfast bar to share with the breakfast area and family room. Upstairs, two family bedrooms with walk-in closets and full baths share space with the game room, loft and bonus room. The master suite has a lavish bath with his and hers vanities, separate shower, tub, and large wardrobe. There are stunning views of the groin vault ceiling, completing this luxury mansion house plan.

ShareThis
SITE-WIDE SALE! 10% off all modifications or 10% off any plan package over $500 see details

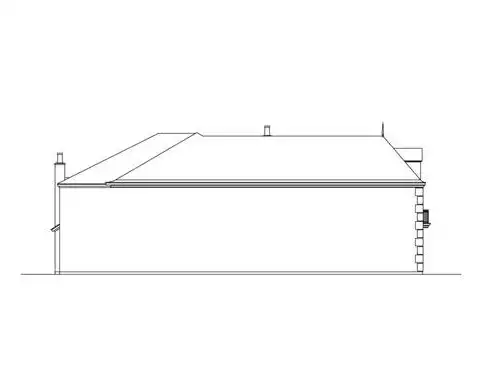

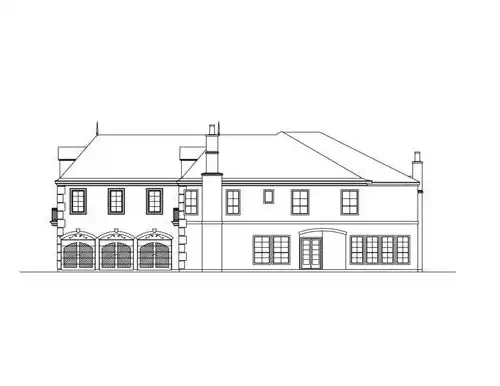

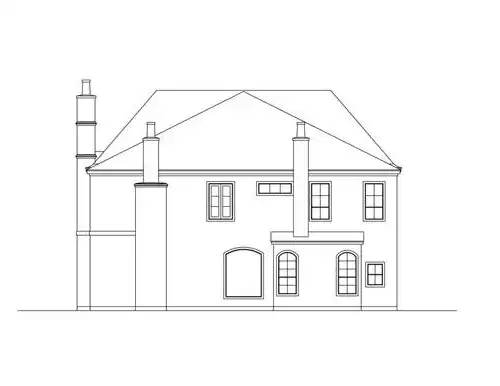

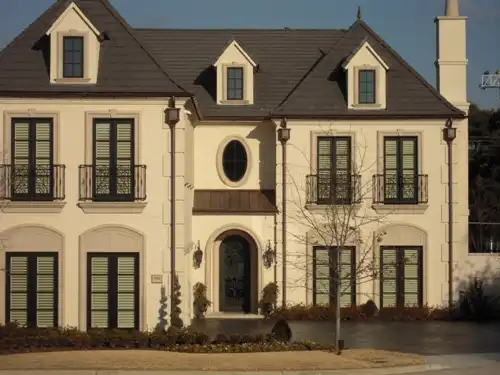

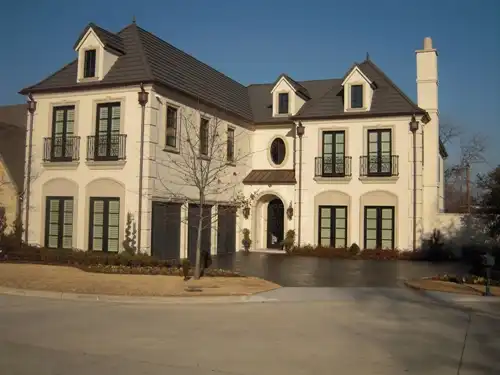

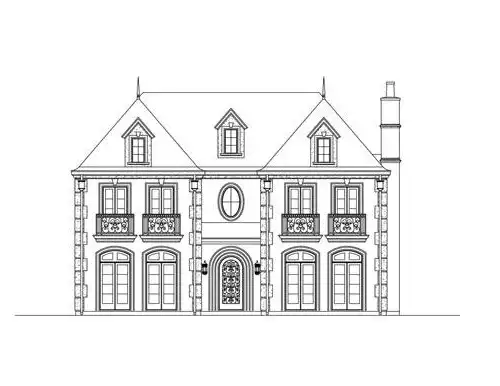

Additional Images

Plan Pricing Packages
HOUSE PLAN SETS

 One Set    $1,615.00
 Eight Sets    $2,520.00
 Plan PDF Package    $2,620.00
 CAD File    $3,950.00
FOUNDATION OPTIONS

 Slab  $0.00
ADDITIONAL PLAN OPTIONS

 Additional Sets  $150.00
PROMOTIONAL ITEMS

 Custom Adult T-shirt  $25.00
Size:
Color:
Best Price Guarantee, learn more
For more details about our plan packages click here



Email Us   Call Us   Live Chat

Key Features
  • 2 Story Volume
  • Arches
  • Attached
  • Covered Front Porch
  • Covered Rear Porch
  • Dining Room
  • Family Room
  • Fireplace
  • Formal LR
  • Foyer
  • Front Porch
  • Home Office
  • Kitchen Island
  • Laundry 1st Fl
  • Library/Media Rm
  • Master Bdrm Upstairs
  • Nook / Breakfast Area
  • Open Floor Plan
  • Rear Porch
  • Separate Tub and Shower
  • Side-entry
  • Slab
  • Vaulted Ceilings
Need to make changes?
Call for a free modification quote
877-895-5299
or use this quote form

© copyright by designer

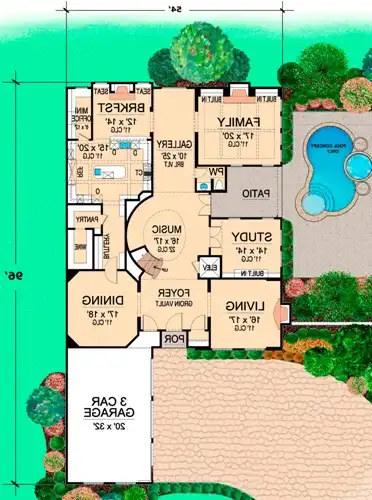

First Floor:





© copyright by designer

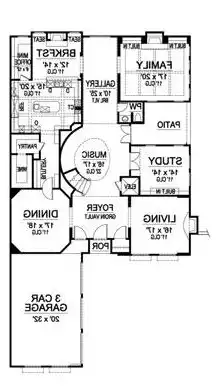

First Floor 2:


© copyright by designer

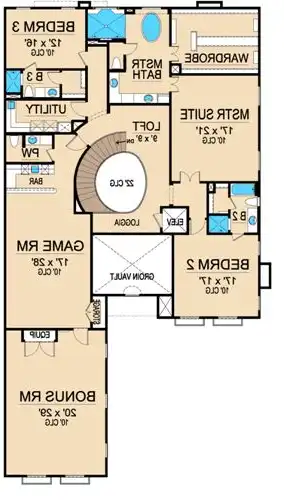

Second Floor:


© copyright by designer

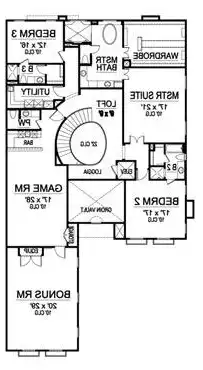

Second Floor 2:

Top

Plan Details

General House Information
Number of Stories:2
Width:54' 0"
Depth:96' 0"
Dwelling Number:Single

Exterior Style
  • Traditional

Number of Rooms
Bedrooms:3
Full Baths:3

Finished Square Footage
Main Level:2960 Sq. Ft.
Upper Level: 2839 Sq. Ft.
Total: 5799 Sq. Ft.

Unfinished Square Footage
Garage:694 Sq. Ft.
Bonus Room:593 Sq. Ft.

Garage
  • Garage Type:
Garage Size:3


Foundation
  • Slab

House And Ceiling Heights
First Floor Ceiling:11
Second Floor Ceiling:10
Maximum House Height:37' 0"

Framing Information
Roof Framing:Stick
Exterior Wall Framing:2x4

Roof Pitch
Primary:14
Secondary:6

INSULATION
Exterior Wall:0
Interior Wall:0
Ceiling:0
Floor:0

Number of Rooms
Bedrooms:3
Full Baths:3
