Plan Specification: HHF-5139

Total Square Footage: 1,745

Main Level: 1,745

Bedrooms: 3

Baths: 2

Garages: 2

Width: 63 ft Depth: 51 ft

Foundation: Basement, Crawl Space, Slab


Pricing Options Click here...

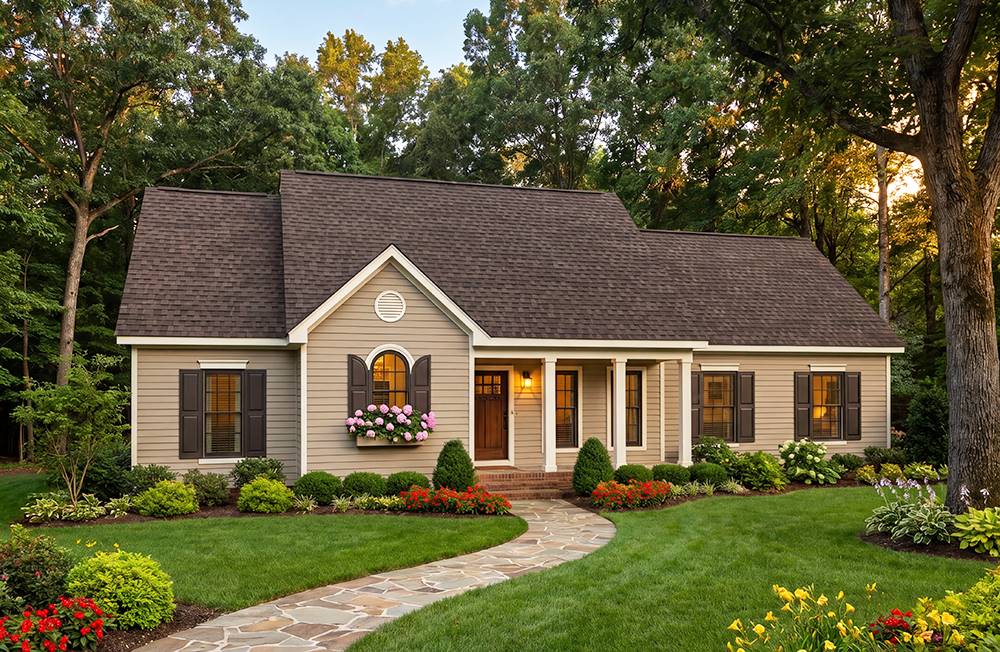

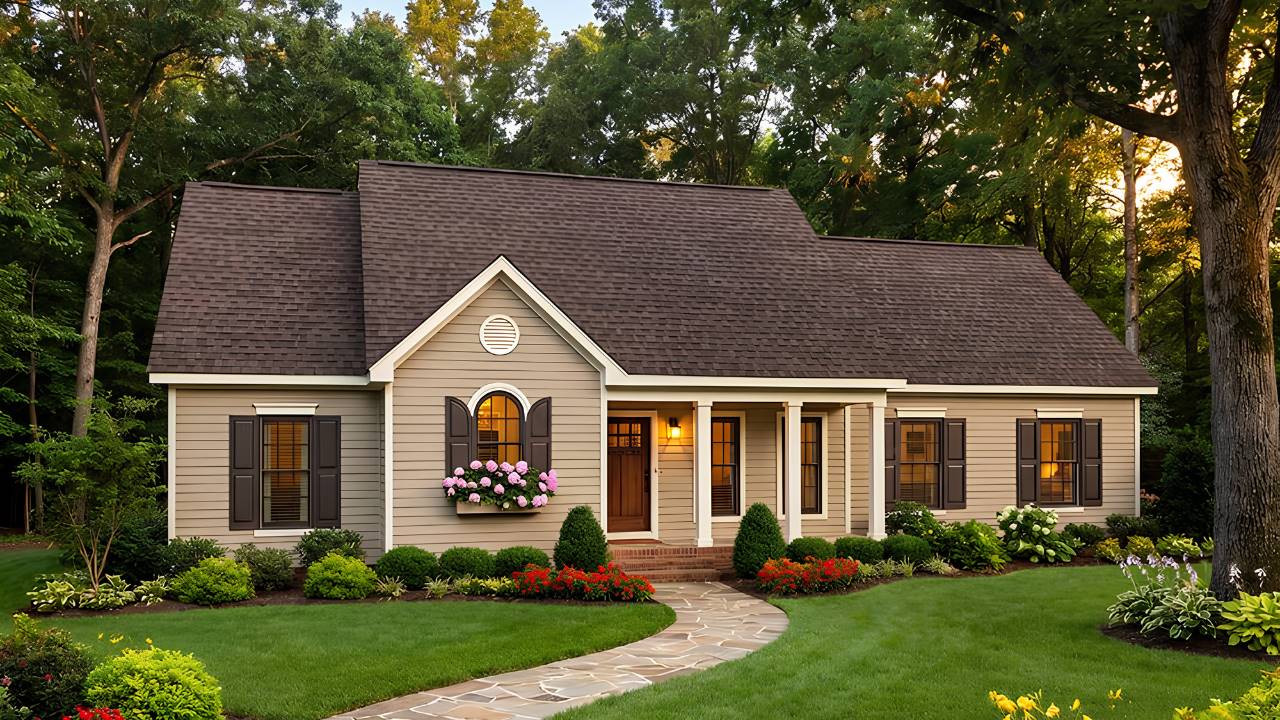

Main Plan Photo
© copyright by designer

Plan: HHF-5139

A sizeable dining area is framed with architectural columns and brings the kithchen and great room together into one flowing space. The layout offers split bedrooms, a den which could be a study/office or fourth bedroom. In the basement option and/or planning for the future space the den will be replaced by the stair(s). The future space offers an additonal 922 square feet for expansion.

ShareThis
Additional Images

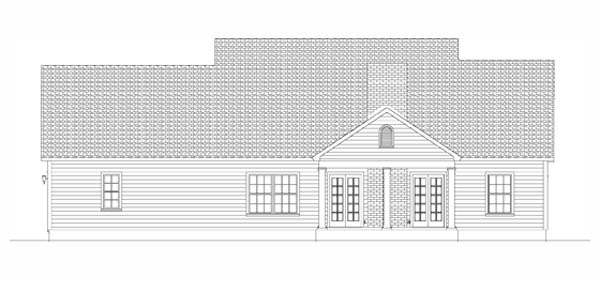

See all 2 photos and rear view
Plan Pricing Packages
HOUSE PLAN SETS
 One Set  $684.00
 Five Sets  $766.00
 Eight Sets  $821.00
 PDF File  $997.00
 Reproducible Set  $1,098.00
 CAD Files  $1,795.00
FOUNDATION OPTIONS
 Basement  $0.00
 Crawl Space  $0.00
 Slab  $0.00
ADDITIONAL PLAN OPTIONS
 Additional Sets  $55.00
 Materials List  $65.00
 Full Reverse  $225.00
 Mirror Reverse  $50.00
 2x6 Wall Conversion  $225.00
 Re-Use Fee  $325.00
PROMOTIONAL ITEMS
 Custom Adult T-shirt  $25.00
Size:
Color:
Best Price Guarantee, learn more
For more details about our plan packages click here



Email Us   Call Us   Live Chat

Key Features
  • Attached
  • Basement
  • Bonus Room
  • Covered Front Porch
  • Covered Rear Porch
  • Crawlspace
  • Double Vanity Sink
  • Fireplace
  • Foyer
  • Front Porch
  • Great Room
  • His and Hers Master Closets
  • Home Office
  • Laundry 1st Fl
  • Master Bdrm Main Floor
  • Open Floor Plan
  • Rear Porch
  • Separate Tub and Shower
  • Side-entry
  • Slab
  • Split Bedrooms
  • Storage Space
  • Unfinished Space
  • Walk-in Closet
Need to make changes?
Call for a free modification quote
877-895-5299
or use this quote form

© copyright by designer
First Floor Plan:





© copyright by designer
Second Floor Plan:

Top

Plan Details

General House Information
Number of Stories:1
Width:63' 0"
Depth:51' 0"
Dwelling Number:Single
Bonus Access:2nd Floor

Exterior Style
  • Traditional
  • Cottage
  • Country
  • Southern
  • Vacation

Facade
  • Siding

Number of Rooms
Bedrooms:3
Full Baths:2

Finished Square Footage
Main Level:1745 Sq. Ft.
Total: 1745 Sq. Ft.

Unfinished Square Footage
Garage:488 Sq. Ft.
Storage:68 Sq. Ft.
Porch:255 Sq. Ft.

Garage
Garage Type:Attached
Garage Size:2


Foundation
  • Basement
  • Crawl Space
  • Slab

House And Ceiling Heights
First Floor Ceiling:9
Second Floor Ceiling:0
Maximum House Height:25' 0"

Framing Information
Roof Framing:Stick
Exterior Wall Framing:2x4

Roof Pitch
Primary:8/12

Roof Load
Live:30
Dead:15

INSULATION
  • Per IRC Climate Zones

Number of Rooms
Bedrooms:3
Full Baths:2
