Plan Specification: HHF-5160

Total Square Footage: 4,064

Main Level: 2,672

Second Level: 1,392

Bedrooms: 4

Baths: 3        Half: 1

Garages: 3

Width: 80 ft Depth: 57 ft

Foundation: Basement, Crawlspace, Slab


Pricing Options Click here...

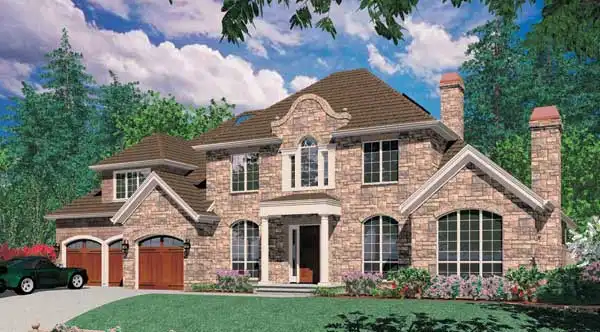

Main Plan Photo
© copyright by designer

Plan: HHF-5160

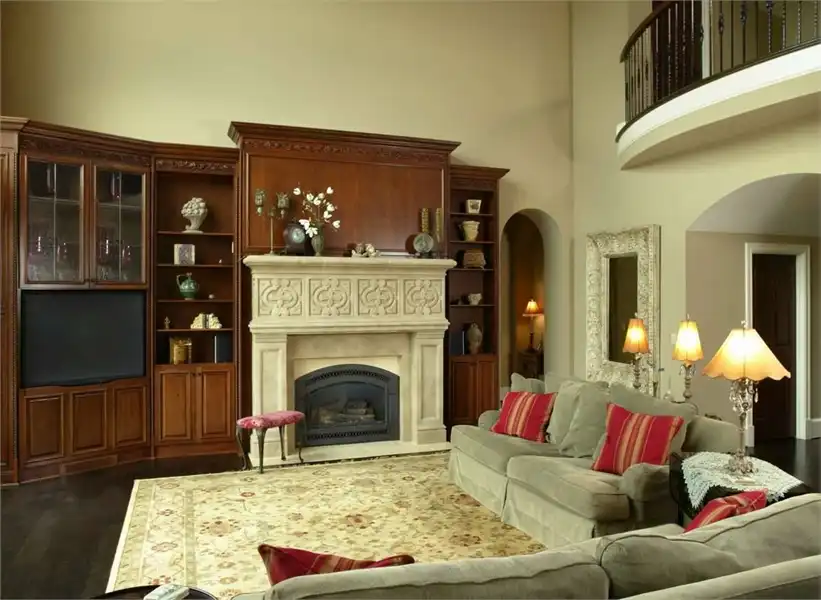

Stone exterior and boast-worthy detail will put this home on your short list of potential luxury designs. A columned front entry gains access to a formal two-story foyer with curved staircase, half-bath and formal rooms on each flank. The living room is vaulted and has a beamed ceiling and fireplace. The dining room enjoys a tray ceiling and is near the island kitchen with a butler's pantry in between. For everyday affairs, the gathering room also has a fireplace and two doors to the rear yard. A nook separates it from the kitchen. Tucked away on the main level is a fine master suite with vaulted salon, fireplace and amenity-filled bath. The walk-in closet features space for a mini washer/dryer and an ironing center. A three-car garage is reached via a service hall near the kitchen, which has a bench and half-bath.


ShareThis

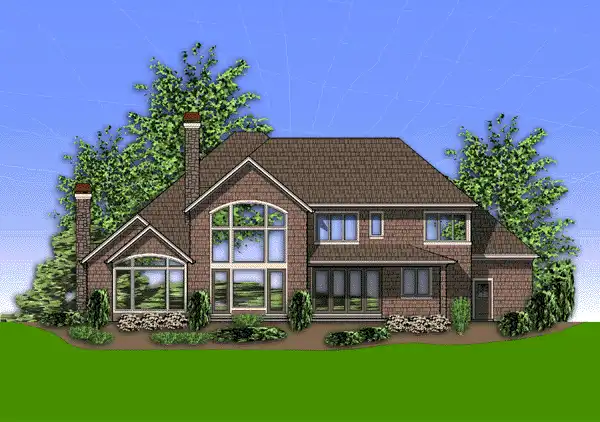

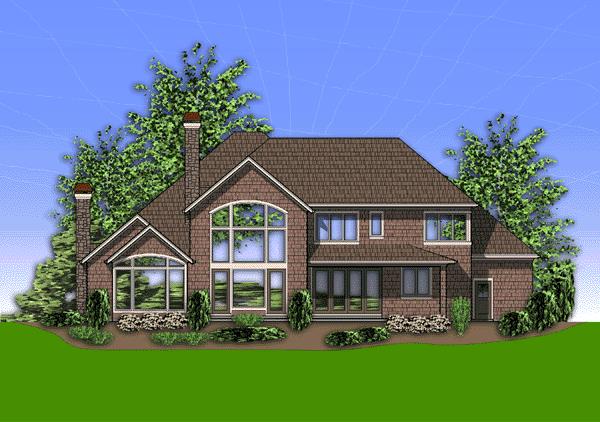

Additional Images

Plan Pricing Packages
HOUSE PLAN SETS

 Basic Package    $1,150.00
 Construction Package    $1,250.00
 Modification Package: PDF    $1,670.00
 Modification Package: CAD    $2,500.00
FOUNDATION OPTIONS

 Crawlspace  $0.00
 Slab  $185.00
 Basement  $350.00
PROMOTIONAL ITEMS

 Custom Adult T-shirt  $25.00
Size:
Color:
Best Price Guarantee, learn more
For more details about our plan packages click here



Email Us   Call Us   Live Chat

Key Features
  • 2 Story Volume
  • Attached
  • Basement
  • Butler's Pantry
  • Crawlspace
  • Dining Room
  • Double Vanity Sink
  • Family Room
  • Fireplace
  • Formal LR
  • Foyer
  • Home Office
  • Kitchen Island
  • Laundry 1st Fl
  • Laundry 2nd Fl
  • Loft / Balcony
  • Master Bdrm Main Floor
  • Mud Room
  • No Porch
  • Nook / Breakfast Area
  • Open Floor Plan
  • Separate Tub and Shower
  • Slab
  • Split Bedrooms
  • Upstairs utility
  • Vaulted Ceilings
  • Walk-in Closet
  • Walk-in Pantry
Need to make changes?
Call for a free modification quote
877-895-5299
or use this quote form
Architect's Preferred Products:
ULTREX® Fiberglass Windows & Doors
Decorative Millwork and Columns
Classic-Craft® American Collection™ Fiberglass Entry Door
Prefinished Hardwood Flooring
Decorative Window Treatments

© copyright by designer

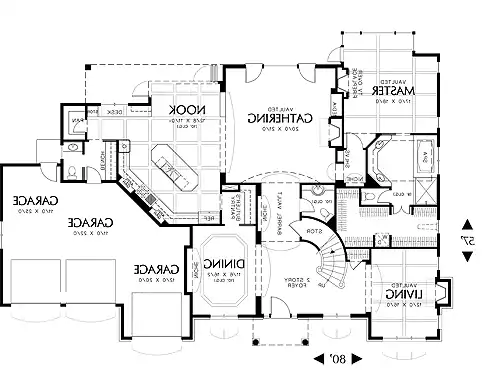

First Floor Plan:





© copyright by designer

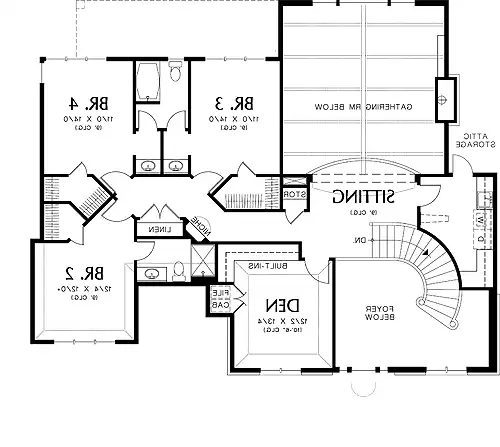

Second Floor Plan:

Top

Plan Details

General House Information
Number of Stories:2
Width:80' 0"
Depth:57' 0"
Dwelling Number:Single
Bonus Access:None

Exterior Style
  • Traditional
  • European
  • French Country
  • PDFs Fast!

Number of Rooms
Bedrooms:4
Full Baths:3
Half Baths:1

Finished Square Footage
Main Level:2672 Sq. Ft.
Upper Level: 1392 Sq. Ft.
Total: 4064 Sq. Ft.

Unfinished Square Footage
Garage:807 Sq. Ft.

Garage
Garage Type:Attached
Garage Size:3


Foundation
  • Basement
  • Crawlspace
  • Slab

House And Ceiling Heights
First Floor Ceiling:Varies
Second Floor Ceiling:9
Maximum House Height:32' 6"

Framing Information
Roof Framing:Stick
Exterior Wall Framing:2x6

Roof Pitch
Primary:10/12

Roof Load
Live:25
Dead:15
Wind:80

INSULATION
  • Per IRC Climate Zones

Number of Rooms
Bedrooms:4
Full Baths:3
Half Baths:1
