Plan Specification: HHF-5162

Total Square Footage: 2,367

ENERGY STAR

Main Level: 2,367

Bedrooms: 3

Baths: 2

Garages: 2

Width: 67 ft Depth: 63 ft

Foundation: Basement, Crawl Space, Slab Foundation


Pricing Options Click here...

Main Plan Photo
© copyright by designer

Plan: HHF-5162

This comfortable 3 bedroom ranch features all the great elements found in our classic Victorian plans, but it does so in an up-to-date, exciting, single level plan. Volume ceilings predominate throughout this great plan. Angled plans in the kitchen and great master suite are new age additions that make the home even more exciting.

ShareThis
Additional Images


Get Your House Plans In Minutes!

NEW PDFs Now! Plan packages available. Simply place your order, electronically sign the license agreement, and receive your PDFs within minutes in your inbox!
Plan Pricing Packages
HOUSE PLAN SETS

 PDF BID SET   PDFs Now!   $675.00
 Four Set Package    $775.00
 Eight Set Package    $895.00
 PDF Construction Set - Single Use   PDFs Now!   $995.00
 Reproducible Vellum Set    $1,025.00
 CAD FILE - single use    $1,545.00
FOUNDATION OPTIONS

 Crawl Space PDFs Now! available   $0.00
 Slab Foundation PDFs Now! available   $0.00
 Basement PDFs Now! available   $150.00
ADDITIONAL PLAN OPTIONS

 ENERGY STAR Plan Package  $275.00
 Additional Set  $50.00
 Material List (if available)  $75.00
 Mirror Reverse  $50.00
 Full Reverse Plans (If available)  $350.00
 Multiple Use License (For more than one home)  $250.00
 High Wind Structural Drawings  $150.00
PROMOTIONAL ITEMS

 Custom Adult T-shirt  $25.00
Size:
Color:
Best Price Guarantee, learn more
For more details about our plan packages click here



Email Us   Call Us   Live Chat

Key Features
  • Attached
  • Country Kitchen
  • Covered Front Porch
  • Dining Room
  • Double Vanity Sink
  • Fireplace
  • Foyer
  • Great Room
  • His and Hers Master Closets
  • Home Office
  • Kitchen Island
  • Laundry 1st Fl
  • Master Bdrm Main Floor
  • Nook / Breakfast Area
  • Separate Tub and Shower
  • Sitting Area
  • Split Bedrooms
  • Vaulted Ceilings
  • Walk-in Closet
  • Wraparound Porch
Need to make changes?
Call for a free modification quote
877-895-5299
or use this quote form

© copyright by designer
First Floor Plan:





© copyright by designer

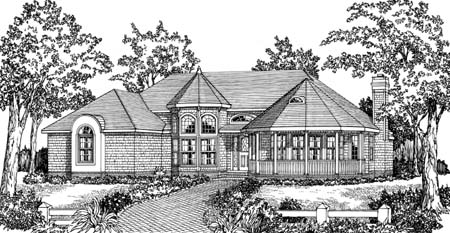

Front Photo:


© copyright by designer

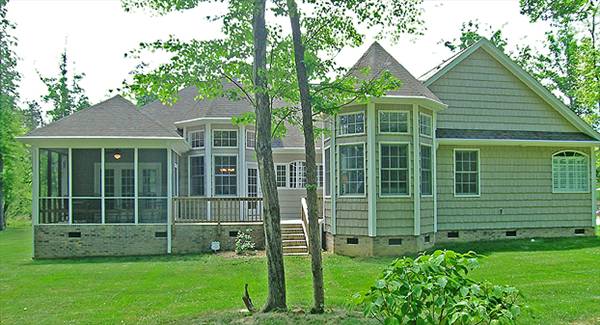

Rear Photo 2:

Top

Plan Details

General House Information
Number of Stories:1
Width:67' 0"
Depth:63' 10"
Dwelling Number:Single

Exterior Style
  • Country
  • Victorian
  • Ranch

Number of Rooms
Bedrooms:3
Full Baths:2

Finished Square Footage
Main Level:2367 Sq. Ft.
Total: 2367 Sq. Ft.

Unfinished Square Footage
Garage:478 Sq. Ft.
Porch:204 Sq. Ft.

Garage
Garage Type:Attached
Garage Size:2


Foundation
  • Basement
  • Crawl Space
  • Slab Foundation

House And Ceiling Heights
First Floor Ceiling:9
Second Floor Ceiling:0
Maximum House Height:23' 2"

Framing Information
Roof Framing:Stick
Exterior Wall Framing:2x4

Roof Pitch
Primary:10: 12
Secondary:14: 12

Roof Load
Live:30
Dead:7

INSULATION
Exterior Wall:13
Interior Wall:0
Ceiling:30
Floor:19

Number of Rooms
Bedrooms:3
Full Baths:2
