Plan: 5169

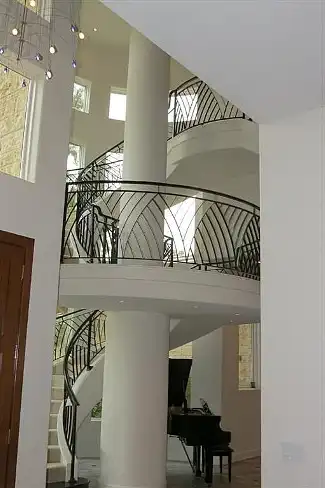

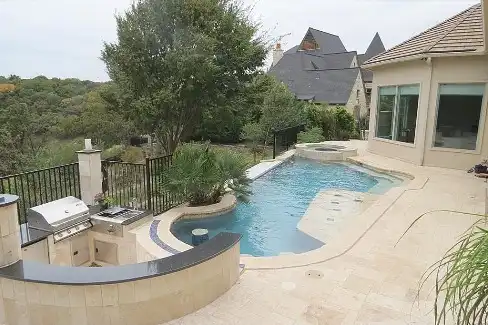

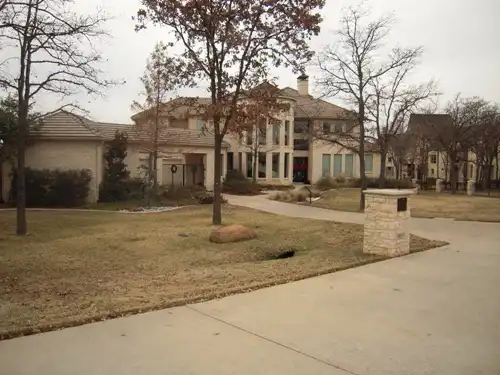

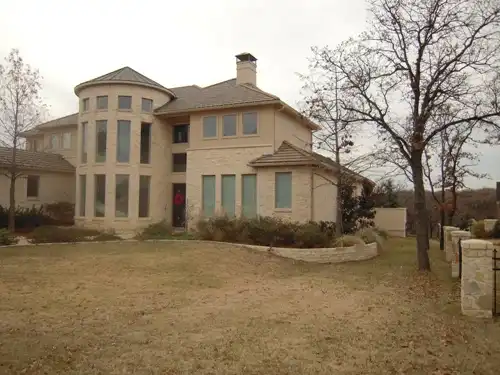

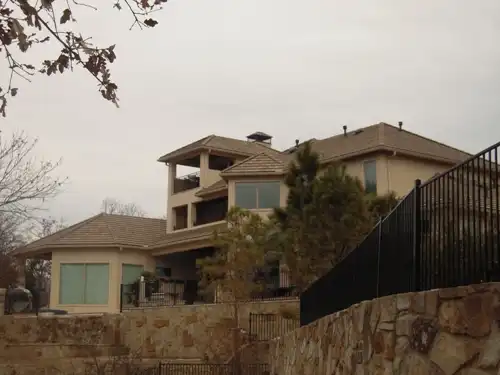

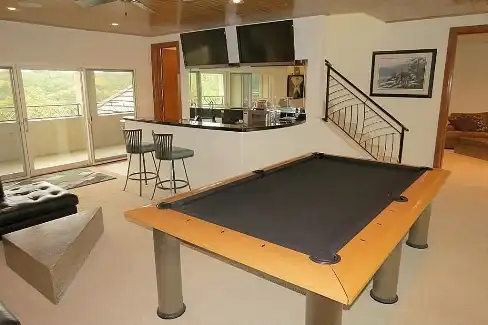

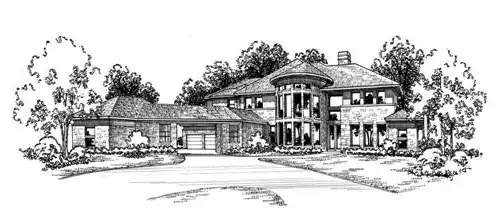

This Mediterranean luxury mansion is stunning. The elegant foyer's spiral staircase makes for the rotunda-tower look to the exterior of this luxury mansion house plan. A quiet study with built-in desk and access to the master suite sits in the front corner of this home. The luxurious master suite boasts a private patio, trey ceiling, large master bath with his and hers vanities, separate shower, whirlpool, and a large wardrobe. The family room, dining room and kitchen are separated from one another only by the breakfast bar in the kitchen. A free-standing island provides extra counter space. The pantry and kitchen provide ease in serving those family dinners. Access to the patio with fireplace and (concept) pool can be achieved from the family room. Two garages, a two-car and a one-car garage sit on either side of the motor court. An exercise area facing the lush landscape out back completes the main level of this house plan. Upstairs, three family bedrooms with walk-in closets and full baths share space with a game room with built-ins, balcony access and a media room. A second balcony and viewing room complete this Mediterranean luxury mansion house plan.
Pin It
More plans by this designer/architect
Purchase Plans
© copyright by designer

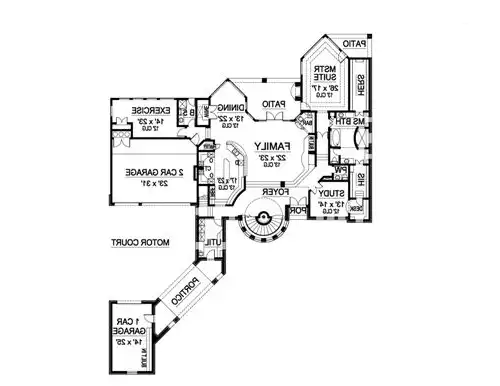

First Floor:

Need to make changes?
Call for a free modification quote
877-895-5299 or LIVE CHAT NOW
or use this quote form
© copyright by designer

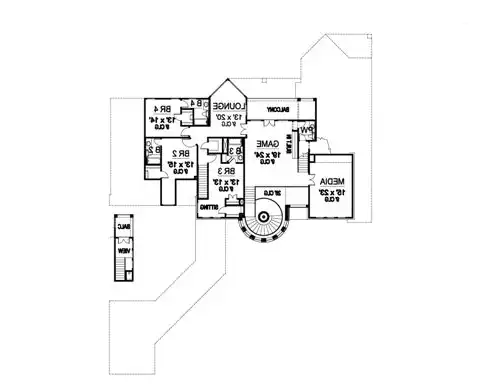

Second Floor:

© copyright by designer
First Floor 2:

© copyright by designer
Second Floor 2:

Plan Specification
Total Square Footage: 6,391
Main Level: 3,950
Second Level: 2,441
Bedrooms: 4
Baths: 5
Garages: 3
Width/Depth: 97 ft / 125 ft
Foundation: Crawl Space, Slab
House Plan Pricing
More details about our plan packages
Foundation Options
Additional Plan Options
Best Price Guarantee, learn more
Live Chat  |  Email
Key Features
  • 2 Story Volume
  • Arches
  • Attached
  • Country Kitchen
  • Covered Front Porch
  • Covered Rear Porch
  • Deck
  • Dining Room
  • Double Vanity Sink
  • Family Room
  • Fireplace
  • Foyer
  • Front Porch
  • Home Office
  • Kitchen Island
  • Laundry 1st Fl
  • Library/Media Rm
  • Master Bdrm Main Floor
  • Open Floor Plan
  • Rear Porch
  • Separate Tub and Shower
  • Side-entry
  • Slab
  • Vaulted Ceilings
  • Wine Cellar
Plan Details
General House Information
Number of Stories:2
Width:97' 0"
Depth:125' 0"
Dwelling Number:Single
Exterior Style
  • Mediterranean
  • Traditional
Number of Rooms
Full Baths:5
Finished Square Footage
Main Level:3950 Sq. Ft.
Upper Level: 2441 Sq. Ft.
Total: 6391 Sq. Ft.
Unfinished Square Footage
Garage:1246 Sq. Ft.
Porch:30 Sq. Ft.
Deck:261 Sq. Ft.
Patio:430 Sq. Ft.
