Plan Specification: HHF-5230

Total Square Footage: 1,728

ENERGY STAR

Main Level: 1,728

Bedrooms: 3

Baths: 2

Garages: 3

Width: 55 ft Depth: 48 ft

Foundation: Basement, Crawlspace, Slab


Pricing Options Click here...

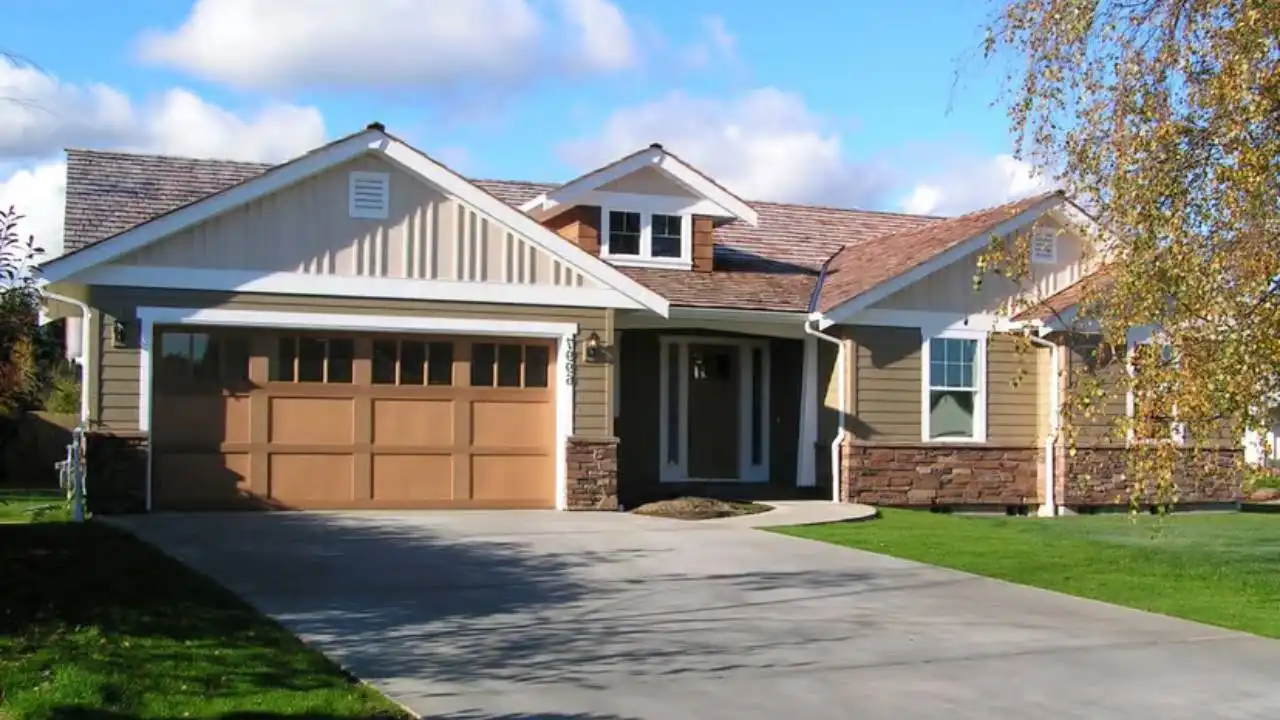

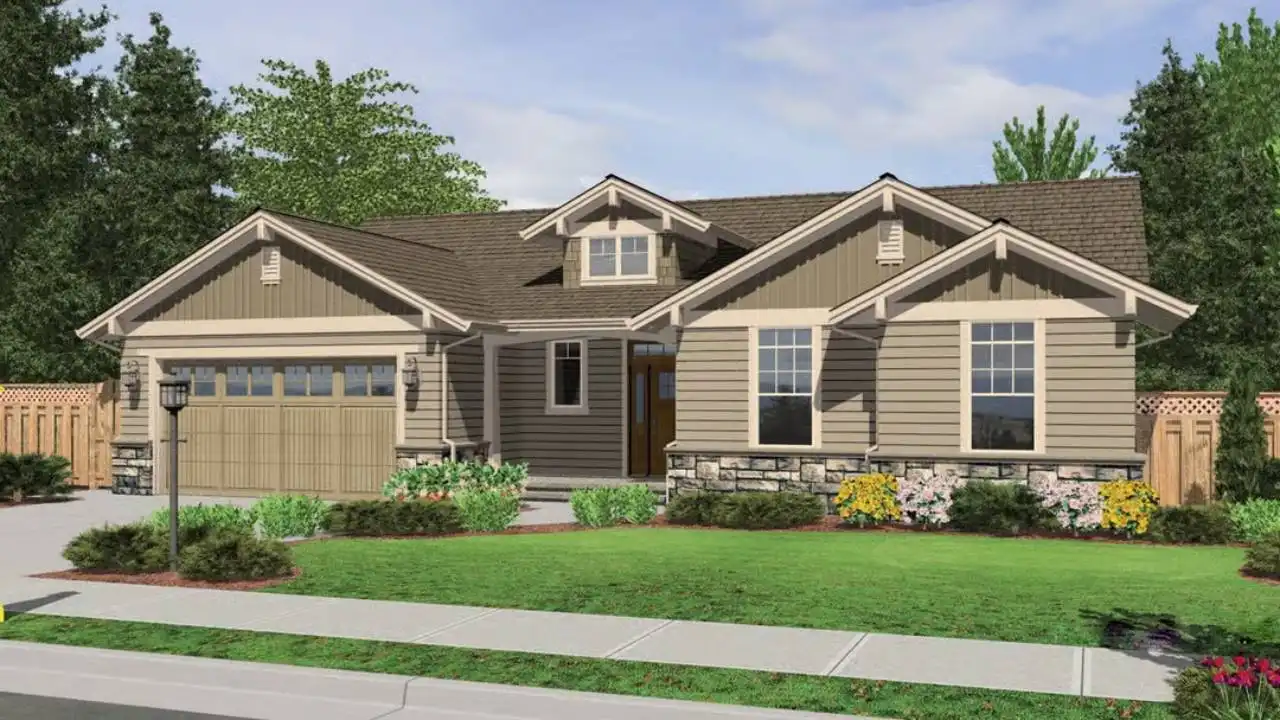

Main Plan Photo
© copyright by designer

Plan: HHF-5230

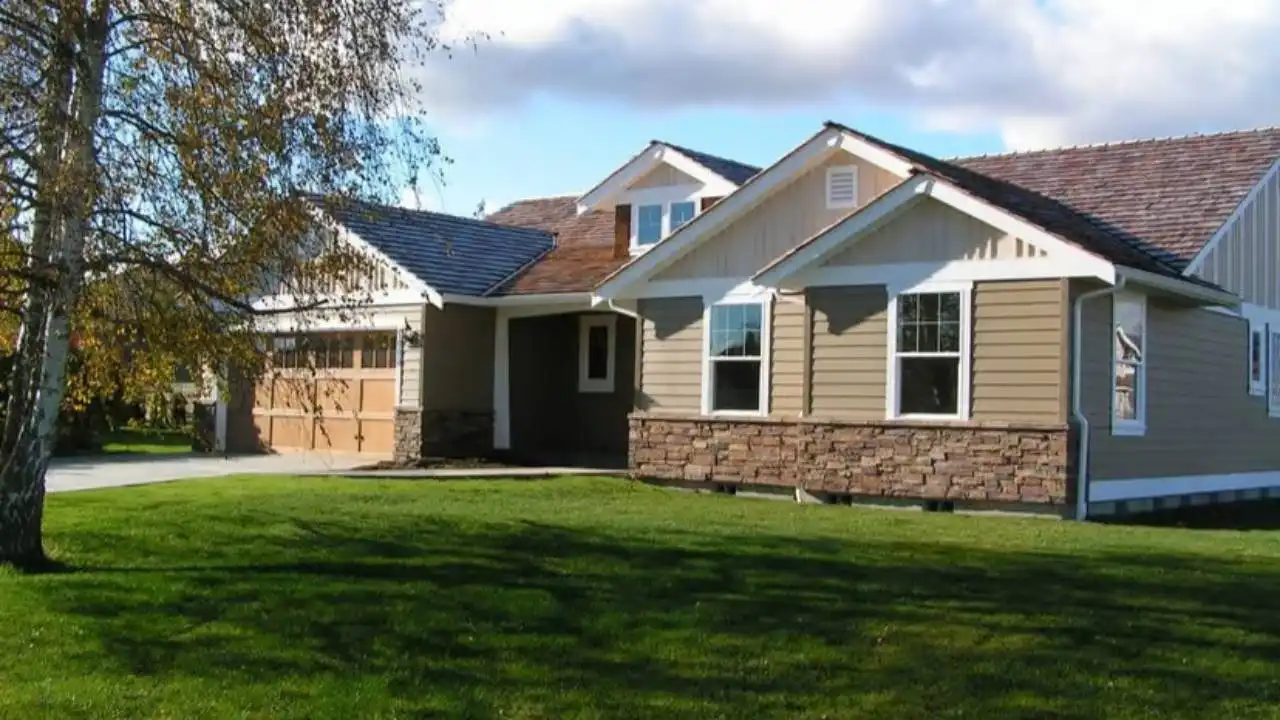

A classic concept with an updated look, this Craftsman original includes stonework at the foundation, horizontal siding and a sidelighted front door in the recessed entry porch. All ceilings are nine feet tall with the exception of the great room, and master bedroom, which delights with vaulted ceilings. The design features many upgraded elements such as art display niches in the main hall and the master alcove, a linen closet in the hall to Bedroom 2, a built-in media center in the great room and a huge pantry near the laundry room just off the kitchen.


ShareThis
SITE-WIDE SALE! 10% off all modifications or 10% off any plan package over $500 see details
Additional Images

Plan Pricing Packages
HOUSE PLAN SETS

 Basic Package    $750.00
 Construction Package    $850.00
 Modification Package: PDF    $980.00
 Modification Package: CAD    $1,670.00
FOUNDATION OPTIONS

 Crawlspace  $0.00
 Slab  $95.00
 Basement  $225.00
ADDITIONAL PLAN OPTIONS

 ENERGY STAR® Plan Package  $275.00
 Additional Sets  $40.00
 Full Reverse Sets  $100.00
PROMOTIONAL ITEMS

 Custom Adult T-shirt  $25.00
Size:
Color:
Best Price Guarantee, learn more
For more details about our plan packages click here



Email Us   Call Us   Live Chat

Key Features
  • Attached
  • Basement
  • Country Kitchen
  • Covered Front Porch
  • Covered Rear Porch
  • Crawlspace
  • Den/bedroom on main
  • Double Vanity Sink
  • Fireplace
  • Foyer
  • Front Porch
  • Great Room
  • Home Office
  • Laundry 1st Fl
  • Master Bdrm Main Floor
  • Open Floor Plan
  • Oversized
  • Peninsula / Eating Bar
  • Rear Porch
  • rear view
  • Separate Tub and Shower
  • Slab
  • Storage Space
  • Tandem
  • Tandem garage
  • Vaulted Ceilings
  • Walk-in Closet
  • Walk-in Pantry
Need to make changes?
Call for a free modification quote
877-895-5299
or use this quote form

© copyright by designer
First Floor Plan:





© copyright by designer
Basement Stair Location:

Top

Plan Details

General House Information
Number of Stories:1
Width:55' 0"
Depth:48' 0"
Dwelling Number:Single
Bonus Access:None

Exterior Style
  • Craftsman
  • Bungalow
  • Ranch
  • PDFs Fast!

Facade
  • Siding

Number of Rooms
Bedrooms:3
Full Baths:2

Finished Square Footage
Main Level:1728 Sq. Ft.
Total: 1728 Sq. Ft.

Unfinished Square Footage
Garage:604 Sq. Ft.
Porch:147 Sq. Ft.

Garage
Garage Type:Attached
Garage Size:3


Foundation
  • Basement
  • Crawlspace
  • Slab

House And Ceiling Heights
First Floor Ceiling:9
Maximum House Height:18' 1"

Framing Information
Roof Framing:Truss
Exterior Wall Framing:2x6

Roof Pitch
Primary:6/12

Roof Load
Live:25#
Dead:15#
Wind:0

INSULATION
  • Per IRC Climate Zones

Number of Rooms
Bedrooms:3
Full Baths:2
