Plan Specification: HHF-5284

Total Square Footage: 3,230

Main Level: 2,853

Second Level: 377

Bedrooms: 3

Baths: 3        Half: 1

Garages: 3

Width: 102 ft Depth: 72 ft

Foundation: Basement, Crawl Space, Slab


Pricing Options Click here...

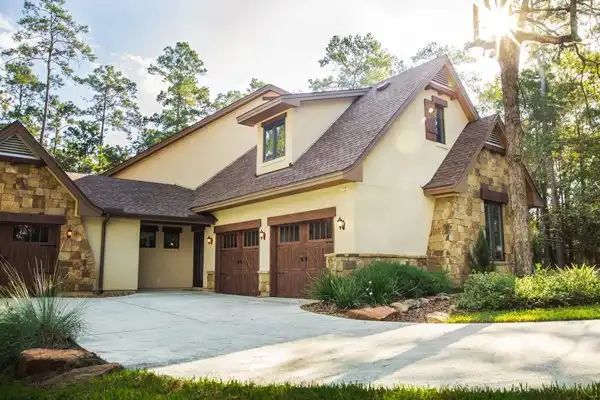

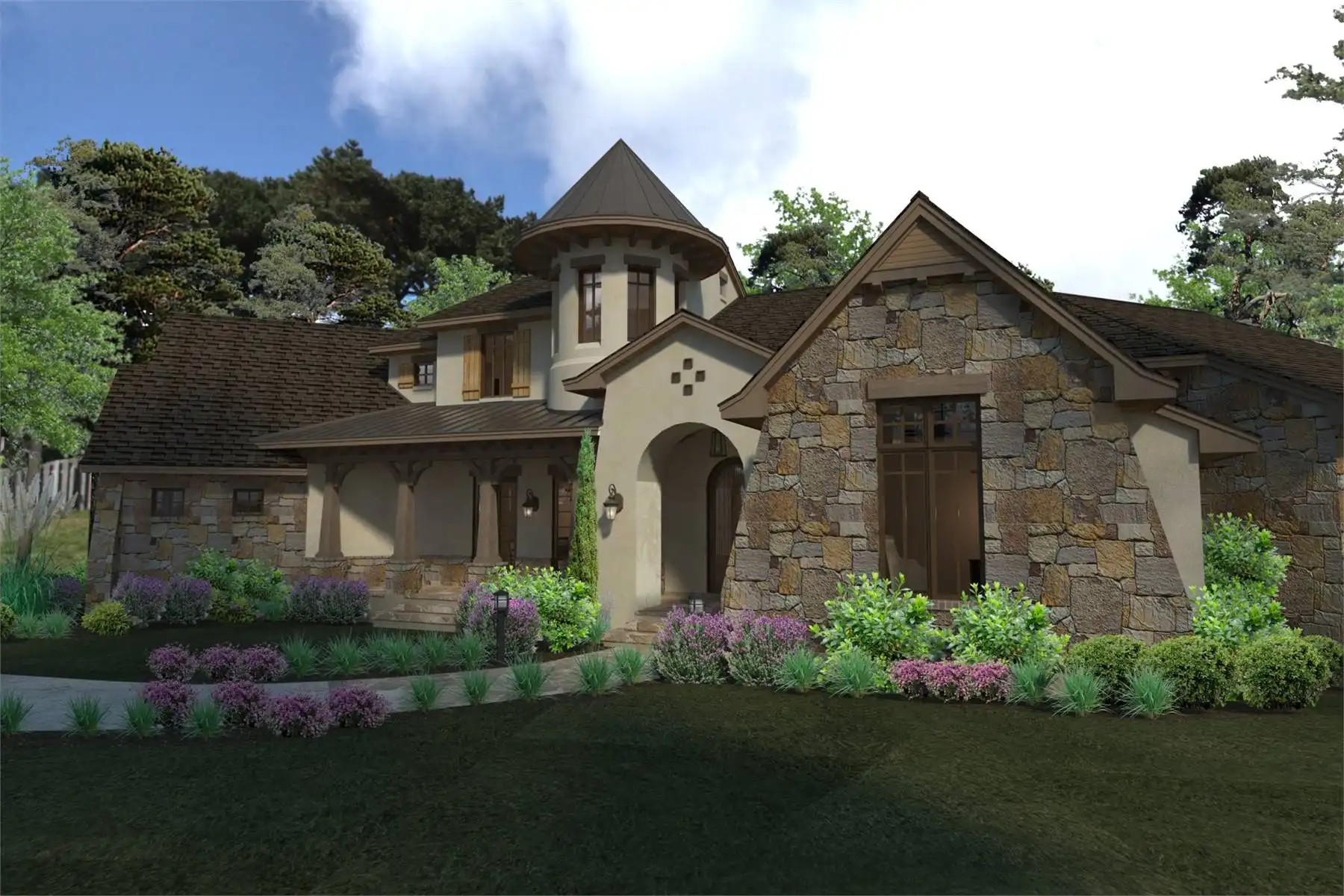

Main Plan Photo
© copyright by designer

Plan: HHF-5284

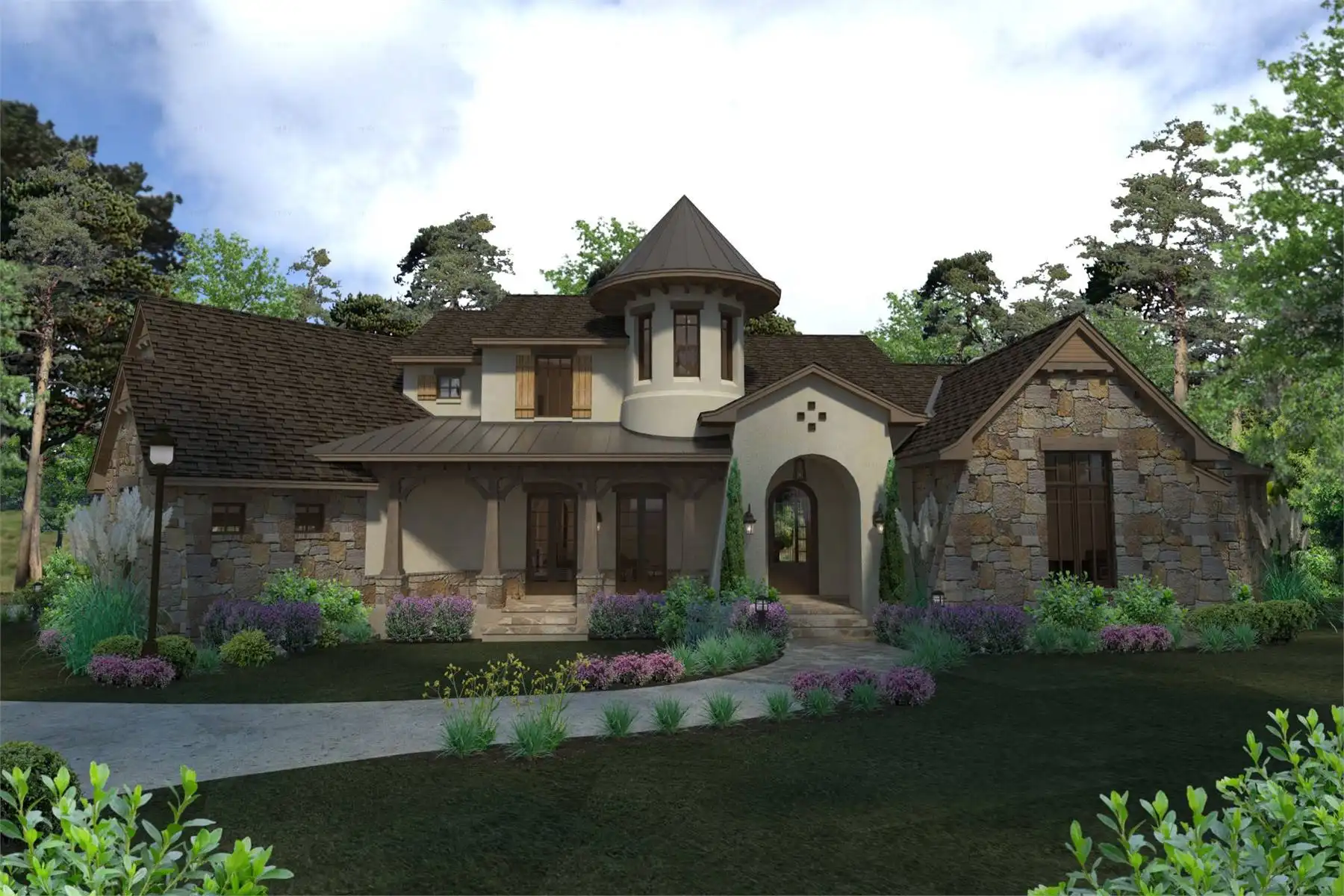

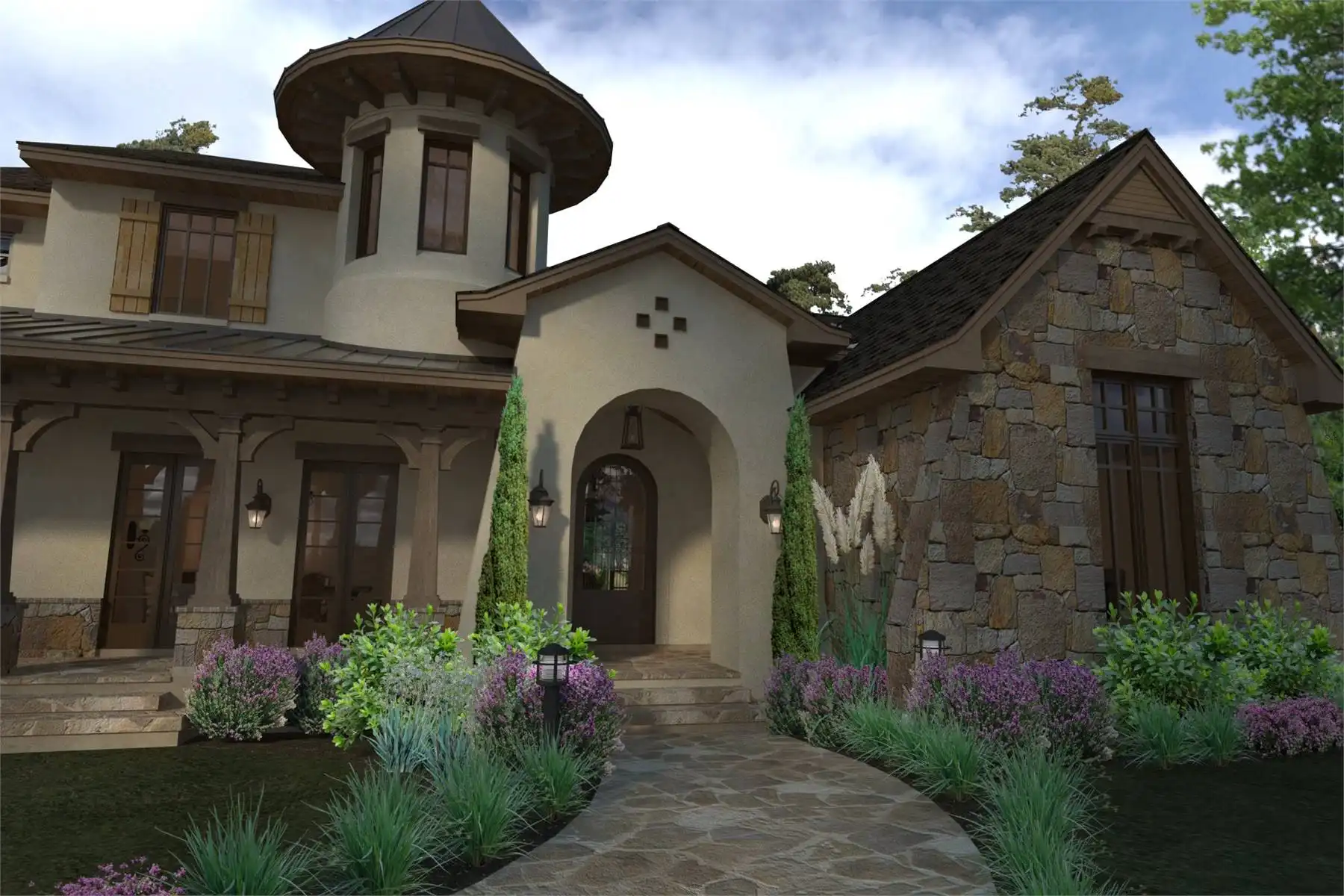

Traditional European elements create a storybook facade that opens into modern day planning.

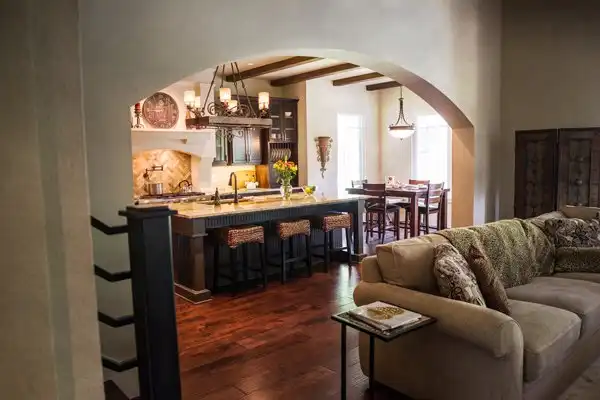

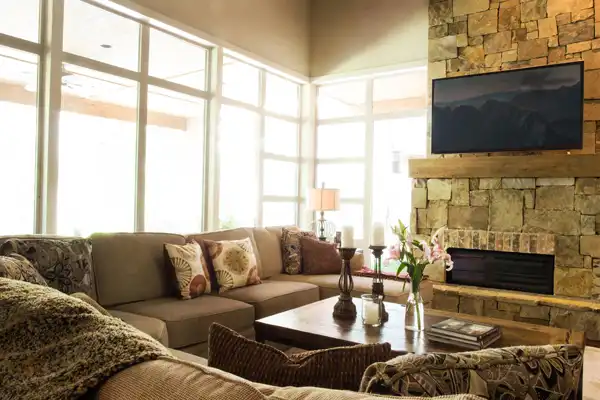

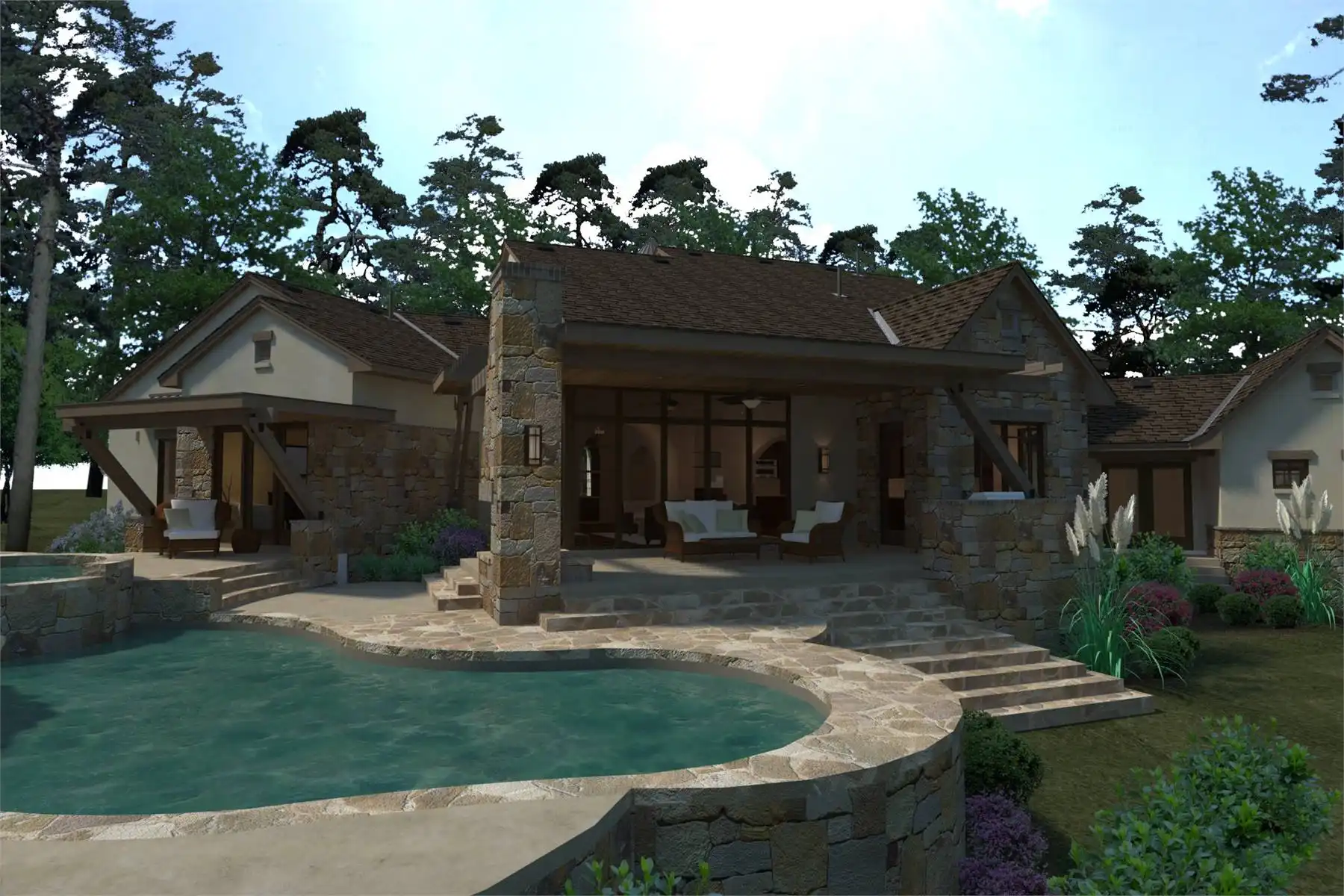

Large open family areas give way to views of the rear of the home and is perfect for view lots.

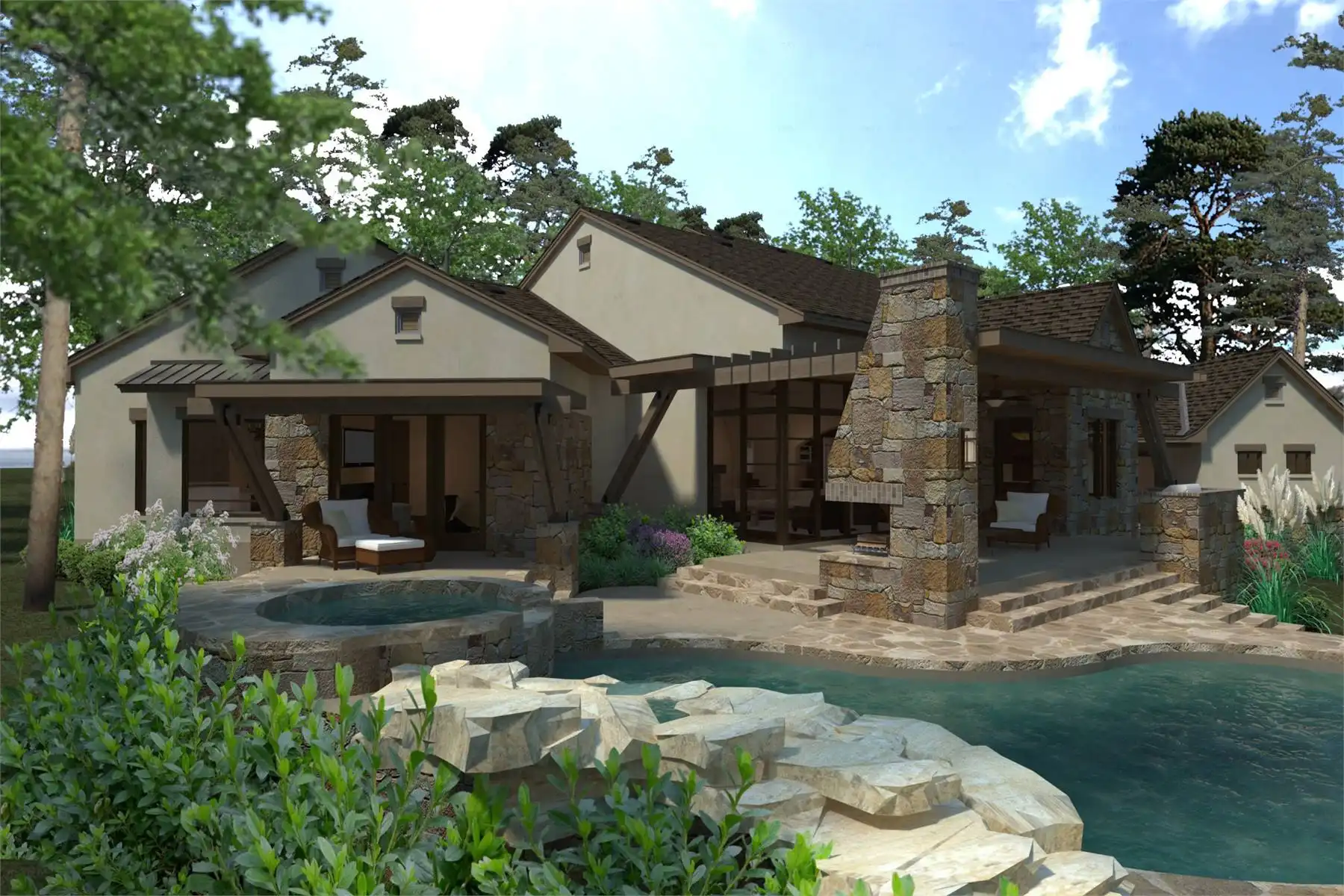

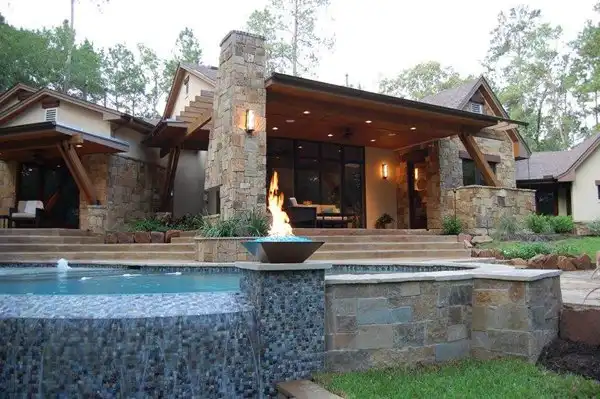

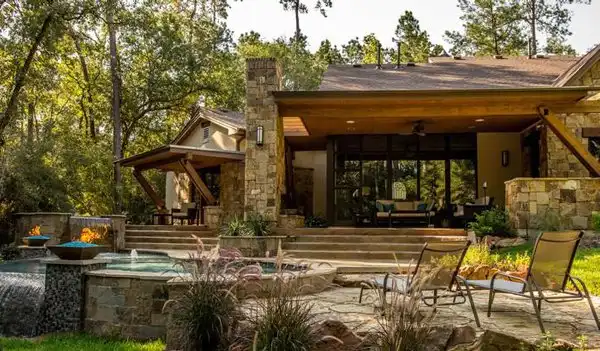

The lanai transitions to a more contemporary feel with flat cantilevered roofs with trellised openings.

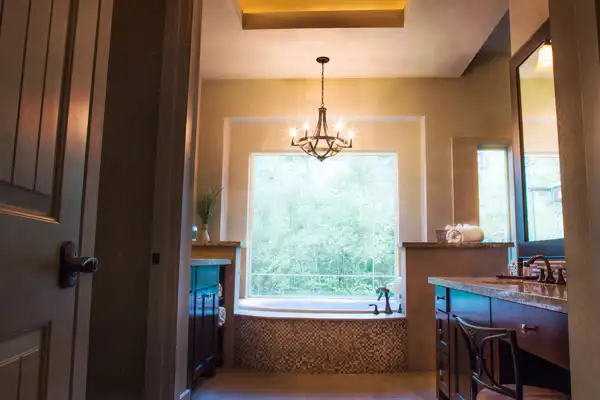

The mast features a cozy garden tub set in a plant shelf where candles can surround the tub. The shower is over-sized and the entire master bath is lined with cove lighting and captures additional views to the outside through a large picture window.

ShareThis
SITE-WIDE SALE! 10% off all modifications or 10% off any plan package over $500 see details

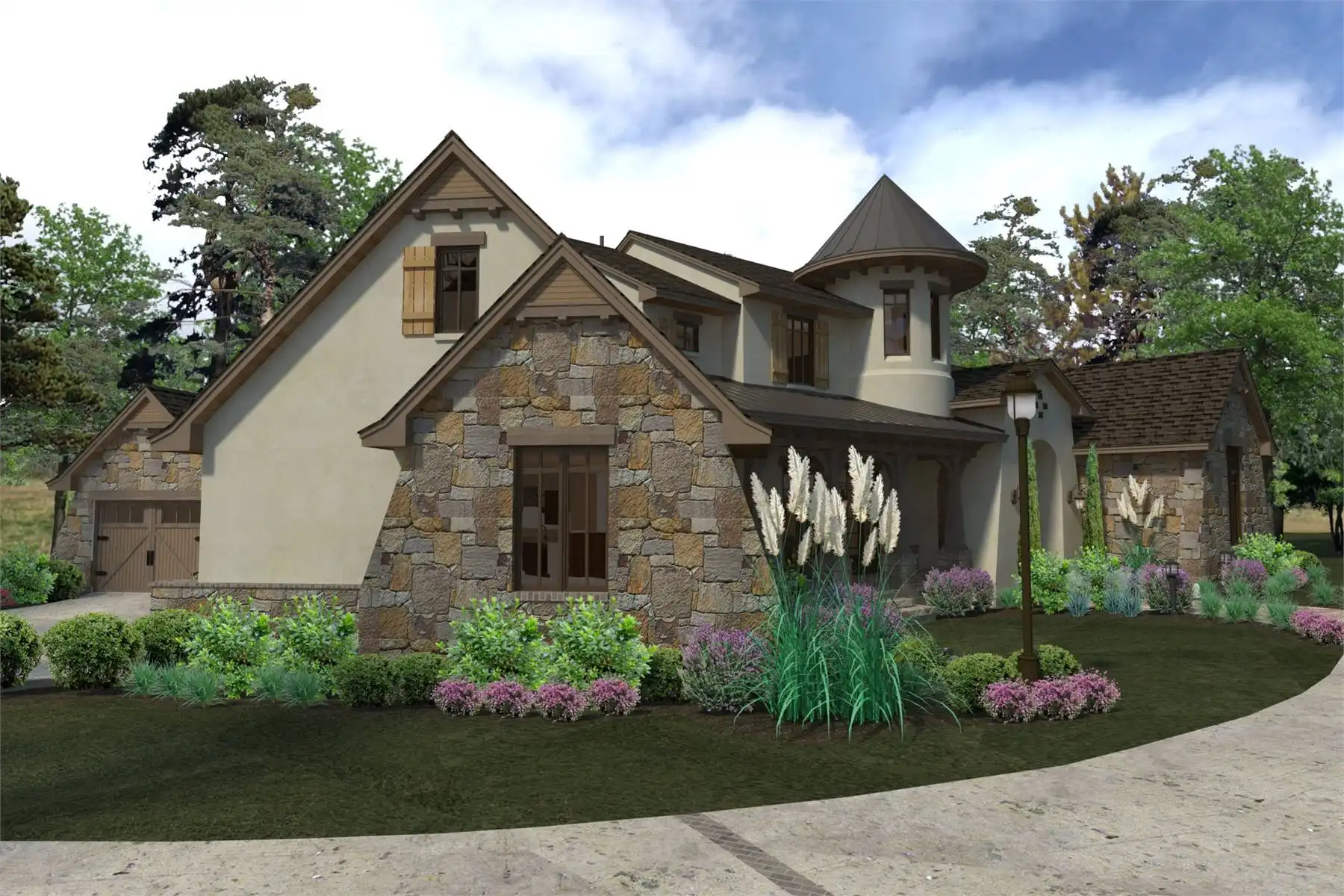

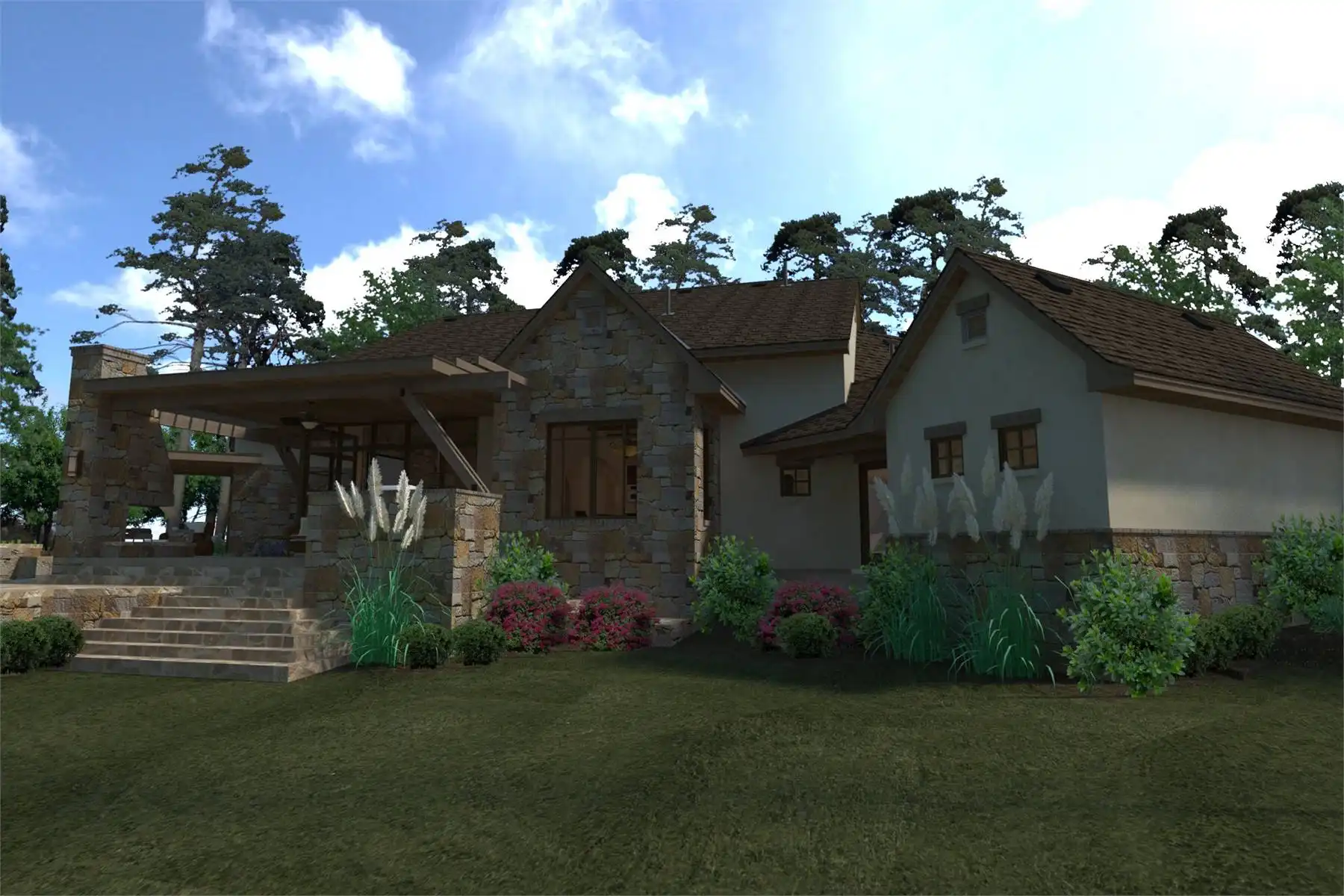

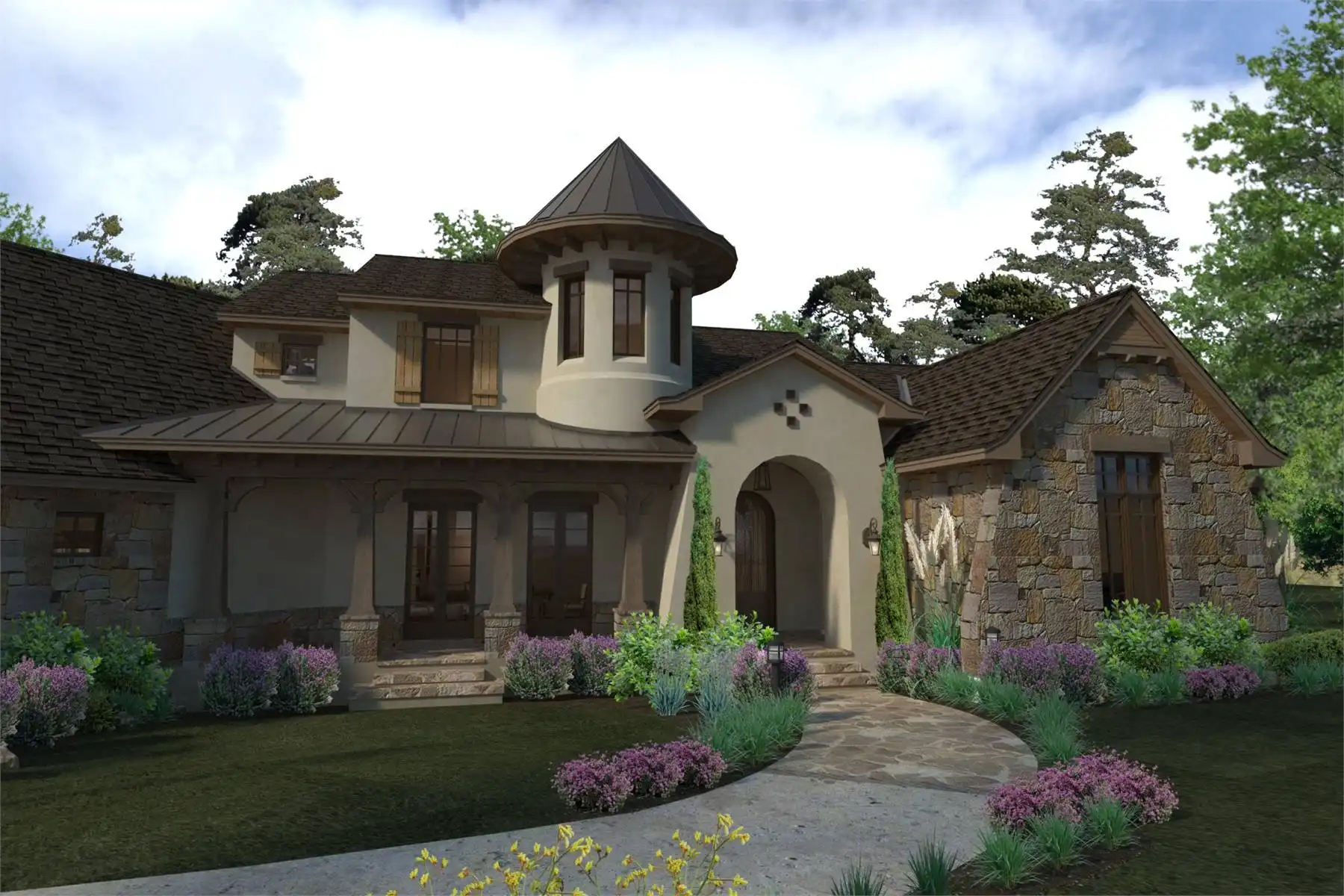

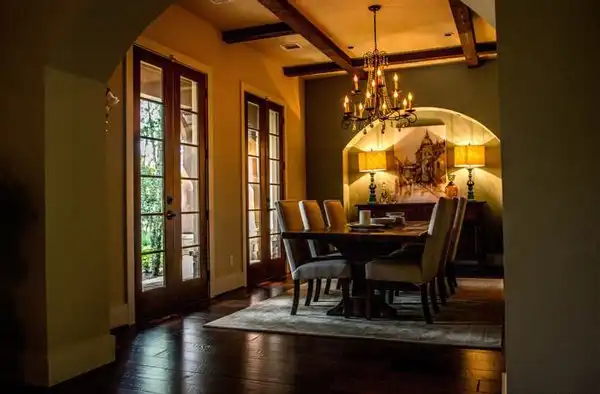

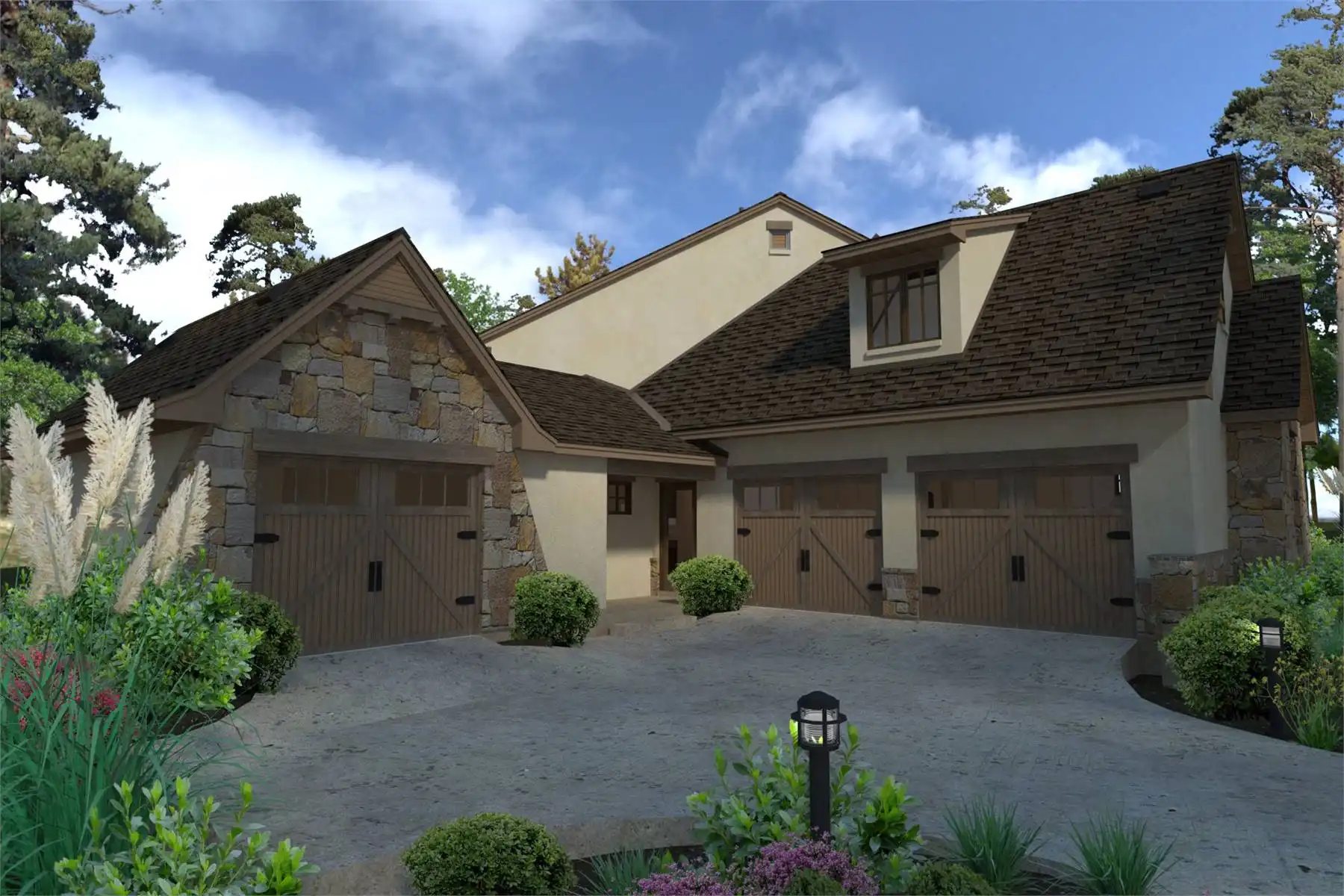

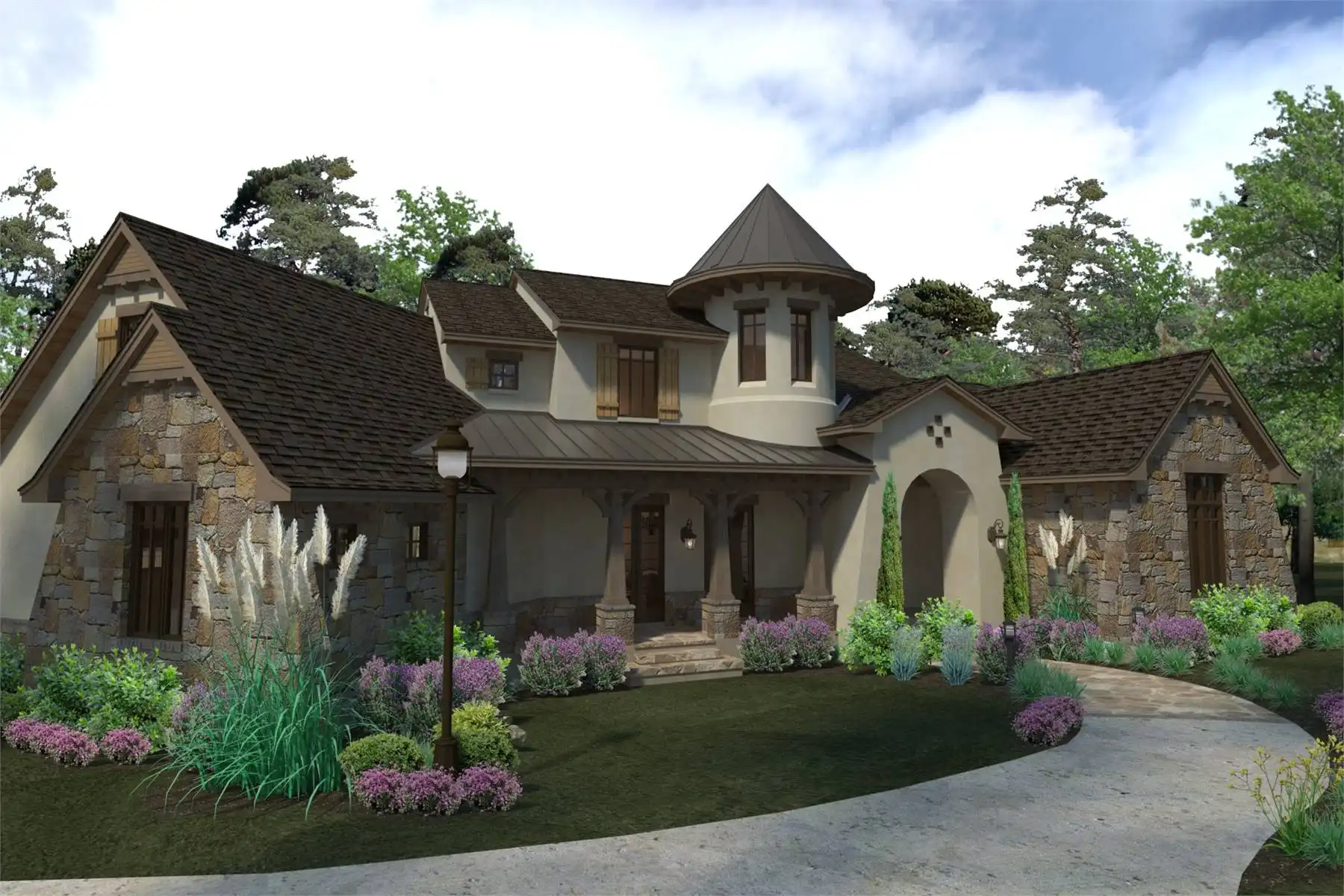

Additional Images

Plan Pricing Packages
HOUSE PLAN SETS

 PDF Bid Set    $1,195.00
 Five Sets    $1,795.00
 Eight Sets    $1,995.00
 PDF    $2,195.00
 AutoCad Files (DWG)    $3,495.00
FOUNDATION OPTIONS

 Slab  $0.00
 Crawl Space  $300.00
 Basement  $400.00
ADDITIONAL PLAN OPTIONS

 Additional Sets  $100.00
 Full Reverse  $300.00
PROMOTIONAL ITEMS

 Custom Adult T-shirt  $25.00
Size:
Color:
Best Price Guarantee, learn more
For more details about our plan packages click here



Email Us   Call Us   Live Chat

Key Features
  • Arches
  • Bonus Room
  • Butler's Pantry
  • Covered Front Porch
  • Covered Rear Porch
  • Dining Room
  • Double Vanity Sink
  • Family Room
  • Fireplace
  • Foyer
  • Front Porch
  • Guest Suite
  • His and Hers Master Closets
  • Home Office
  • In-law Suite
  • Kitchen Island
  • Laundry 1st Fl
  • Library/Media Rm
  • Master Bdrm Main Floor
  • Mud Room
  • Nook / Breakfast Area
  • Open Floor Plan
  • Peninsula / Eating Bar
  • Rear Porch
  • Rec Room
  • Separate Tub and Shower
  • Split Bedrooms
  • Storage Space
  • Unfinished Space
  • Vaulted Ceilings
  • Walk-in Closet
  • Walk-in Pantry
Need to make changes?
Call for a free modification quote
877-895-5299
or use this quote form

© copyright by designer
First Floor Plan:





© copyright by designer
Second Floor Plan:

Top

Plan Details

General House Information
Number of Stories:2
Width:102' 0"
Depth:72' 9"
Dwelling Number:Single
Bonus Access:2nd Floor

Exterior Style
  • Cottage
  • Craftsman
  • European
  • Tuscan
  • French Country
  • Mountain
  • Spanish

Number of Rooms
Bedrooms:3
Full Baths:3
Half Baths:1

Finished Square Footage
Main Level:2853 Sq. Ft.
Upper Level: 377 Sq. Ft.
Total: 3230 Sq. Ft.

Unfinished Square Footage
Garage:920 Sq. Ft.
Porch:834 Sq. Ft.
Bonus Room:641 Sq. Ft.

Garage
  • Garage Type:
Garage Size:3


Foundation
  • Basement
  • Crawl Space
  • Slab

House And Ceiling Heights
First Floor Ceiling:10
Second Floor Ceiling:9
Maximum House Height:31' 0"

Framing Information
Roof Framing:Stick
Exterior Wall Framing:2x6

Roof Pitch
Primary:6:12
Secondary:12:12
Teritary:4:12

Roof Load
Live:20
Dead:15
Wind:20

INSULATION
Exterior Wall:15
Interior Wall:13
Ceiling:30
Floor:0

Number of Rooms
Bedrooms:3
Full Baths:3
Half Baths:1
