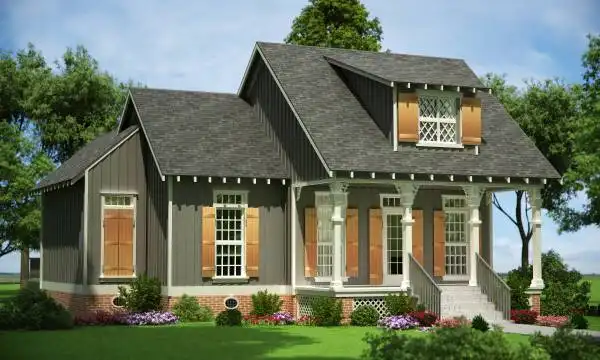

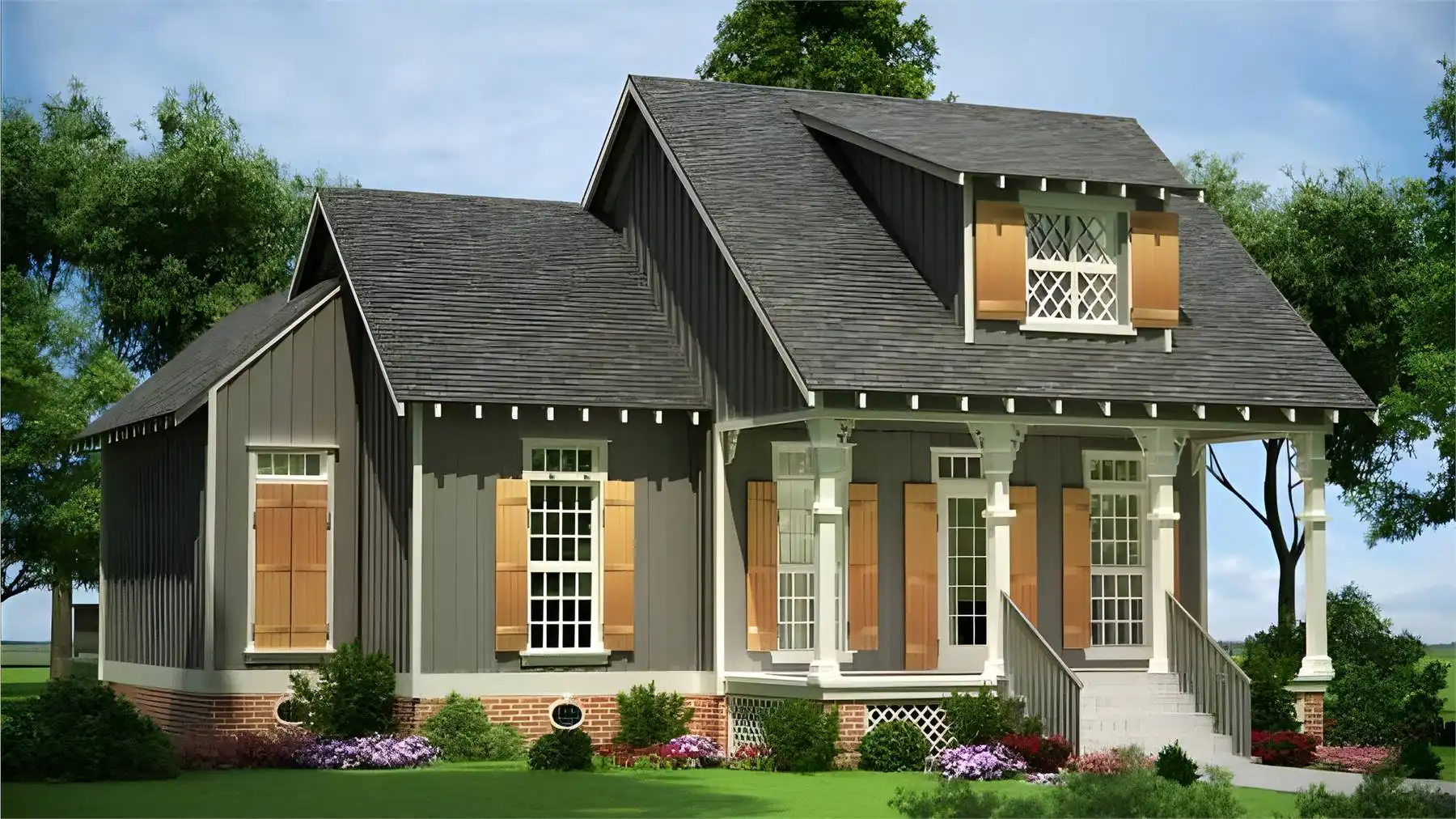

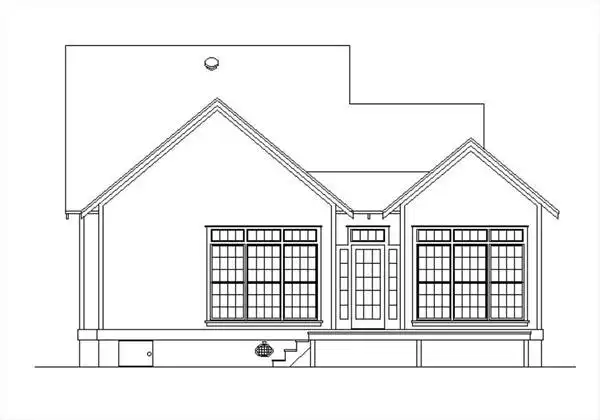

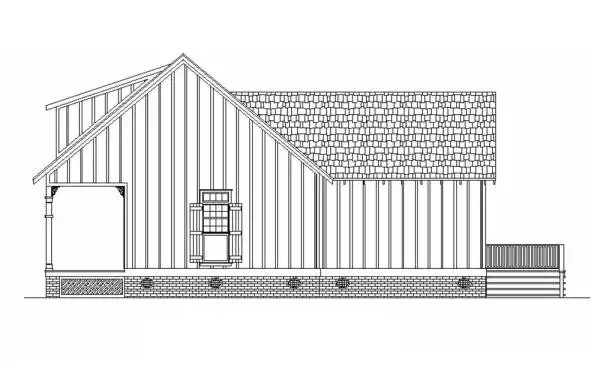

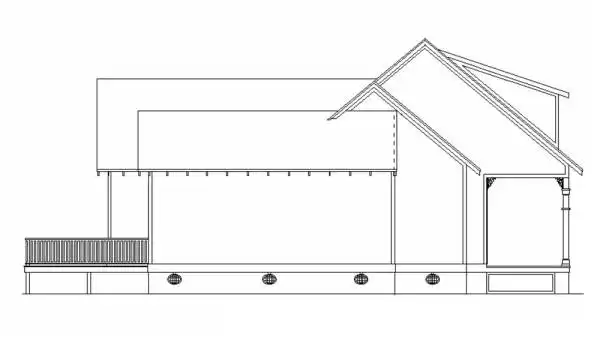

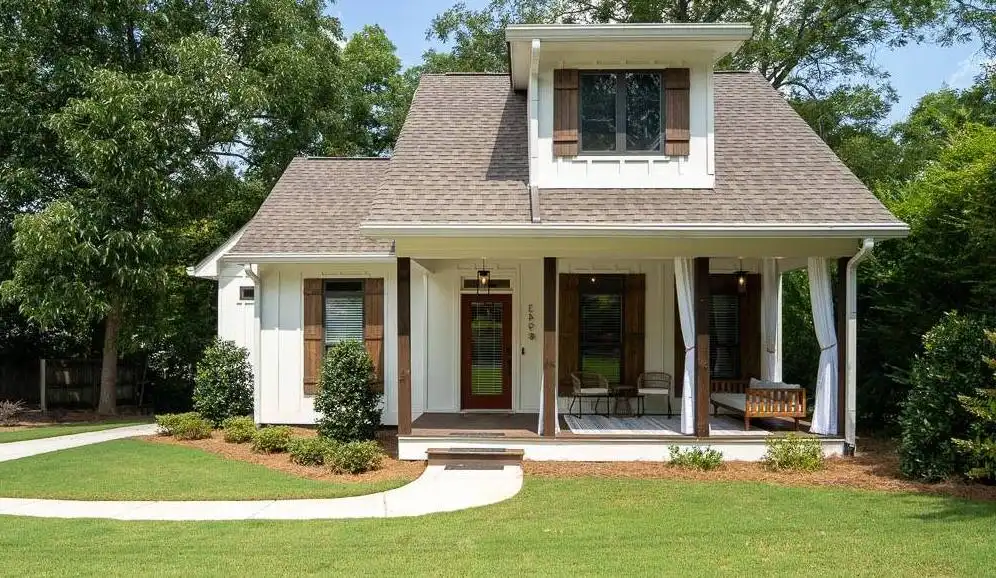

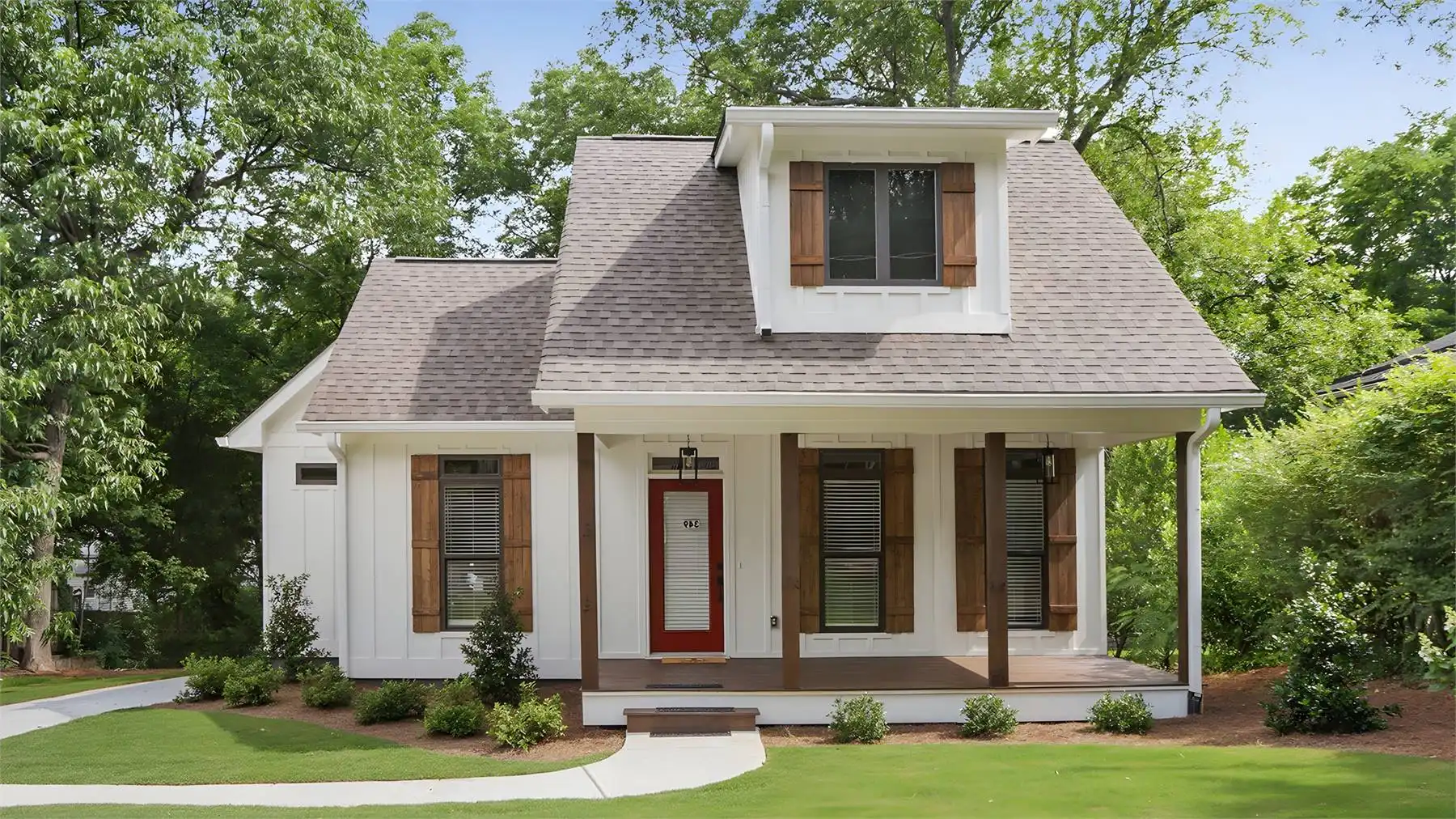

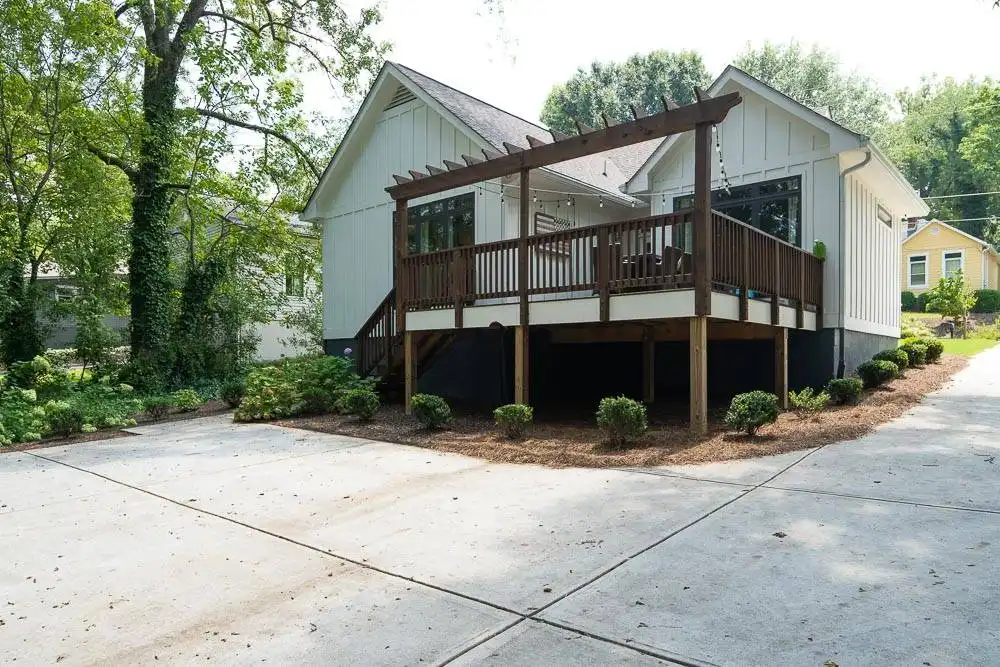

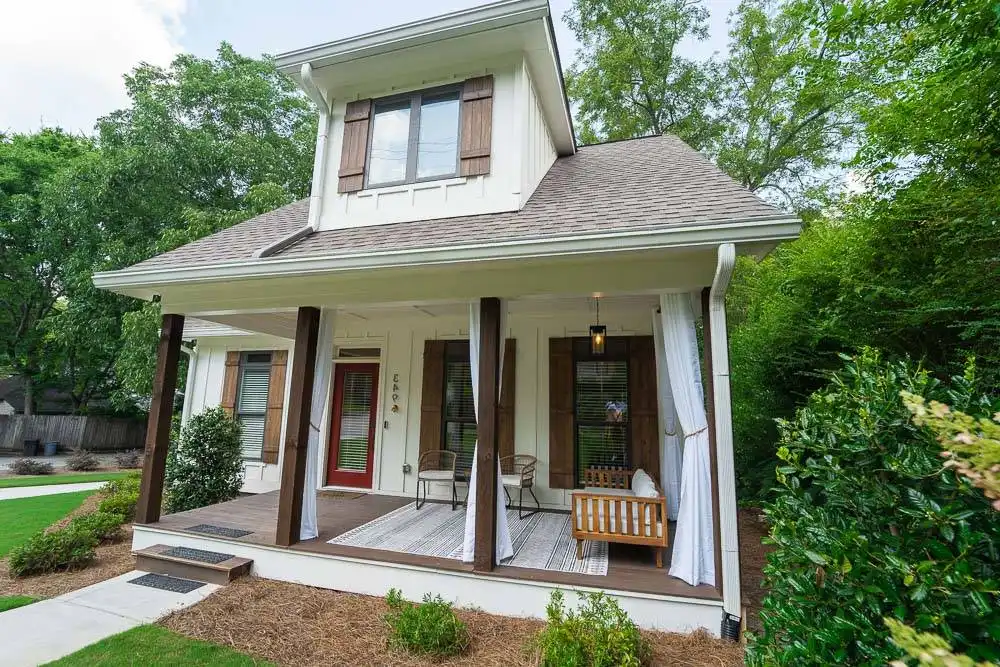

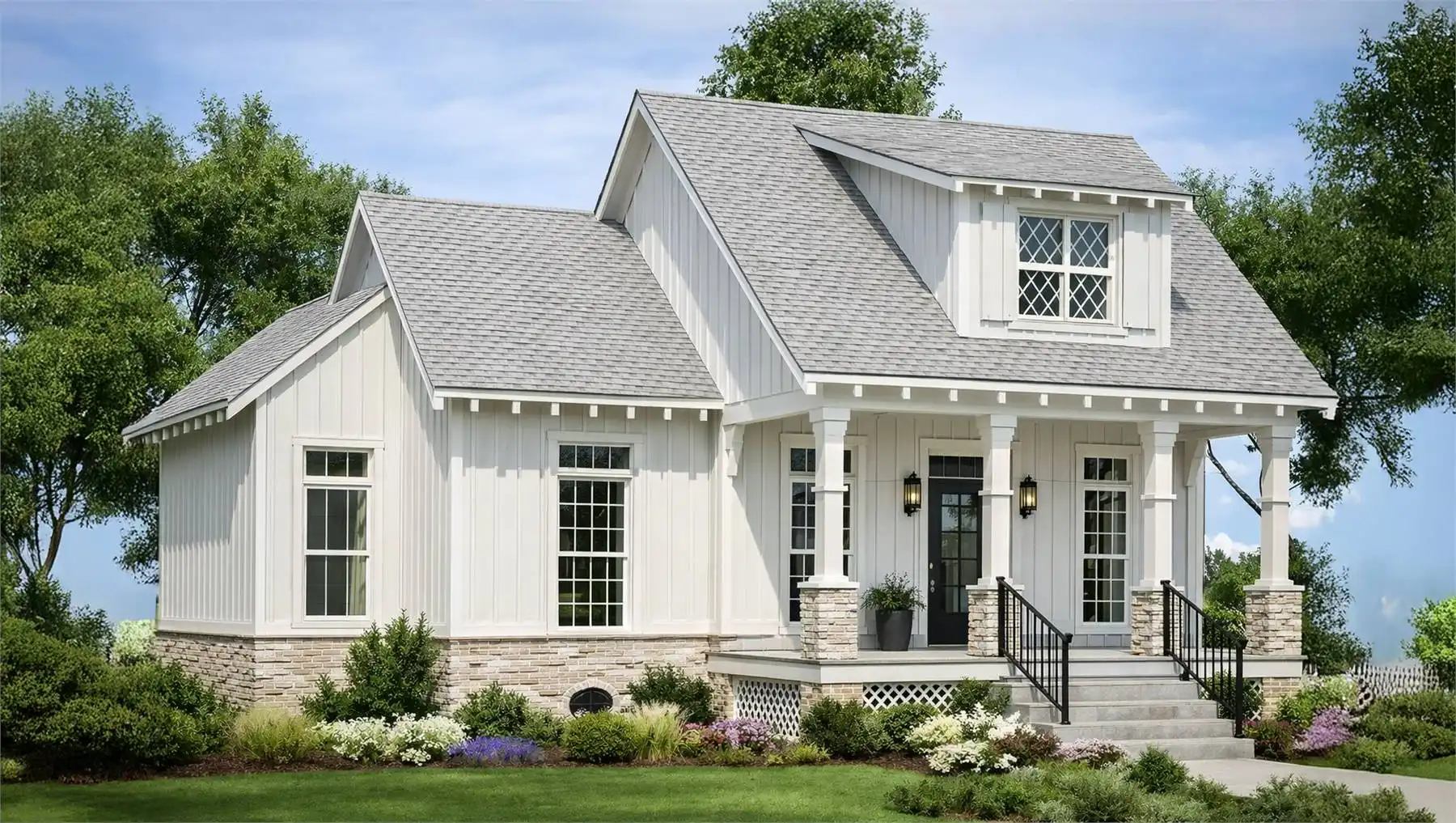

Front Rendering Right Side Elevation Left side elevation Rear Elevation Floor Plan
© copyright by designer

Plan: 5289

Plan Specification
Total Square Footage: 1,086
Main Level: 1,086
Bedrooms: 3
Baths: 2 Half: 1
Garages: 0
Width/Depth: 36 ft / 46 ft
Foundation: Crawl Space Foundation, Optional Concrete Slab Foundation
Pin It
© copyright by designer
Floor Plan:
Floor Plan



Similar plans: 5360, 5228
More plans by this designer/architect
ShareThis
Add to Favorites
Purchase Plans
PLAN DESCRIPTION This delightful 3-bedroom cottage is designed to drastically cut heating and cooling cost but without adding substantial building cost. Among the many energy saving features:
1. Insulated doors and windows
2. 2x6 exterior walls with R19 insulation
3. Modified Roof Design to accommodate 12 R38 ceiling insulation
4. Positive vapor barrier to enhance comfort control
5. Centrally located plumbing and heating/AC for added efficiency
6. Small footprint to minimize land and building cost
7. Properly oriented, this home is designed to provide natural solar gain
8. New and improved framing techniques that allow previously un-insulated areas to become insulated.


Get Your House Plans In Minutes!
NEW PDFs Now!™ Plan packages available. Simply place your order, electronically sign the license agreement, and receive your PDFs within minutes in your inbox!
SAVE $100 off ALL House Plans through July 31, 2016! see details
House Plan Pricing
PDFs Now!™ $600.00
PDFs Now!™ $750.00
$780.00
$795.00
$840.00
$920.00
$1,508.00
More details about our plan packages
Foundation Options
PDFs Now!™ available $0.00
PDFs Now!™ available $100.00
Additional Plan Options
$175.00
$15.00
$60.00
$125.00
Best Price Guarantee, learn more

Live Chat  |  Email
Key Features

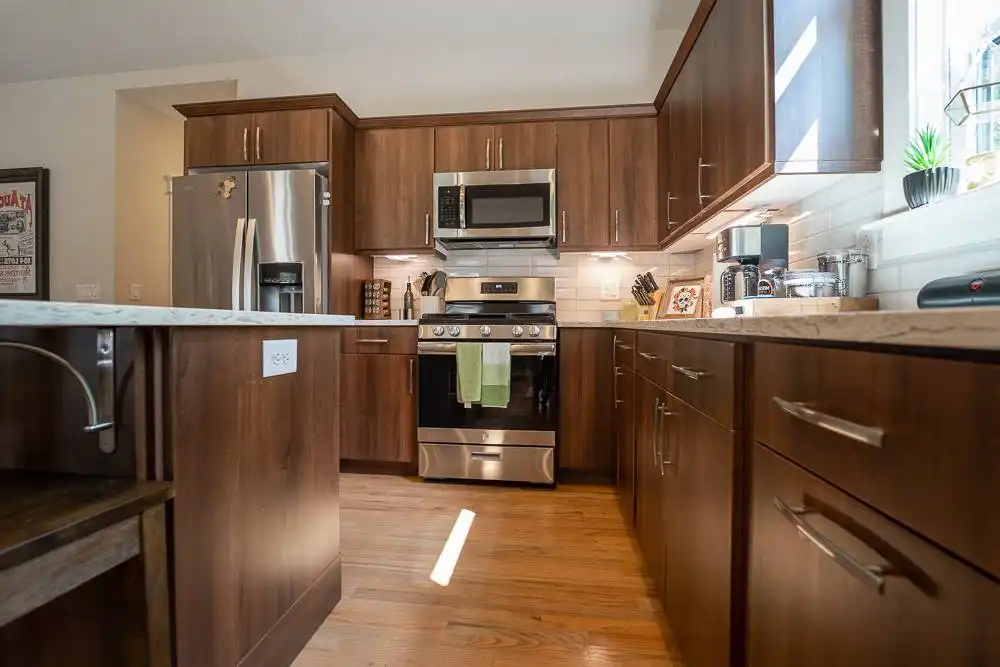

• Country Kitchen

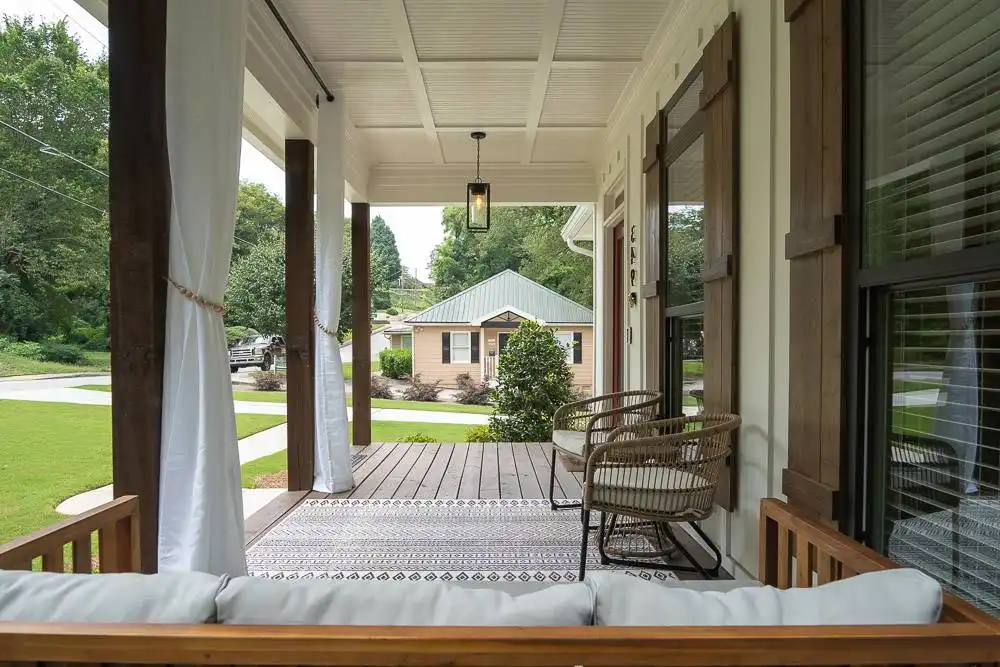

• Covered Front Porch
• Crawlspace

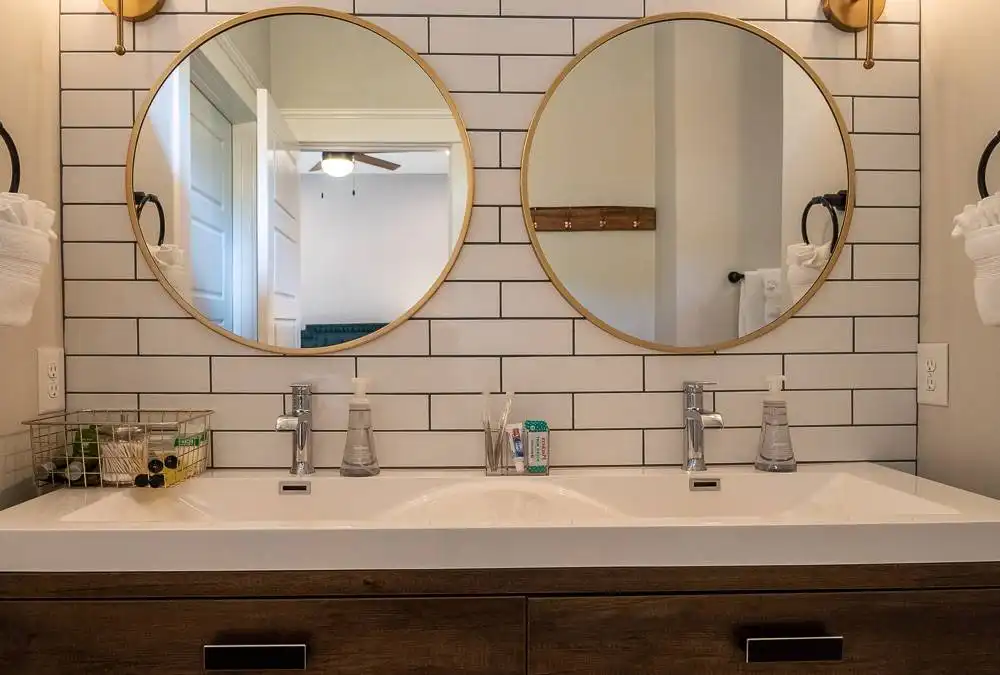

• Double Vanity Sink
• Kitchen Island

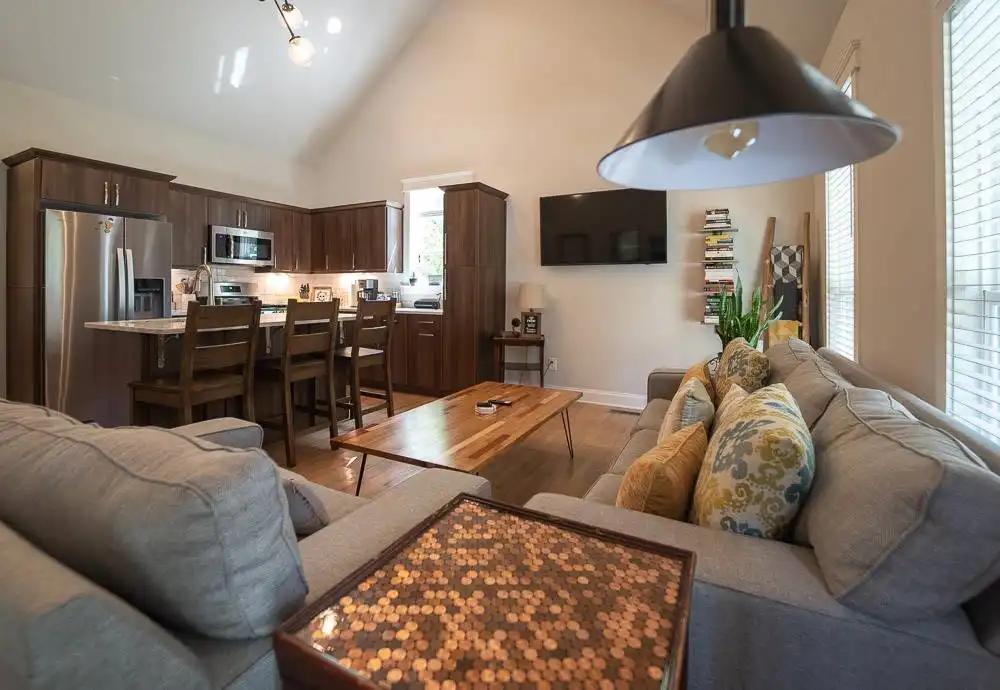

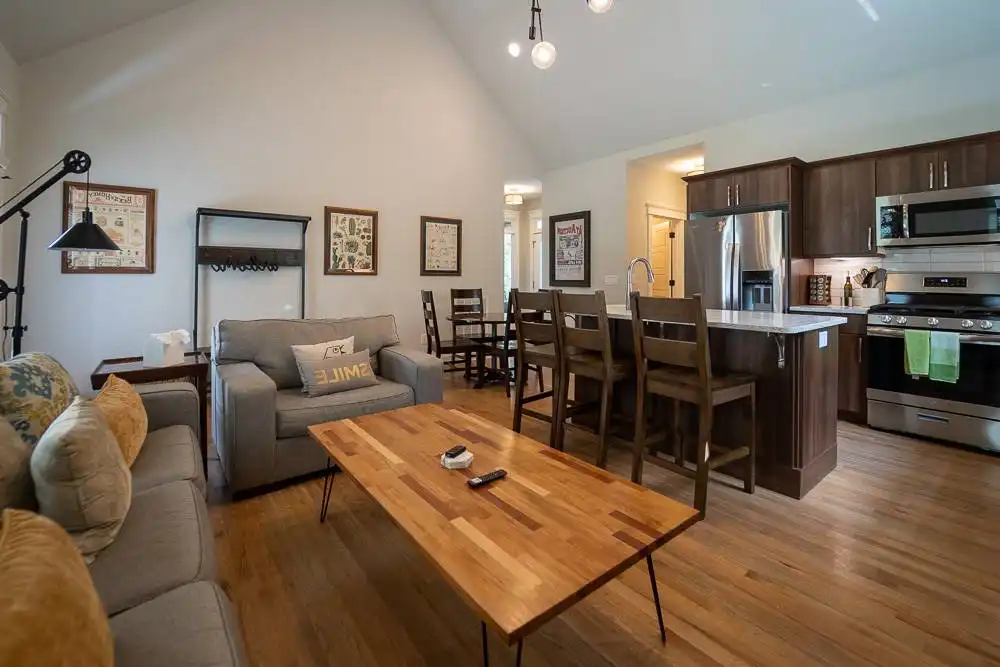

• Open Floor Plan
• Rear Porch
• Split Bedrooms
• Suited for corner lot
• Suited for narrow lot
• Suited for view lot
• Walk-in Closet
Plan Details
General House Information
1
Number of Stories:
36' 0"
Width:
46' 0"
Depth:
Single
Dwelling Number:
Exterior Style
Cottage
Farm House
Facade
Siding
Number of Rooms
3
Bedrooms:
2
Full Baths:
1
Half Baths:
Finished Square Footage
1,086 Sq. Ft.
Main Level:
1,086 Sq. Ft.
Total:
Unfinished Square Footage
160 Sq. Ft.
Porch:
GARAGE
0
Garage Size:
Foundation
Crawl Space Foundation
Optional Concrete Slab Foundation
House And Ceiling Heights
9 & 11
First Floor Ceiling:
22' 2"
Maximum House Height:
Framing Information
Stick
Roof Framing:
2x6
Exterior Wall Framing:
Roof Pitch
10
Primary:
4
Dormer:
Insulation (R)
19
Exterior Wall:
0
Interior Wall:
38
Ceiling:
19
Floor:
Number of Rooms
3
Bedrooms:
2
Full Baths:
1
Half Baths:
