Plan Specification: HHF-5336

Total Square Footage: 5,108

Main Level: 5,108

Bedrooms: 3

Baths: 3        Half: 1

Garages: 2

Width: 115 ft Depth: 103 ft

Foundation: Crawl Space, Slab

Pricing Options Click here...

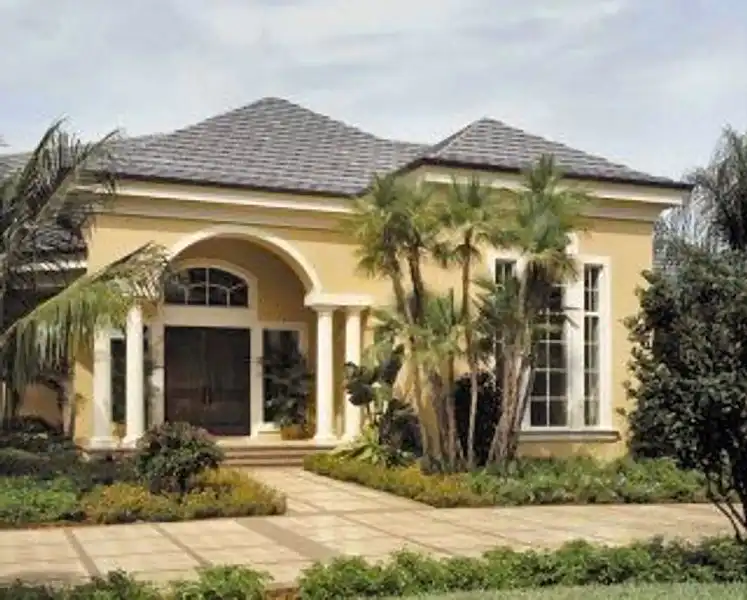

Main Plan Photo
© copyright by designer

Plan: HHF-5336

Interesting ceiling detail throughout adds to the architectural value of this design; whether it's trey, vaulted, barrel vault, or coffered, all these styles enhance the height and size of these rooms. The foyer opens to a large living room with its large bank of windows and door that leads to the terrace. Large decorative pillars surround the lanai and terrace. Off the living room through French doors is the quiet study with built-ins. A formal, elegant dining room lads into the kitchen and pantry for ease in serving. The large kitchen breakfast bar is shared with the family room and breakfast area. The breakfast area has a built-in hutch to store your favorite dishes and crystal, while the family room offers built-in bookcases, a warming fireplace, and French doors to the lanai. Two private bedrooms with private baths and walk-in closets share this rear wing with a utility room and one-car garage. Outside the elegant master suite is a bar, so grab a glass of wine come on in. The bayed sitting area in the master suite offers an open view to the great outdoors. A quiet retreat offers an entrance to the outdoor (concept) pool area, a private bar, a lavish bath that boats his and hers vanities, separate shower and garden tub, and large wardrobe complete this luxury mansion house plan. This Mediterranean luxury mansion house plan has a wonderful flow for family living. Make it yours !

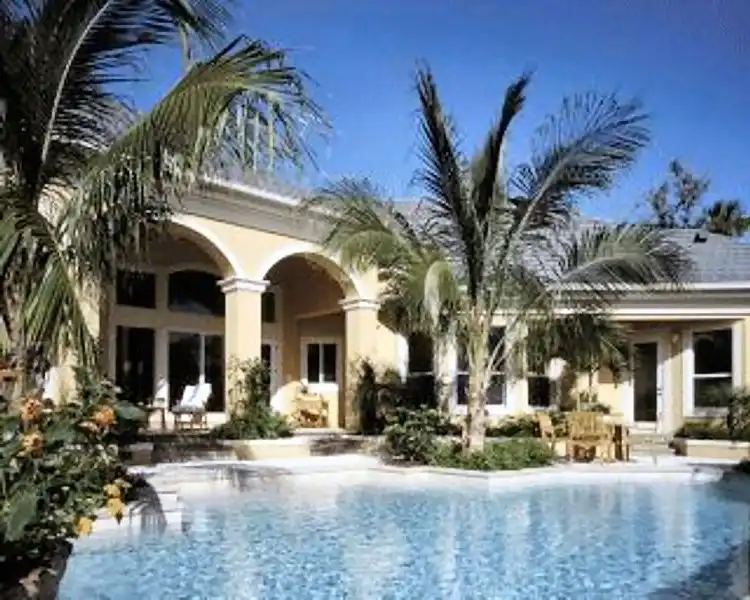

Additional Images

Plan Pricing Packages

 One Study Set    $1,515.00
 Plan PDF Package    $2,420.00
 Five Sets    $2,620.00
 CAD File    $3,630.00

 Slab  $0.00
 Crawl Space  $250.00

 Additional Sets  $150.00
 Artist Rendering  $200.00

 Custom Adult T-shirt  $25.00
Best Price Guarantee, learn more
For more details about our plan packages click here

Email Us   Call Us   Live Chat
Key Features
  • Attached
  • Bonus Room
  • Family Room
  • Fireplace
  • Formal LR
  • Foyer
  • Front Porch
  • Kitchen Island
  • Laundry 1st Fl
  • Master Bdrm Main Floor
  • Nook / Breakfast Area
  • Sitting Area
  • Slab
  • Split Bedrooms
Need to make changes?
Call for a free modification quote
or use this quote form
Architect's Preferred Products:
ULTREX® Fiberglass Windows & Doors
Decorative Millwork and Columns
Classic-Craft® American Collection™ Fiberglass Entry Door
Prefinished Hardwood Flooring
Decorative Window Treatments

© copyright by designer
First Floor:

Plan Details
General House Information
Number of Stories:1
Width:115' 0"
Depth:103' 0"
Dwelling Number:Single
Exterior Style
  • Mediterranean
  • European
  • Florida
Number of Rooms
Full Baths:3
Half Baths:1
Finished Square Footage
Main Level:5108 Sq. Ft.
Total: 5108 Sq. Ft.
Unfinished Square Footage
Garage:698 Sq. Ft.
  • Garage Type:
Garage Size:2
  • Crawl Space
  • Slab
House And Ceiling Heights
First Floor Ceiling:11
Maximum House Height:28' 0"
Framing Information
Roof Framing:Combination
Exterior Wall Framing:8" Block/Wood
Roof Pitch
Exterior Wall:0
Interior Wall:0
Number of Rooms
Full Baths:3
Half Baths:1
