Plan Specification: HHF-5342

Total Square Footage: 5,358

Main Level: 3,886

Second Level: 1,472

Bonus: 480

Bedrooms: 3

Baths: 4        Half: 1

Garages: 3

Width: 87 ft Depth: 82 ft

Foundation: Crawl Space, Slab

Pricing Options Click here...

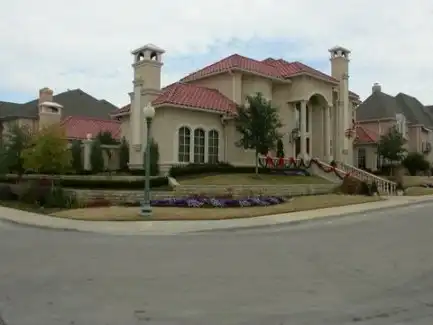

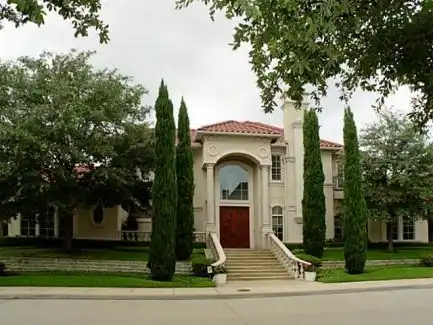

Main Plan Photo
© copyright by designer

Plan: HHF-5342

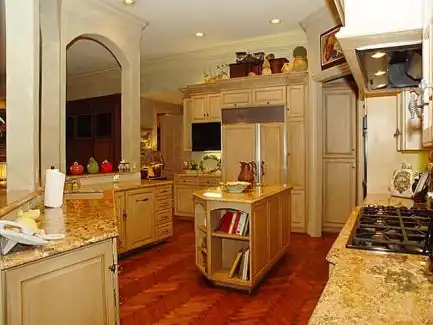

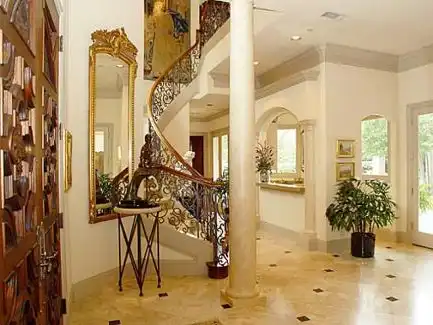

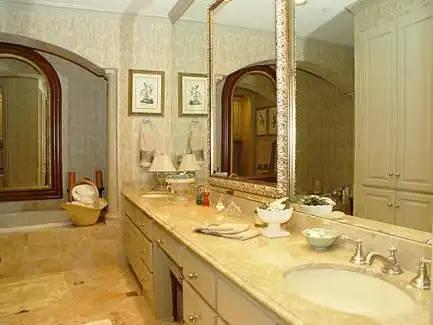

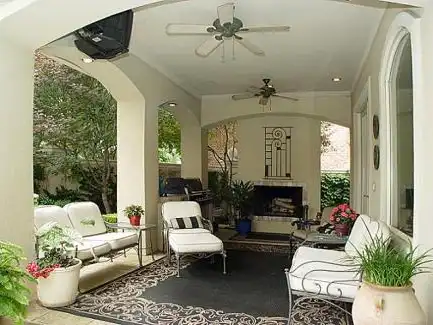

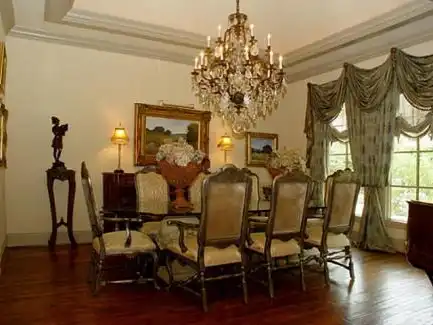

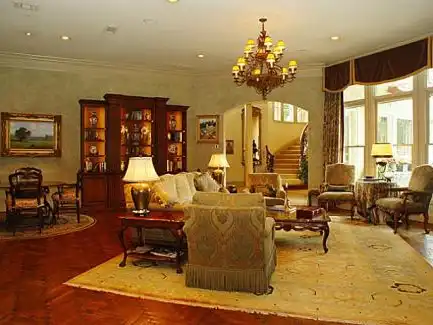

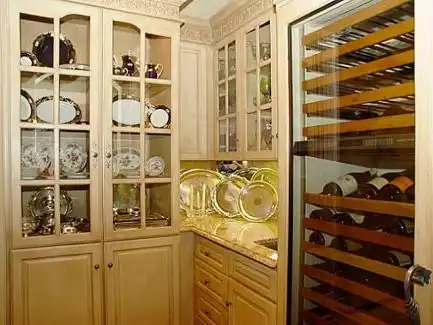

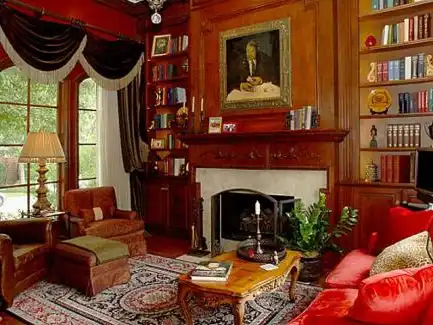

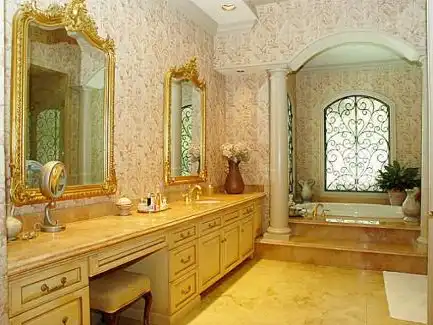

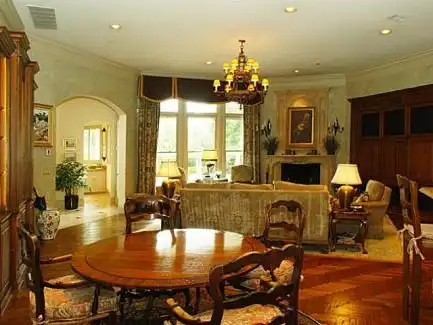

As you walk into this stunning Mediterranean mansion house plan you see the luxury immediately. The foyer is flanked by a study with warming fireplace and the elegant living room. You'll love the openness between the living room, music room and formal dining room with direct access to the butlery, utility room, pantry, and kitchen for ease in serving. The kitchen provides a free-standing island and breakfast bar for sharing with the family room and breakfast area. A built-in desk in the breakfast room is only one of many built-ins throughout this plan. The corner fireplace in the family room makes the area cozy. The luxurious master suite boasts a built-in desk, trey ceiling, bayed window sitting area, lavish bath with his and hers vanities, his and hers private baths with separate shower, whirlpool tub, gym, his and hers closet with a cedar closet in hers'. A one and two-car garage each sit at the rear of this mansion house plan. An elevator sits next to the pantry in the rear or the curved stairs off the foyer in the front. Upstairs a family bedroom with trey ceiling, walk-in closet and master bath shares space with a bonus room, game room, loggia, built-ins, and large guest room that could be converted to an in-law suite. It boasts his and hers vanities, separate shower, tub, trey ceiling and easy access to the balcony.

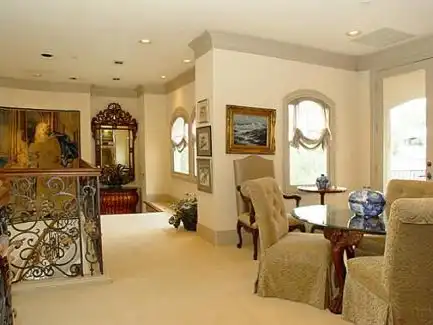

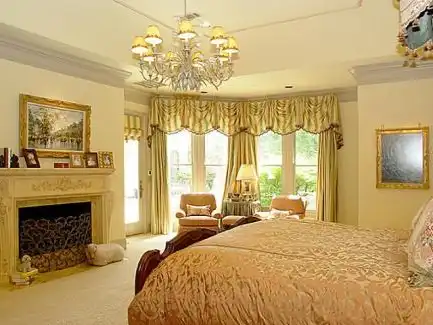

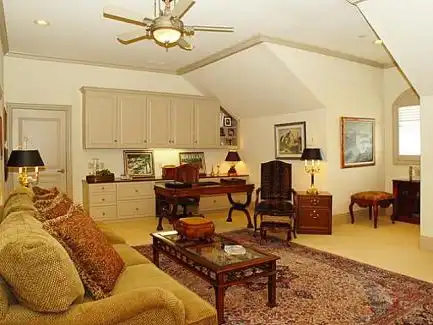

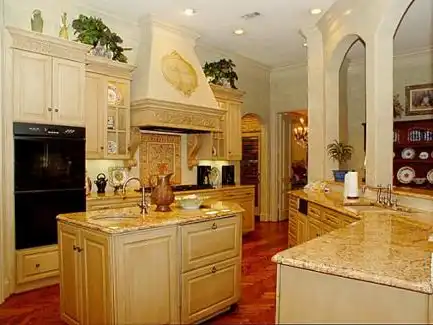

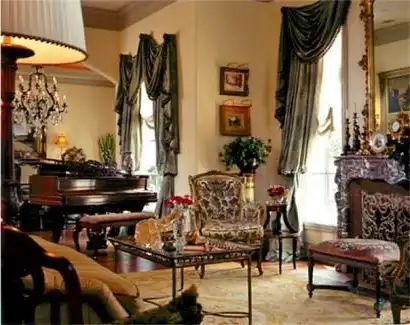

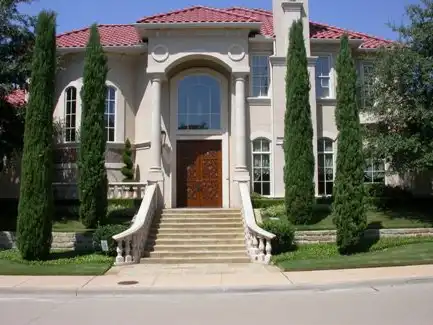

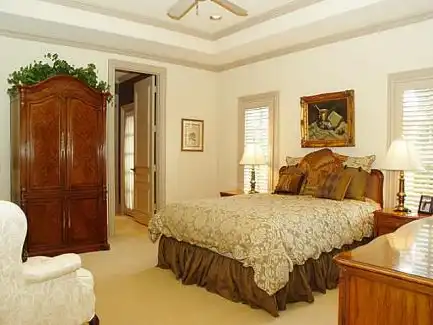

Additional Images
Plan Pricing Packages

 One Study Set    $1,515.00
 Plan PDF Package    $2,420.00
 Five Sets    $2,620.00
 CAD File    $3,630.00

 Slab  $0.00
 Crawl Space  $250.00

 Additional Sets  $150.00
 Artist Rendering  $200.00

 Custom Adult T-shirt  $25.00
Best Price Guarantee, learn more
For more details about our plan packages click here

Email Us   Call Us   Live Chat
Key Features
  • Attached

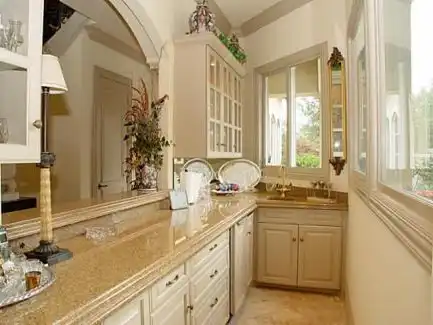

  • Butler's Pantry
  • Exercise Room
  • Family Room
  • Front Porch
  • His and Hers Master Closets
  • Slab
  • Walk-in Closet
Need to make changes?
Call for a free modification quote
or use this quote form
Architect's Preferred Products:
ULTREX® Fiberglass Windows & Doors
Decorative Millwork and Columns
Classic-Craft® American Collection™ Fiberglass Entry Door
Prefinished Hardwood Flooring
Decorative Window Treatments

© copyright by designer
First Floor:

© copyright by designer
Second Floor:

Plan Details
General House Information
Number of Stories:2
Width:87' 0"
Depth:82' 0"
Dwelling Number:Single
Exterior Style
  • Mediterranean
  • European
Number of Rooms
Full Baths:4
Half Baths:1
Finished Square Footage
Main Level:3886 Sq. Ft.
Upper Level: 1472 Sq. Ft.
Total: 5358 Sq. Ft.
Unfinished Square Footage
Garage:822 Sq. Ft.
Bonus Room:480 Sq. Ft.
  • Garage Type:
Garage Size:3
  • Crawl Space
  • Slab
House And Ceiling Heights
First Floor Ceiling:10
Second Floor Ceiling:9
Maximum House Height:35' 0"
Framing Information
Roof Framing:Stick
Exterior Wall Framing:2x4
Roof Pitch
Exterior Wall:0
Interior Wall:0
Number of Rooms
Full Baths:4
Half Baths:1
