Plan: 5358

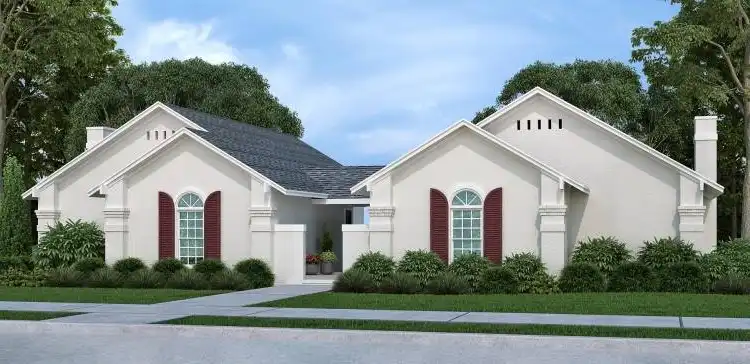

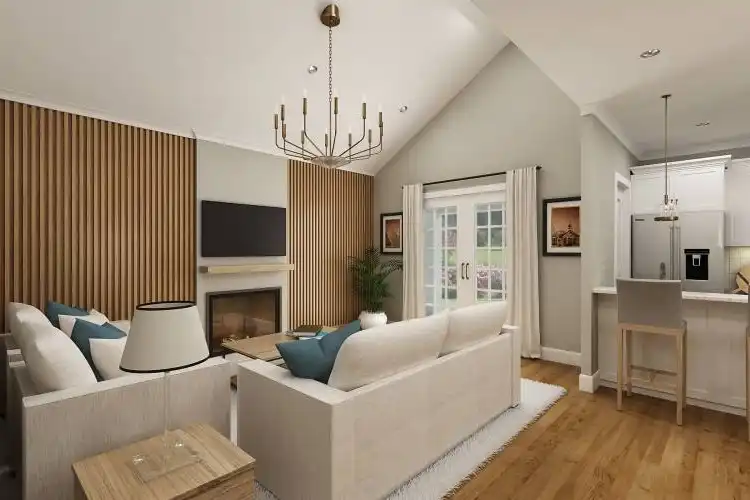

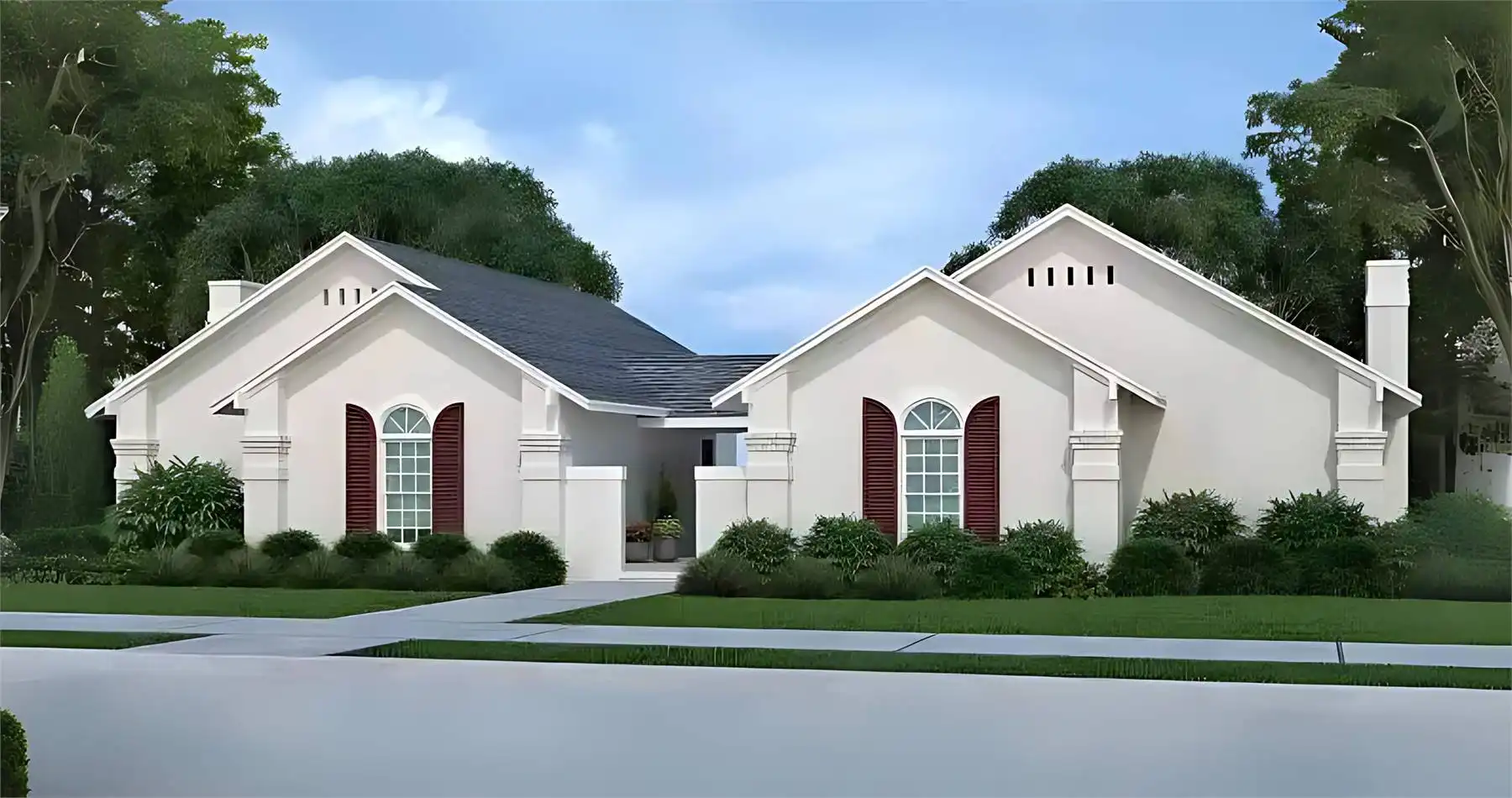

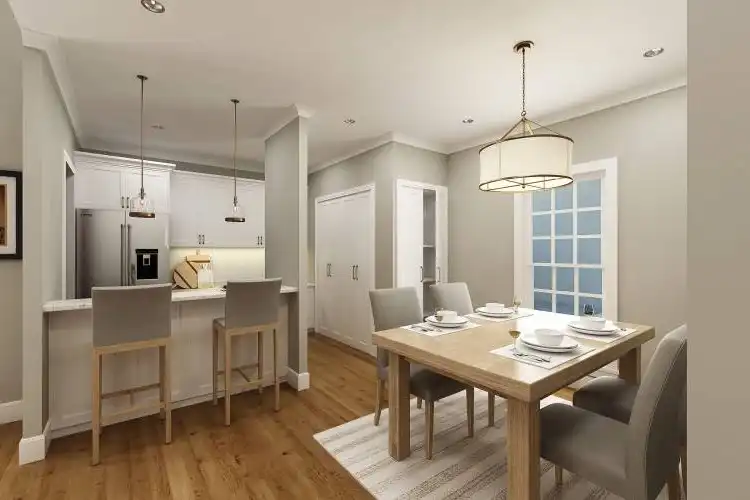

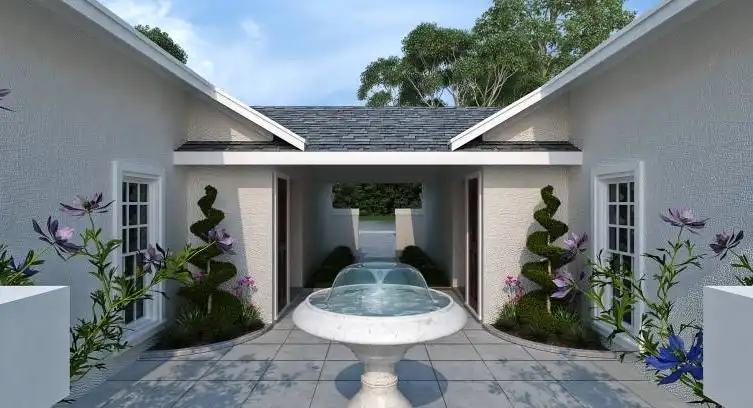

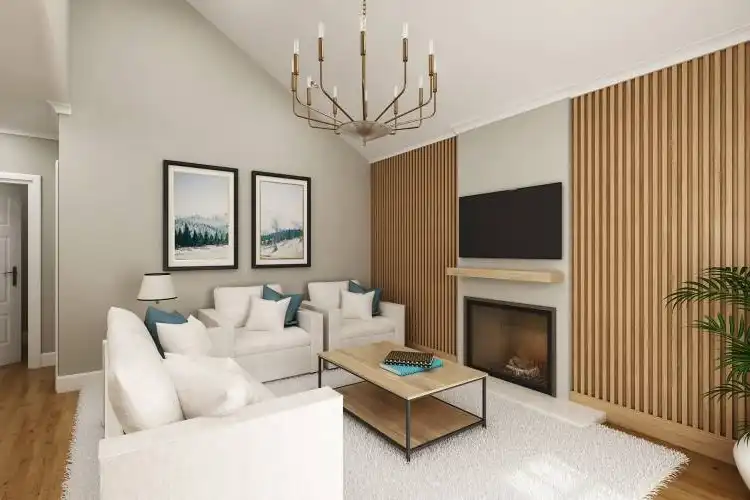

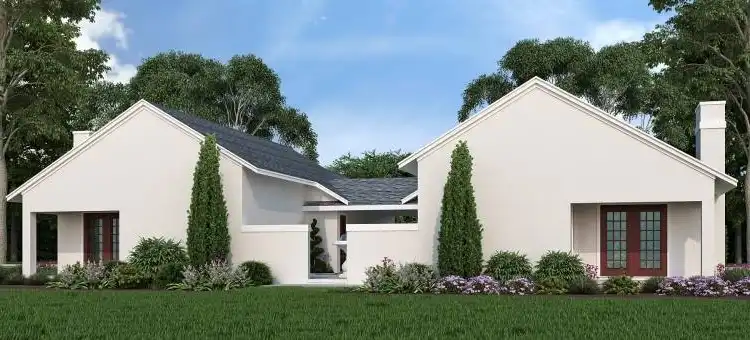

The design of this duplex plan offers a great solution for those seeking a home for themselves plus rental income live in one unit and rent out the other. They also make great retirement homes or the perfect solution for those who are attending to elderly parents. The exterior is especially designed to create the look of a single-family home. The central courtyard makes an impressive focal point of entry while the covered rear porches provide a private outdoor living space. The living room is bright and open to the kitchen and dining and includes a wood burning fireplace and sloped beamed ceiling. A walk-in master closet, twin secondary bedroom closets, an entry closet and a built in kitchen pantry provides abundant storage. A separate garage plan is available as an option.
Pin It
Similar plans: 5360
More plans by this designer/architect
ShareThis
Purchase Plans
© copyright by designer

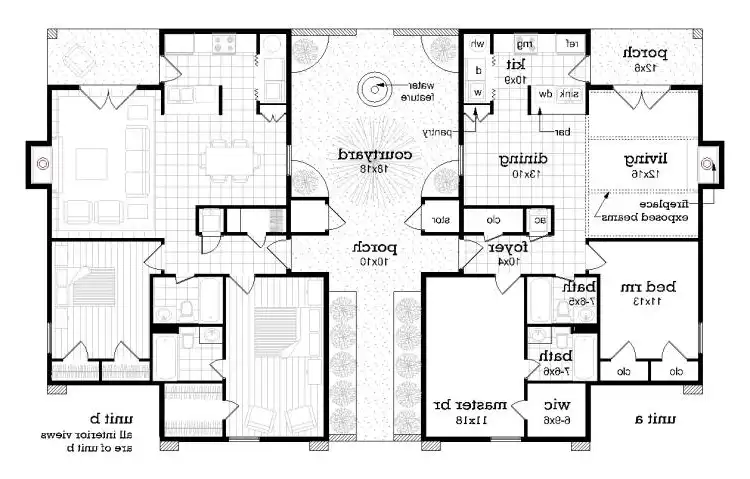

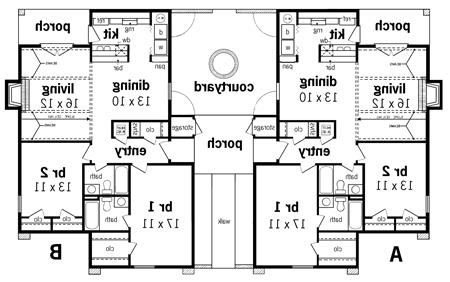

First Floor Plan:




Plan Specification
Total Entire Building: 2,166
Total Living Per Unit: 1,083
Bedrooms: 2
Baths: 2
Garages: 0
Width/Depth: 70 ft / 44 ft
Foundation: Concrete Slab Foundation, Optional Crawl Space Foundation, Optional Custom Foundation Design
Get Your House Plans In Minutes!
NEW PDFs Now! Plan packages available. Simply place your order, electronically sign the license agreement, and receive your PDFs within minutes in your inbox!
House Plan Pricing
PDFs Now! $570.00
$574.00
$594.00
$654.00
$704.00
$754.00
PDFs Now! $754.00
$1,508.00
More details about our plan packages
Foundation Options
PDFs Now! available $0.00
PDFs Now! available $90.00
$300.00
Additional Plan Options
$50.00
$100.00
PDFs Now! available $70.00
$15.00
$60.00
Best Price Guarantee, learn more
Live Chat  |  Email
Key Features
  • Laundry 1st Fl
  • None
  • Rear Porch
Plan Details

General House Information
Number of Stories:1
Width:70' 0"
Depth:44' 0"
Dwelling Number:Duplex

Exterior Style
  • Traditional
  • Mediterranean
  • European
  • Florida
  • Texas

Facade
  • Stucco

Number of Rooms
Bedrooms:2
Full Baths:2

Finished Square Footage
Total: 1083 Sq. Ft.

Unfinished Square Footage
Storage:16 Sq. Ft.
Porch:138 Sq. Ft.

Garage
  • Garage Type:
Garage Size:0

Foundation
  • Concrete Slab Foundation
  • Optional Crawl Space Foundation
  • Optional Custom Foundation Design

House And Ceiling Heights
First Floor Ceiling:8 & 12
Maximum House Height:17' 0"

Framing Information
Roof Framing:Stick
Exterior Wall Framing:2x6

Roof Pitch
Primary:7:12

INSULATION
Exterior Wall:19
Interior Wall:0
Ceiling:38
Floor:19

Number of Rooms
Bedrooms:2
Full Baths:2
