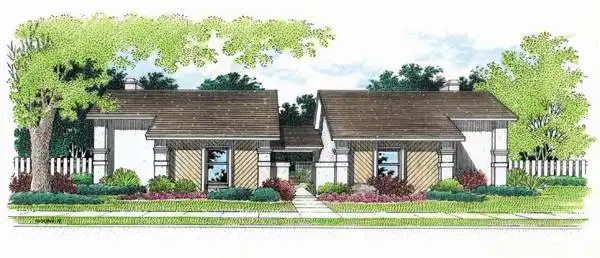

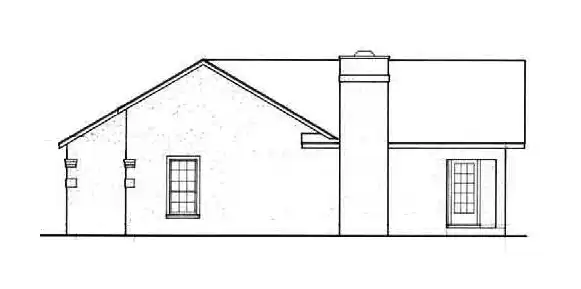

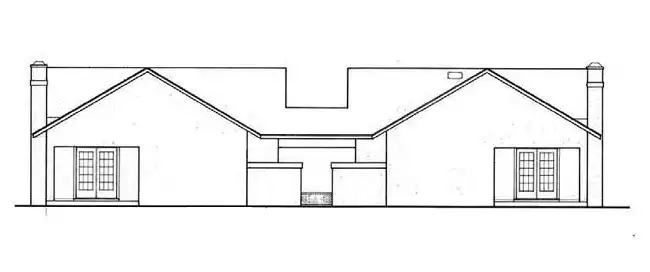

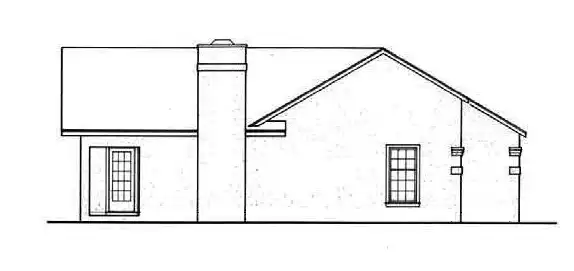

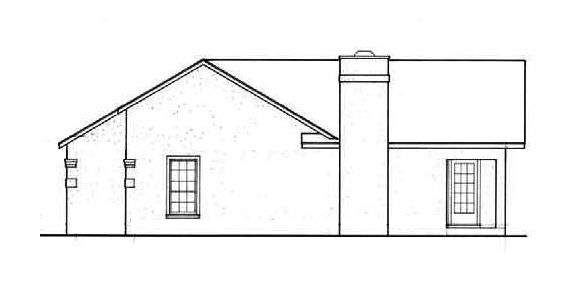

Front Rendering Right Side Elevation Left side elevation Garage front elevation Rear Elevation First Floor Plan Optional Garage Plan
© copyright by designer

Plan: 5360

Plan Specification
Total Entire Building: 2,166
Total Living Per Unit: 1,083
Bedrooms: 2
Baths: 2 Half: 0
Garages: 0
Width/Depth: 70 ft / 44 ft
Foundation: Concrete Slab Foundation, Optional Crawl Space Foundation, Optional Custom Foundation Design
Pin It
© copyright by designer
First Floor Plan:
First Floor Plan
Need to make changes?
Call for a free modification quote
877-895-5299 or LIVE CHAT NOW
or use this quote form
© copyright by designer

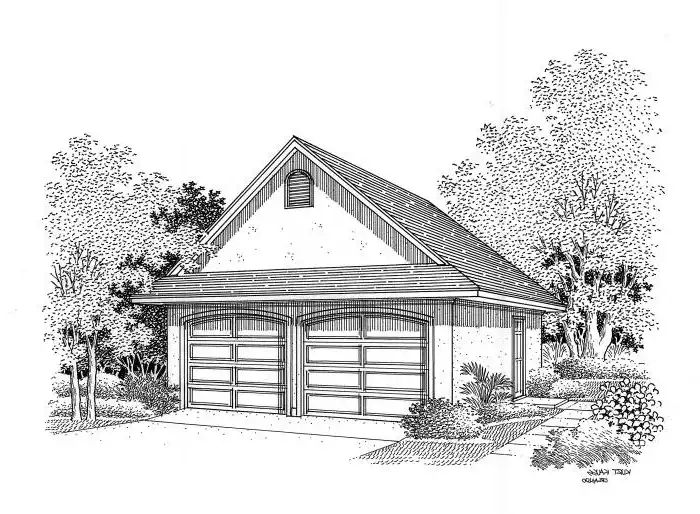

Optional Garage Plan:
Optional Garage Plan
Similar plans: 5358
More plans by this designer/architect
ShareThis
Add to Favorites
Purchase Plans
PLAN DESCRIPTION The central courtyard makes an impressive focal point of entry while the covered rear porches provide a private outdoor living space. The living room is bright and open to the kitchen and dining and includes a wood burning fireplace and sloped beamed ceiling. A walk-in master closet, twin secondary bedroom closets, an entry closet and a built in kitchen pantry provides abundant storage. An optional detached garage plan is available. The garage can be positioned to best suit the lot size and layout.
Get Your House Plans In Minutes!
NEW PDFs Now! Plan packages available. Simply place your order, electronically sign the license agreement, and receive your PDFs within minutes in your inbox!
House Plan Pricing
PDFs Now! $570.00
$574.00
$594.00
$654.00
$704.00
$754.00
PDFs Now! $754.00
$1,508.00
More details about our plan packages
Foundation Options
PDFs Now! available $0.00
PDFs Now! available $90.00
$300.00
Additional Plan Options
$50.00
$100.00
PDFs Now! available $70.00
$15.00
$60.00
Best Price Guarantee, learn more
Live Chat  |  Email
Key Features
• None
• Rear Porch
Plan Details
General House Information
1
Number of Stories:
70' 0"
Width:
44' 0"
Depth:
Duplex
Dwelling Number:
Exterior Style
Modern
Cottage
Florida
Facade
Siding
Stucco
Number of Rooms
2
Bedrooms:
2
Full Baths:
Finished Square Footage
1,083 Sq. Ft.
Total:
Unfinished Square Footage
16 Sq. Ft.
Storage:
138 Sq. Ft.
Porch:
GARAGE
0
Garage Size:
Foundation
Concrete Slab Foundation
Optional Crawl Space Foundation
Optional Custom Foundation Design
House And Ceiling Heights
8 & 12
First Floor Ceiling:
17' 0"
Maximum House Height:
Framing Information
Stick
Roof Framing:
2x6
Exterior Wall Framing:
Roof Pitch
7:12
Primary:
Insulation (R)
19
Exterior Wall:
0
Interior Wall:
38
Ceiling:
19
Floor:
Number of Rooms
2
Bedrooms:
2
Full Baths:
