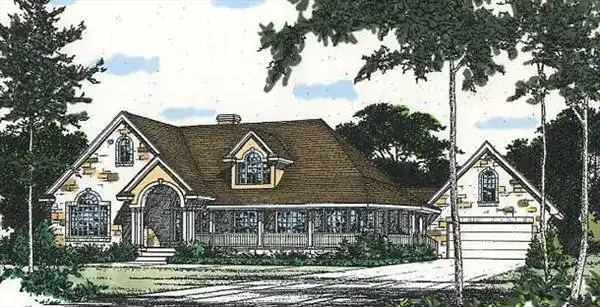

House Plan: DFD-5421

See All 1 Photos > (photographs may reflect modified homes)
© copyright by designer
SQ FT
2,481
BEDS
4
BATHS
3
STORIES
1
CARS
2
HOUSE PLANS SALE
START AT  $1,228.25
For questions and help, live chat, email or call us at 877-895-5299
Floor Plans
Click to Zoom In on Floor Plan

House Plan 5421
House Plan Pricing
STEP 1 Select Your Package

PDF Single Build


Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

PDF Single Build $1,445
Immediate Delivery!
States N/A: TX,NM,LA,AL,TN
Most recommended package

CAD Single Build


2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

CAD Single Build $2,445

States N/A: TX,NM,LA
2D electronic editable computer files
STEP 2 Need To Reverse This Plan?
STEP 3 CHOOSE YOUR FOUNDATION
STEP 4 OPTIONAL ADD-ONS
Subtotal
$1445
FREE SHIPPING
IMPORTANT NOTE: Due to state regulations, the CAD version may not be sold to residents of AL, TN, TX, NM and LA. If residing in any of the aforementioned states, the PDF version does not come with a release to make plan modifications. Modifications can be provided by the original architect. Please contact us for more information.

Plan Details
See All Details
Finished Square Footage
2,481 Sq. Ft.
Main Level:
2,481 Sq. Ft.
Total:
Room Details
4
Bedrooms:
3
Full Baths:
General House Information
1
Number of Stories:
88' 3"
Width:
60' 0"
Depth:
Single
Dwelling Number:
Unfinished Square Footage
513 Sq. Ft.
Garage:
534 Sq. Ft.
Porch:
267 Sq. Ft.
Deck:
281 Sq. Ft.
Bonus Room:
GARAGE
Side
Garage Location:
2
Garage Size:
Exterior Style
Country
Southern
Traditional
Collections
In-Law Suite
Master Suites
Old House Classics
Outdoor Living
PDFs Fast!
Pet Lovers
Split Bedroom
Foundation
Basement
Crawl Space
Slab
Framing Information
Stick
Roof Framing:
2x4
Exterior Wall Framing:
Roof Pitch
10/12
Primary:
12/12
Secondary:
12/12
Dormer:
6/12
Porch:
Roof Load
20
Live:
10
Dead:
Insulation (R)
13
Exterior Wall:
0
Interior Wall:
30
Ceiling:
0
Floor:
House And Ceiling Heights
9
First Floor Ceiling:
8/Slope
Second Floor Ceiling:
23' 2"
Maximum House Height:
Facade
Stone
Stucco
Stucco/Stone
Key Features
Attached
Basement
Bonus Room
Covered Front Porch
Covered Rear Porch
Crawlspace
Deck
Dining Room
Double Vanity Sink
Fireplace
Foyer
Front Porch
Front-entry
Guest Suite
In-law Suite
Kitchen Island
Laundry 1st Fl
Master Bdrm Main Floor
Mud Room
Nook / Breakfast Area
Peninsula / Eating Bar
Rear Porch
Rec Room
Separate Tub and Shower
Slab
Split Bedrooms
Unfinished Space
Vaulted Ceilings
Walk-in Closet
Wraparound Porch
